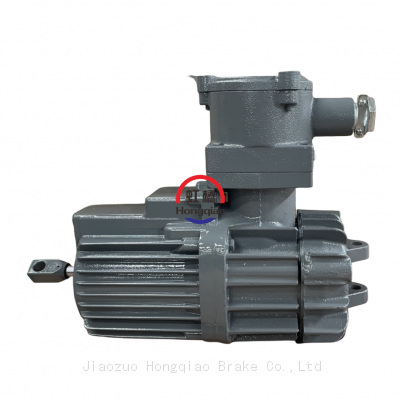

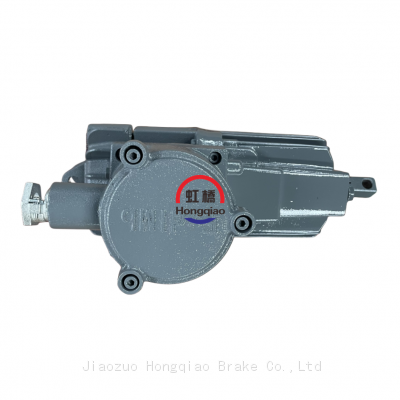

Dust Explosion- proof Electro Hydraulic Thruster
- 30000 Piece / Pieces per Month
- Shanghai port/Qingdao port
- T/T
- 10 days
You May Like
Product Details
Brand Name | Hongqiao | Place of Origin | China | |
Model Number | BED |
Product Description
BEd mold, the explosion-proof electric hydraulic thruster, which is the crystal produced by EMG company of Germany. It is mainly used as the driving device of the electric hydraulic block brake, and it can also complete the rapid movement in the form of reciprocating, circular, swinging, etc. through the lever mechanism.
Moreover, it is suitable for lifting, transportation, metallurgy, mining, port, construction and other industries.
Configuration
BEd series
A) scientific basis for introduction
Essential components: flameproof motor, flange, impeller, piston
Features: smooth in action; concentrative in abrasive wear; less in power consumption
Instruction for use: When the power supply of the thruster is connected, the rotation of the motor drives the impeller to produce pressure oil, which pushes the piston and connecting rod to run upward until the preset stroke is reached and then maintains its thrust.
Secondly, when the power supply is disconnected, the motor and impeller stop rotating, and then
no pressure oil is produced.
Lastly, the piston and connecting rod return to their original position under the action of external force.
Packaging type: The packaging mode is unrestricted, e.g. plastic woven sack packaging, plastic film packaging, bucket packaging or can packaging etc.
B) FAQ section: the following entry has been updated in regard of explosion-proof electrical device.
Extra service: Since the goods are available in different qualities, we will add additional functions of time control valve, screw and travel switch according to the needs of users;
In addition, we will try our best to help the user to check whether the oil deteriorates in the process of use, so as to ensure that the oil chamber is free of impurities;
Consequently, you are fully qualified to pass opinions on the variety and efficiency of this merchandise, which will help put this mode to productive use.
c) Technical Data
Type | Rated thrust | Rated trip (mm) | Rated voltage | Rated current | Power | Rated spring force | Working frequency | Action time(s) | Weight (kg) | |||
(dl) | (dllCT4) | (dl) | (dllCT4) | (dl) | (dllCT4) | |||||||
Thruster with short-trip | ||||||||||||
BEd30/5 | 300 | 50 | 380 | 0.43 | 180 | 180 | 270 | 1500 | 0.37 | 0.36 | 32 | 27 |
BEd50/6 | 500 | 60 | 380 | 1.2 | 240 | 275 | 460 | 1500 | 0.62 | 0.61 | 47 | 37 |
BEd80/6 | 800 | 60 | 380 | 1.2 | 290 | 280 | 750 | 1500 | 0.5 | 0.49 | 48 | 38 |
BEd121/6 | 1250 | 60 | 380 | 1.3 | 365 | 310 | 1200 | 1500 | 0.58 | 0.54 | 68 | 50 |
BEd201/6 | 2000 | 60 | 380 | 1.3 | 375 | 385 | 1900 | 1500 | 0.57 | 0.46 | 68 | 50 |
BEd301/6 | 3000 | 60 | 380 | 1.3 | 445 | 470 | 2700 | 1500 | 0.74 | 0.44 | 70 | 50 |
Thruster with long-trip | ||||||||||||
BEd50/12 | 500 | 120 | 380 | 1.2 | 240 | 275 | —— | 900 | 1.02 | 0.72 | 57 | 40 |
BEd80/12 | 800 | 120 | 380 | 1.2 | 290 | 280 | —— | 900 | 0.83 | 0.65 | 58 | 41 |
BEd121/12 | 1250 | 120 | 380 | 1.3 | 365 | 310 | —— | 900 | 0.99 | 0.81 | 68 | 50 |
BEd201/12 | 2000 | 120 | 380 | 1.3 | 375 | 385 | —— | 900 | 1.10 | 0.65 | 68 | 50 |
BEd301/12 | 3000 | 120 | 380 | 1.3 | 445 | 470 | —— | 900 | 1.31 | 0.64 | 70 | 00001.
00002. |
d) Dimension table (mm)
Type | A | B | C | D | E | F | G | H | K | L | M | N | 〇 | P | 〇 | R | S | T | U | V | W |
BEd30/5 | 410 | 50 | 34 | 15 | 16 | 25 | 16 | 18 | 160 | 80 | 80 | 40 | 270 | 16 | 85 | 55 | 75 | 98 | 20 | 15 | |
BEd50/6 | 490 | 60 | 36 | 18 | 20 | 30 | 20 | 23 | 190 | 95 | 120 | 60 | 285 | 20 | 85 | 55 | 75 | 100 | 22 | 15 | |
BEd80/6 | 490 | 60 | 36 | 18 | 20 | 30 | 20 | 23 | 190 | 95 | 120 | 60 | 285 | 20 | 85 | 55 | 75 | 100 | 22 | 15 | |
BEd50/12 | 570 | 120 | 36 | 18 | 20 | 30 | 20 | 23 | 190 | 95 | 120 | 60 | 285 | 20 | |||||||
BEd80/12 | 570 | 120 | 36 | 18 | 20 | 30 | 20 | 23 | 190 | 95 | 120 | 60 | 285 | 20 | |||||||
BEd121/6 | 690 | 60 | 38 | 25 | 25 | 40 | 25 | 35 | 240 | 112 | 90 | 40 | 324 | 25 | 130 | 80 | 120 | 147 | 35 | 20 | 130 |
BEd201/6 | 690 | 60 | 38 | 25 | 25 | 40 | 25 | 35 | 240 | 112 | 90 | 40 | 324 | 25 | 130 | 80 | 120 | 147 | 35 | 20 | 130 |
BEd301/6 | 690 | 60 | 38 | 25 | 25 | 40 | 25 | 35 | 240 | 112 | 90 | 40 | 324 | 25 | 130 | 80 | 120 | 147 | 35 | 20 | 130 |
BEd121/12 | 750 | 120 | 38 | 25 | 25 | 40 | 25 | 35 | 240 | 112 | 90 | 40 | 324 | 25 | 190 | ||||||
BEd201/12 | 750 | 120 | 38 | 25 | 25 | 40 | 25 | 35 | 240 | 112 | 90 | 40 | 324 | 25 | 190 | ||||||
BEd301/12 | 750 | 120 | 38 | 25 | 25 | 40 | 25 | 35 | 240 | 112 | 90 | 40 | 324 | 25 | 190 |
Note: the right to change the specific model, structure and overall dimension is reserved.
We take guarantee for performance of our molding parts, and hope you can give us an indication concerning degree of your satisfaction.
