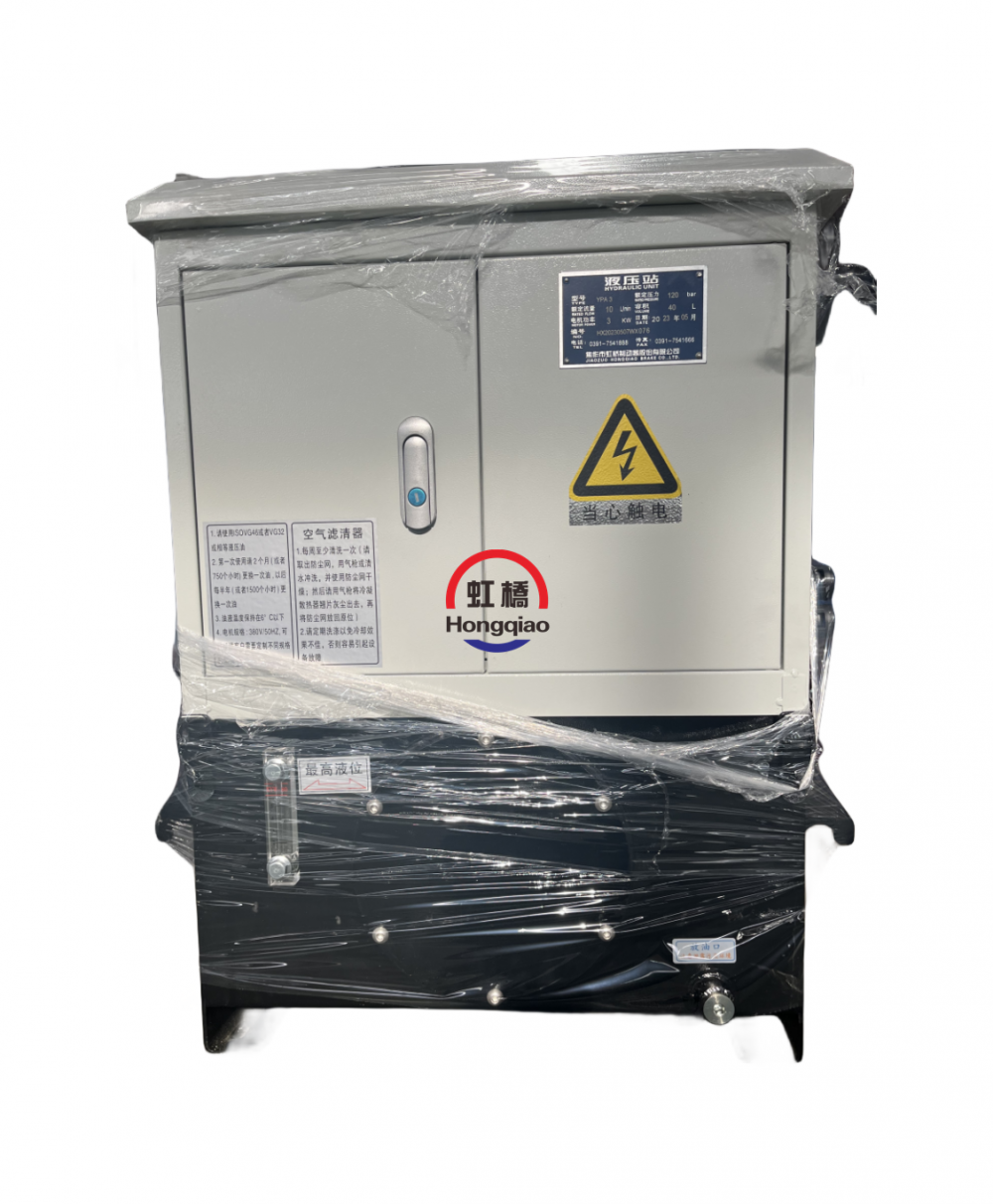

Hydraulic power unit YPA series matched with disc/safety brake or rail clamp

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai port/Qingdao port
Payment TermsT/T
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Hongqiao		Place of Origin	China
Model Number	YPA

Product Description

1) Specific units:

    Hydraulic pump, driving motor, oil tank, directional valve, throttle valve and relief valve.
2) Service conditions:
  Ambient temperature: 0 ºC - 40 ºC.
Working power supply of motor: three-phase, AC380V, 50HZ;
Pump station control power supply: AC220V, 50HZ (if other voltage is required, please specify in advance when ordering).
3) Sphere of application:
  The compatible drive matched to the rail clamp
The compatible drive for the wheel brake

4) Elaborate characteristics:
1. The system have fuction of pressure compensation;
2. Emergency power source with hand pump in special conditions;
3. Advanced in hydraulic components

5) Extraordinary selling points:
Continuous recommendation of new products
Professional quotation with flexible payment term
Sophisticatedhird party inspection
Attentive after-sale service

6) Technical data:

Model	Rated pressure MPa	Flow L/m in	Power of motor Kw	volume of oil tank L	Motor power supply
YPA2.2-15-4	5-15	4	2.2	20	AC380V 50HZ
YPA3-15-8	5-15	8	3	40	AC380V 50HZ
YPA4-20-8	10-20	8	4	40	AC380V 50HZ
YPA4-10-20	5-10	20	4	40	AC380V 50HZ
YPA5.5-15-20	10-20	20	7.5	80	AC380V 50HZ
