Brand: HUAN YU
Model: HY - 50
Drilling depth: 10 - 50 meters
Weight: 280KG
Hole diameter(Soil): 110-200mm
Hole diameter(Rock): 75 - 110mm
EXW Price(RMB): ¥5800
Can be customized on request

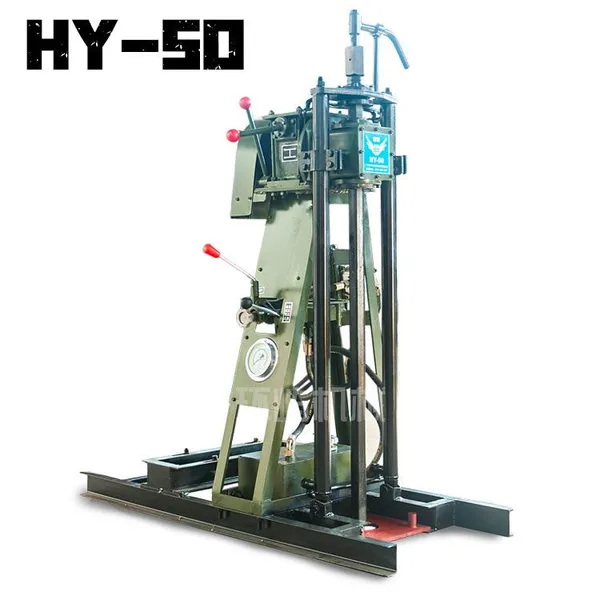

Type 50 drilling rig is a high and medium speed drilling rig with hydraulic feed. Compared with other direct drilling rigs, it has the advantages of light weight, simple structure, convenient movement, fast drilling speed, and large core sampling diameter. It is currently common in China Hydraulic drilling rig. Particularly suitable for coring engineering and moving of special difficult terrain such as mountains, hills, rivers, etc. It is also suitable for engineering geological survey of railways, hydropower, transportation, bridges, dam foundations and other buildings; geological core drilling, physical survey, grouting Holes, wells, etc.
Weight: 280KG
Size(mm): 1400*600*1600
Diesel engine: R180 diesel engine (8 horsepower)
This HY-50 type drilling rig is a basic model, suitable for construction, no need to drill tower, directly connected to the drilling tool and drill pipe can be started, easy to operate, more suitable for small-diameter water wells or core use.
Additional: the crawler chassis walking function can be added as needed, which is convenient for moving and reducing labor costs
1. With hydraulic automatic feed mechanism, improve drilling efficiency and reduce physical labor of workers.

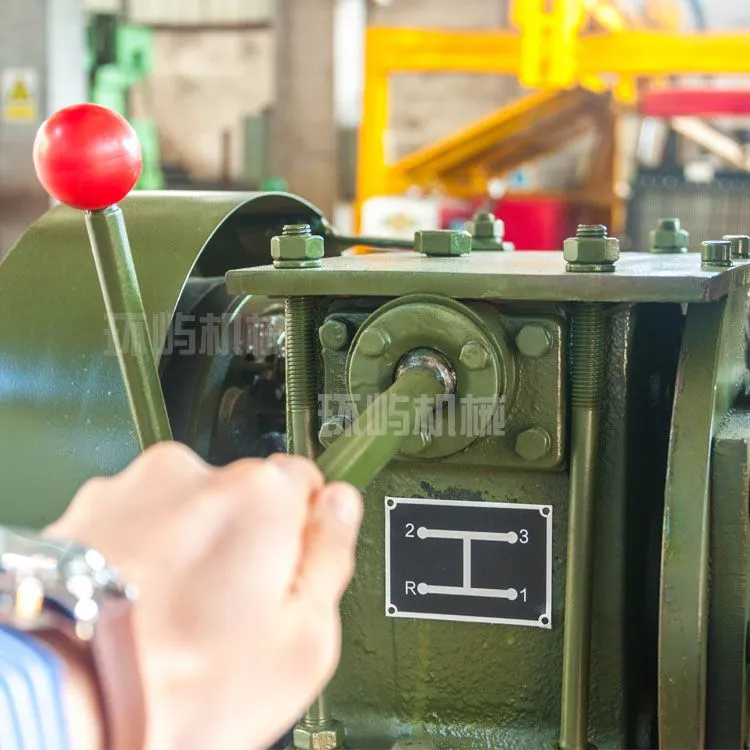

2. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping the machine. The operation is convenient, safe and reliable.
For the family of water well or core drilling rig
| Technological Data of Drilling Rigs (HuanYu) | |
| Model | HY-50 |
| Dilling depth(m) | 50 |
| Drilling rod diameter(mm) | φ42 |
| Head angle range | 75~90° |
| Spindle speed(dmin) | 142,285,570 r/min |
| Spindle stroke(mm) | 1000 |
| Steel wire rope diameter(mm) | 10# |
| Weight(engine not included)(kg) | 280 kg |
| Drill size(L x W x H)(mm) | 1400 x 600 x1600 |
| Diesel engine | R180 (5.8KW) |
