Portable small core drilling rig

Specifications

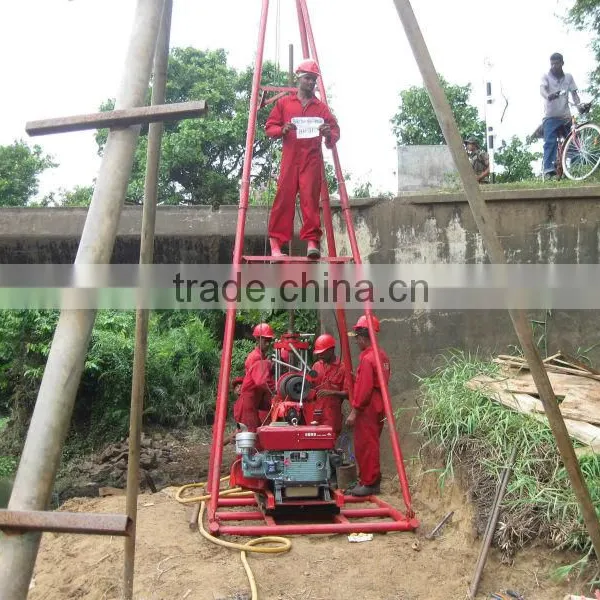

Portable small core drilling rig
quick drilling, do SPT test, take soil/rock core sample

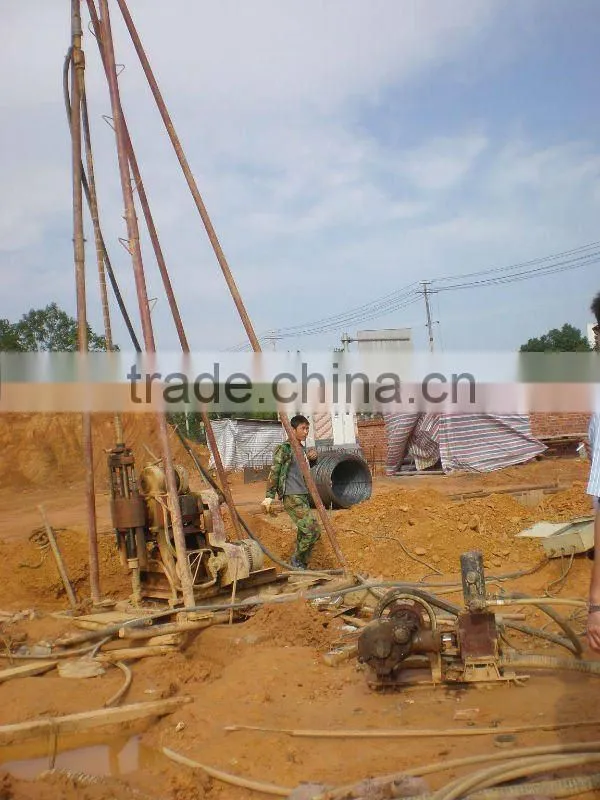

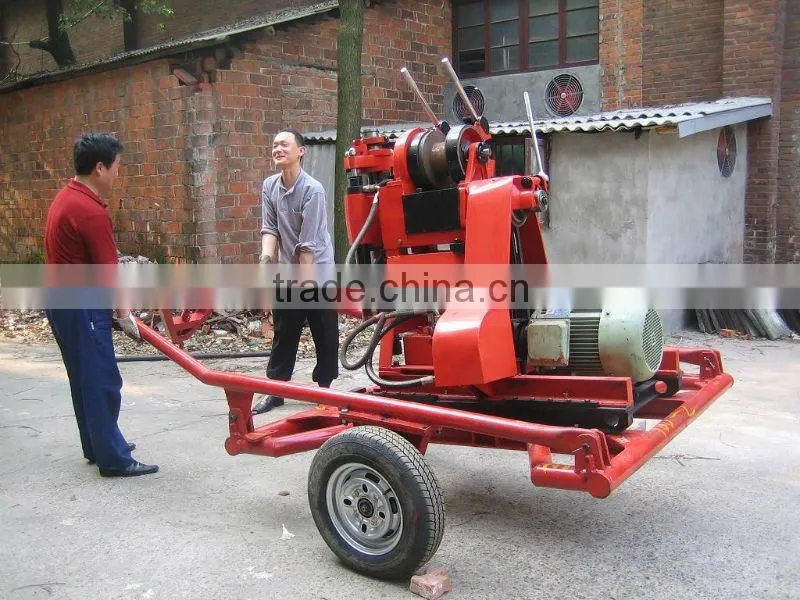

Portable small core drilling rig



Brief introduction of company:

1.50 years professional manufacture

2. Certificate: ISO9001:2008

3. Export to:  Africa, the Middle East, South America, Asia,

                     Countries: South Africa, Zambia, Sudan, Iran, Malaysia, Indonesia,South Korea, Costa Rica,Venezuela etc.



Historical view of Portable small core drilling rig (XUL-100):

1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.

2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.



Features of  Portable small core drilling rig (XUL-100):

1) Advanced capability and high reliability.

2) Excellent design and easy operation.

3) Alternative-designed unit constructions.

4) Accessories in common use.



Use of  Portable small core drilling rig (XUL-100):

for geotechnical investigation, exploring, prospecting, water well drilling;Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.



 Technological Data of  Portable small core drilling rig (XUL-100)

Model	Mining Exploration Drilling Rig(XUL-100)
Drilling depth( m)	100
Drilling rod diameter.(mm)	Φ42
Head angle range	360
Movable cylinder stroke (mm)	300
Spindle speed( r/min)	144 264 590 1083
Spindle hole diameter( mm)	Φ54
Spindle output torque max(N.M)	800
Spindle stroke(mm)	370
Lifting power max( KN)	30
Driving force max(KN)	23
Lifting speed( m/s)	0.36 0.7 1.49 2.9
Lifting capacity(single) max(KN)	10
Steel wire rope diameter (mm)	11
Mode of chuck	Hand lever chuck
Weight(power unit excepted)(Kg)	550
Overall dimensions(mm)	1200*650*1300
Diesel engine model	Zs1100 ( 12.1KW)
Electromotor model	Y160M-4 ( 11KW)
