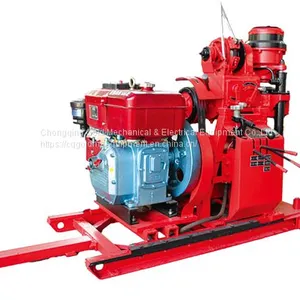

Light & Small Core Drilling Rig Shallow Hole Drilling Machine
- 1000 Set / Sets per Month
- Shanghai, Ningbo, Shenzhen, Guangzhou etc.
- T/T L/C D/P D/A PayPal Other
- 7 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | GOLD | Place of Origin: | China | Model Number: | TPY-30 |
| Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year | Weight: | 240kg | Dimension(L*W*H): | 1270*624*890mm |
| Power Type: | Diesel | Voltage: | 220/380V | Usage: | Coal |
| Condition: | New | Power(W): | 6.25kw |
Product Description
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Water Level Meter; Borehole Drilling Equipment&Accessory and Geodetic Surveying Instrument.

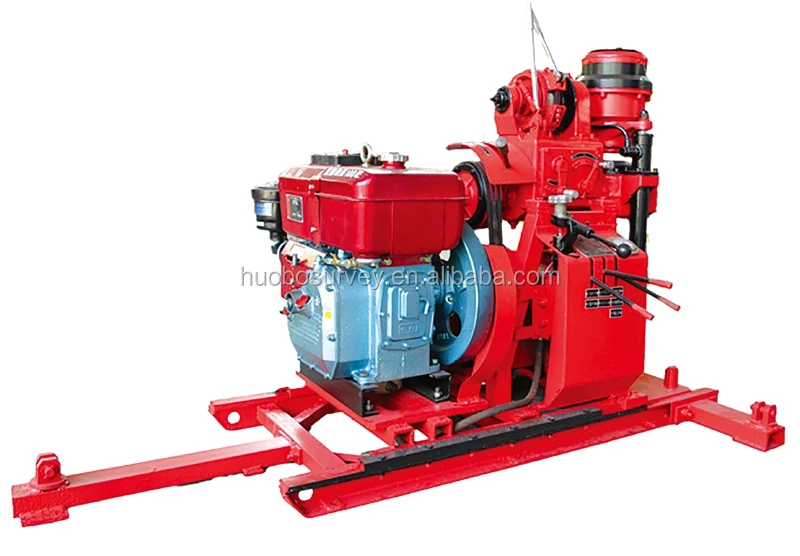

Light & Small Core Drilling Rig Shallow Hole Drilling Machine

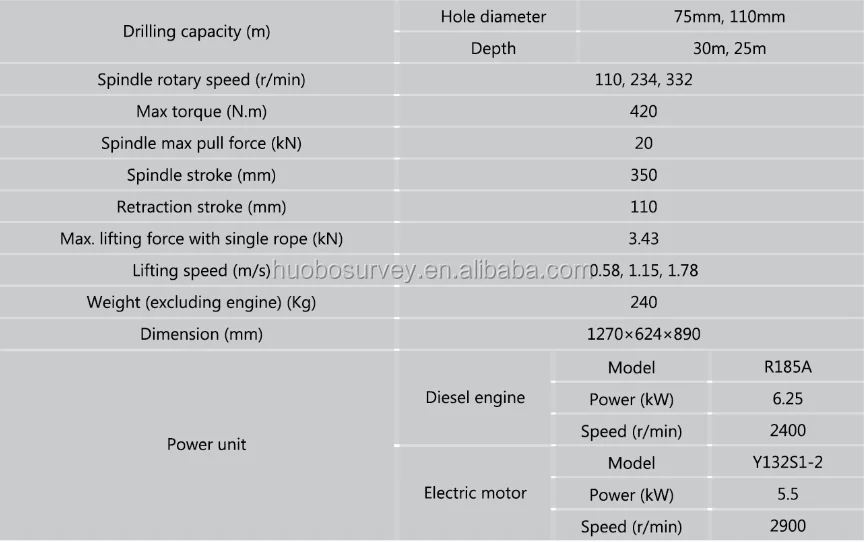

Technical Specification
Application
TPY-30 small drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.
Features
1. Light, good detachability, easy moving, suitable for mountainous area.
2. Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.
3. Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
4. Perfect performances, simple and compact design, easy operation.
5. Largely powered, reasonable speed range, suitable for various drilling methods.
6. Equipped with light and detachable aluminium alloy derrick.

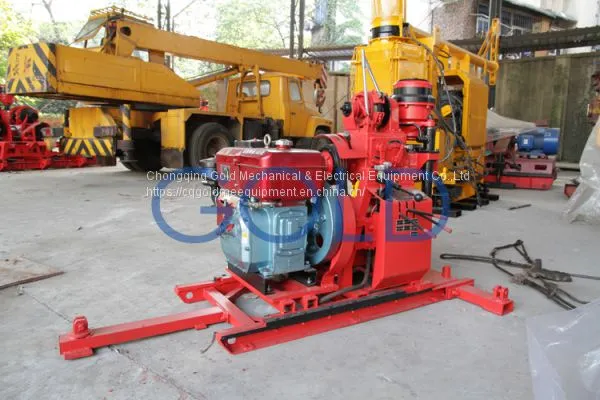

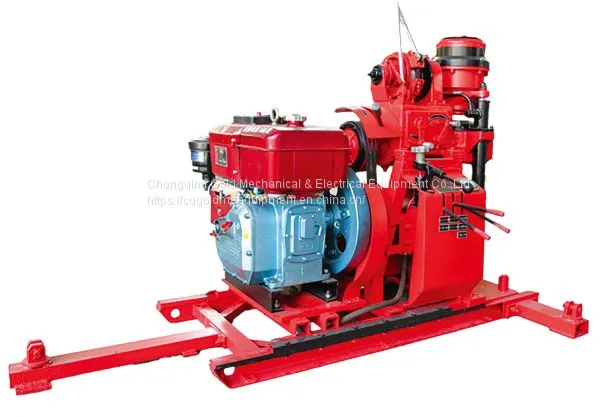

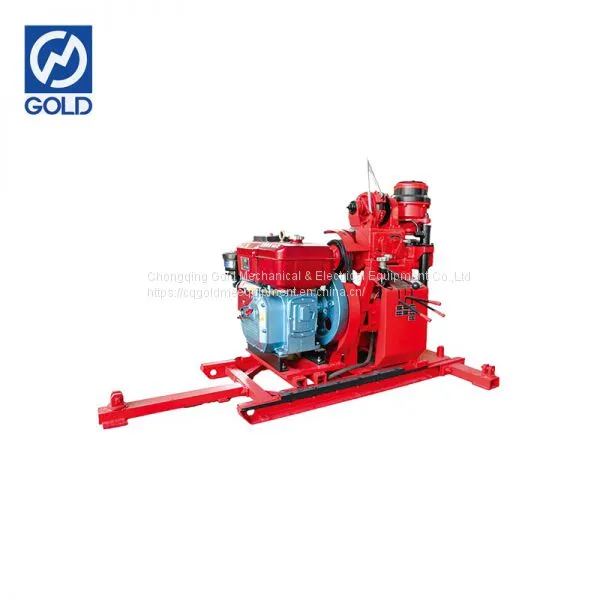

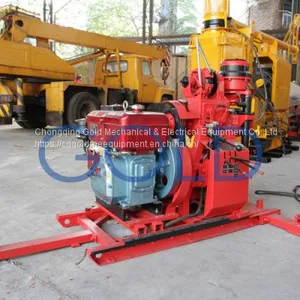

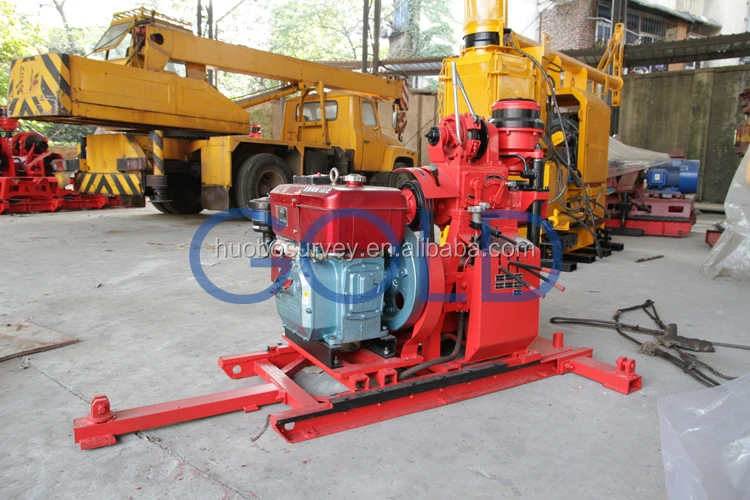

Product Show
