Wheel Crane 192.32.2500.990.41.1502 Three Row Roller Bearing Slewing Ring

Wheel Crane 192.32.2500.990.41.1502 Three Row Roller Bearing Slewing Ring photo-1
Wheel Crane 192.32.2500.990.41.1502 Three Row Roller Bearing Slewing Ring photo-2

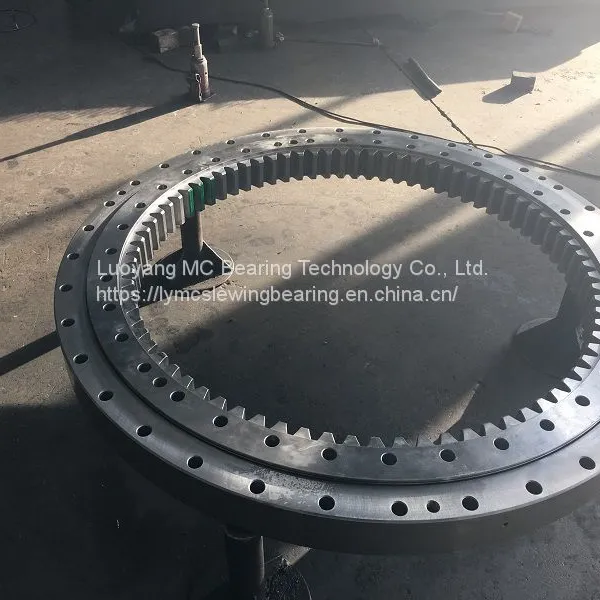

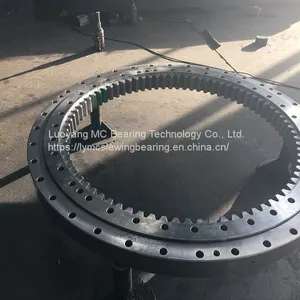

Wheel Crane 192.32.2500.990.41.1502 Three Row Roller Bearing Slewing Ring photo-3
US$ 300 - 2000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
192.32.2500.990.41.1502
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao, shanghai, tianjin, ningbo, guangzhou
Delivery Detail:
15 days
Brand Name LYMC
Place of Origin China
Model Number 192.32.2500.990.41.1502
Feature Other, three row roller slewing bearing
Seals Type open
Outside Diameter 2178, 2718
Bore Size 139, 181
Gear Options Internal Gear Only
wheel crane 192.32.2500.990.41.1502 three row roller bearing slewing ring

Material:42crmo/50mn/custom

structure:single row cross roller bearing

Weight:2210kgs

Da(Outer diameter):2718mm

Di(Inner diameter):2178mm

H(Overall height):181mm

La(External bolt circle dia.):2640mm

Li(Internal bolt circle dia.):2345mm

n(Number of bolts holes per hole circle):44

B(Bolt hole diameter):39mm

M(Bolt size):36mm

n1(Number of grease nipples):7

O(Diameter):2459mm

U(Diameter):2470mm

H1(Ring height):139mm

H2(Ring height):172mm

d(Gear P.C.D.):2196mm

M(Module):18mm

z(Number of teeth):122


b(Tooth width):139mm

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Certificated has 3.1,3.2,ABS,CCS.Our team with technical and full experience in the bearing industry. And with a worldwide network, allows us to resolve any bearing issue for you. LYMC bearings are the perfect alternative to the most common and well-known brands.

Three row roller slewing bearing
Three row roller bearing able to bear all kinds of loads at the same time, it is the largest one of the four structural products
with large axle and radial dimensions and firm structure. Especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret,large tonnage truck crane,heavy machinery and so on.

More type we manufacture:

slewing bearing with external gear

191.32.2240.990.41.1502

191.32.2500.990.41.1502

191.32.2800.990.41.1502

191.32.3150.990.41.1502

191.32.3550.990.41.1502

191.32.4000.990.41.1502

slewing bearing with internal gear

192.32.2240.990.41.1502

192.32.2500.990.41.1502

192.32.2800.990.41.1502

192.32.3150.990.41.1502

192.32.3550.990.41.1502

192.32.4000.990.41.1502

Any interests or inquiry, please contact us freely~


Product Tags: three row roller bearing , slewing bearing ring , roller bearing , wheel crane slewing bearing , slewing bearing , slewing ring
