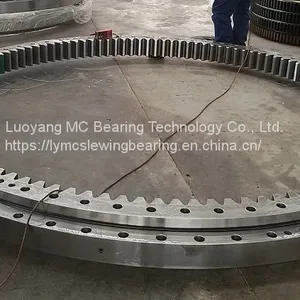

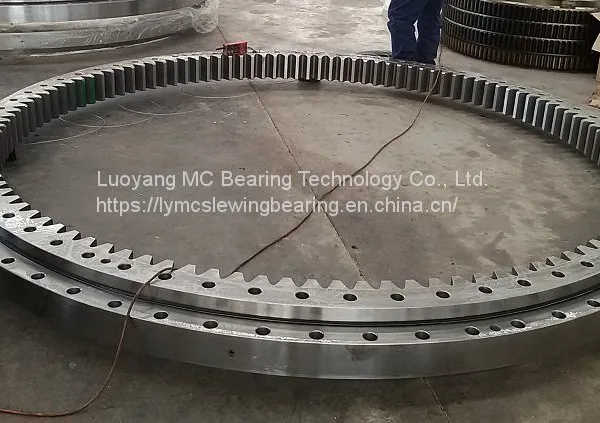

Help CenterLarge OEM 192.32.2240.990.41.1502 Three Row Roller Bearing Ring With Size 2458*1908*181mm
Related Products
-
Heavy Customized 191.40.2800.990.41.1502 Three Row Roller Bearing Ring With External GearUS$ 1800 - 7000MOQ: 1 Piece -
Heavy Customized 191.40.4000.990.41.1502 Three Row Roller Bearing Ring With External GearUS$ 1800 - 7000MOQ: 1 Piece
-
LYMC Wholesale Slewing Bearing 133.45.2000 Three Row Roller Bearing Swing Circle Gear Ring SupplyUS$ 1000 - 7000MOQ: 1 Piece
-
LYMC Wholesale Slewing Bearing 133.40.1400 Three Row Roller Bearing Swing Circle Gear Ring SupplyUS$ 1000 - 7000MOQ: 1 Piece
-
Factory OEM 31-20 1250/2-06700 Machine Tools Thriple Row Roller Bearing Turntable Swing Circle Gear RingUS$ 1000 - 7000MOQ: 1 Piece
Large OEM 192.32.2240.990.41.1502 three row roller bearing ring with size 2458*1908*181mm leads the improvement of the bearing capacity to the height direction of the bearing. Various loads are carried by different raceways and roller groups, so the diameter of the bearing can be greatly reduced under the same load condition. Therefore, the host is more compact, and it is a turntable bearing with high load capacity.
Da:2458mm
Di:1908mm
H:181mm
Weight:2010kgs
La:2380mm
Li:2085mm
n:40
B:39mm
M:36mm
n1:8
O:2199mm
U:2210mm
H1:139mm
H2:172mm
Hu:9mm
Ho:42mm
d:1926mm
m:18mm
z:107
b:139mm
Premissible tangential force, normal:217,6kN
Premissible tangential force, maximum:435,2kN
If more details or inquiry about Large OEM 192.32.2240.990.41.1502 three row roller bearing ring with size 2458*1908*181mm, please feel free to contact us.
