Help CenterHeavy Customized 191.40.4000.990.41.1502 Three Row Roller Bearing Ring With External Gear
Related Products
-
LYMC Wholesale Slewing Bearing 133.45.2000 Three Row Roller Bearing Swing Circle Gear Ring SupplyUS$ 1000 - 7000MOQ: 1 Piece -
LYMC Wholesale Slewing Bearing 133.40.1400 Three Row Roller Bearing Swing Circle Gear Ring SupplyUS$ 1000 - 7000MOQ: 1 Piece
-
Factory OEM 31-20 1250/2-06700 Machine Tools Thriple Row Roller Bearing Turntable Swing Circle Gear RingUS$ 1000 - 7000MOQ: 1 Piece
-
Factory OEM 31-20 1400/2-06710 Machine Tools Thriple Row Roller Bearing Turntable Swing Circle Gear RingUS$ 1000 - 7000MOQ: 1 Piece
-
Factory OEM 31-20 1600/2-06720 Machine Tools Thriple Row Roller Bearing Turntable Swing Circle Gear RingUS$ 1000 - 7000MOQ: 1 Piece

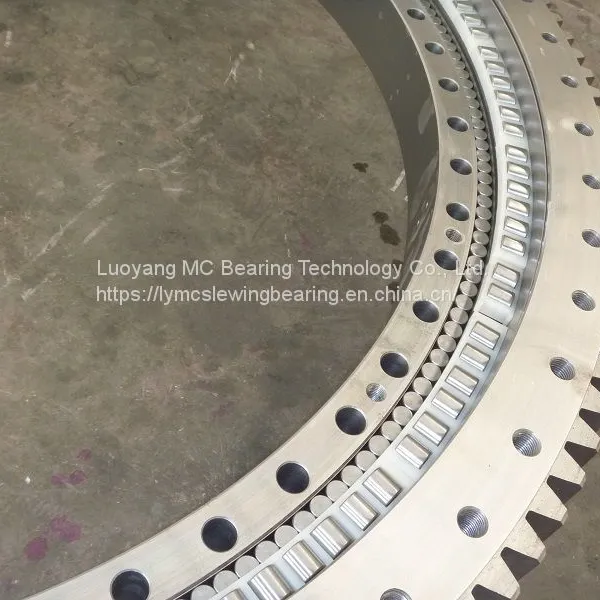

Heavy customized 191.40.4000.990.41.1502 three row roller bearing ring with external gear leads the improvement of the bearing capacity to the height direction of the bearing. Various loads are carried by different raceways and roller groups, so the diameter of the bearing can be greatly reduced under the same load condition. Therefore, the host is more compact, and it is a turntable bearing with high load capacity.
Da:4363.2mm
Di:3762mm
H:220mm
Weight:4805kgs
La:4165mm
Li:3840mm
n:72
B:39mm
M:36mm
n1:9
O:4050mm
U:4037mm
H1:170mm
H2:210mm
Hu:10mm
Ho:50mm
d:4296mm
m:24mm
z:179
b:170mm
Premissible tangential force, normal:354,8kN
Premissible tangential force, maximum:709,6kN
If more details or inquiry about Heavy customized 191.40.4000.990.41.1502 three row roller bearing ring with external gear, please feel free to contact us.
