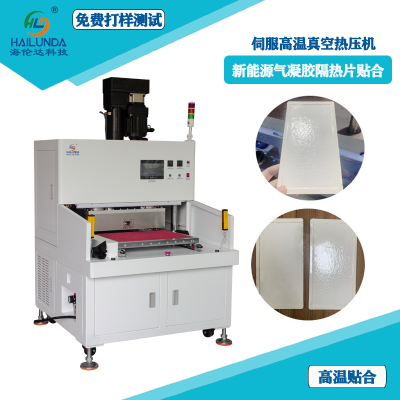

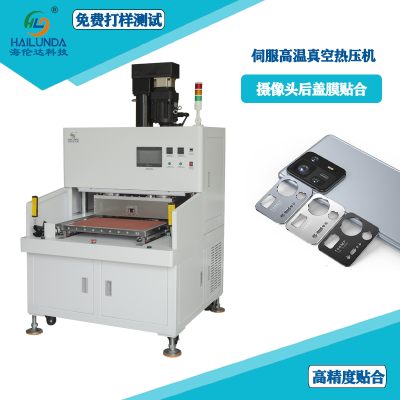

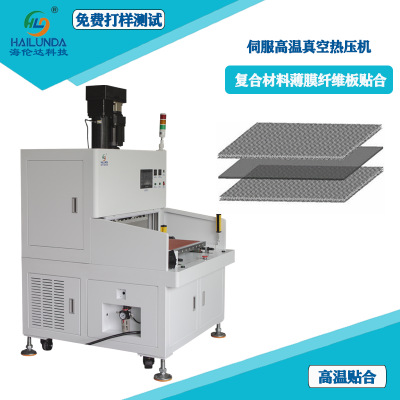

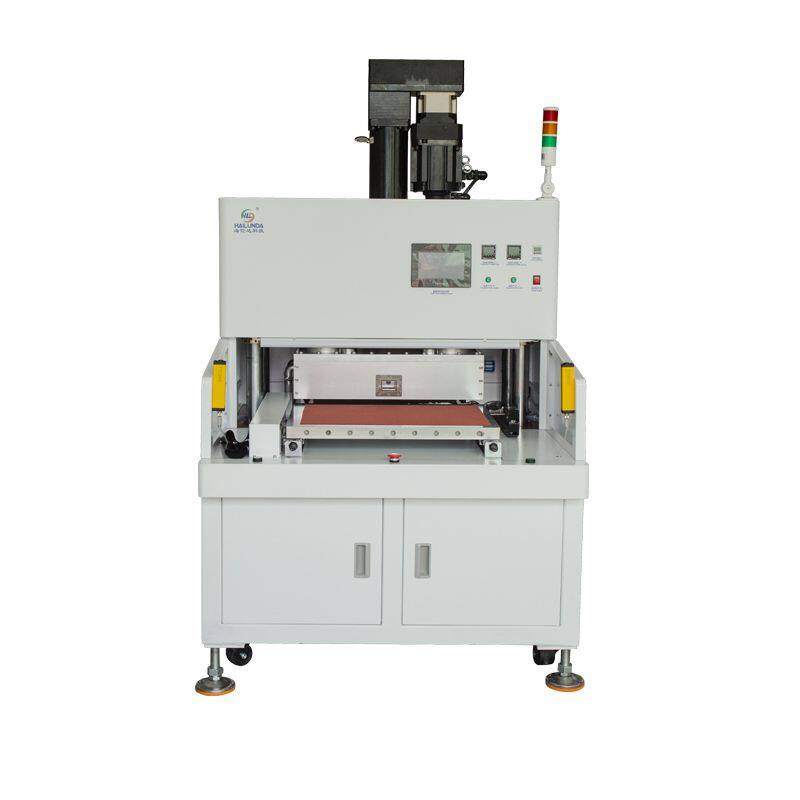

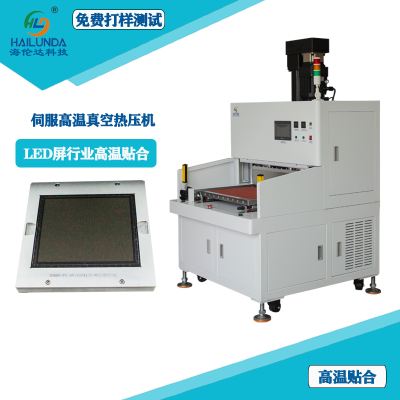

Vacuum servo electric cylinder hot press Servo vacuum press Hot press holding machine High temperature and high pressure vacuum machine
- 1000 Piece / Pieces per Month
- shenzhen
- T/T
- 45 days
- HAILUNDA GZC-COF280E Pulse hot press machine for screen assemble electronic production FFC, FPC ACF New LCD Flex Cable Repair Machine ACF Bonding Machine
- HAILUNDA 85 inch OCA vacuum laminating machine SCA Hot sol high temperature bonding
- HAILUNDA 75 inch OCA vacuum laminating machine SCA Hot sol high temperature bonding
- 12.9 Flat liquid crystal laminating machine GZC-TF16 Factory 2022 new product 16-inch vacuum laminating machine
- 15.6 inch LCD laminating equipment 21 inch machine GZC-TF21 hailunda
- HAILUNDA 35 inch OCA vacuum laminating machine SCA Hot sol high temperature bonding
Product Details
Brand Name: | HAILUNDA | Place of Origin: | China | Model Number: | GZC-SF025T |
After-sales Service Provided: | No overseas service provided | Weight: | 1.6T | Usage: | For the products requiring high temperature, high pressure and high precision press assembly, it is suitable for the equipment needs of university research institute, laboratory research and development, large-scale factory mass production |
Input Voltage: | 380V 50HZ | Dimensions: | 115*125*198CM | Welding Pressure: | 10T |

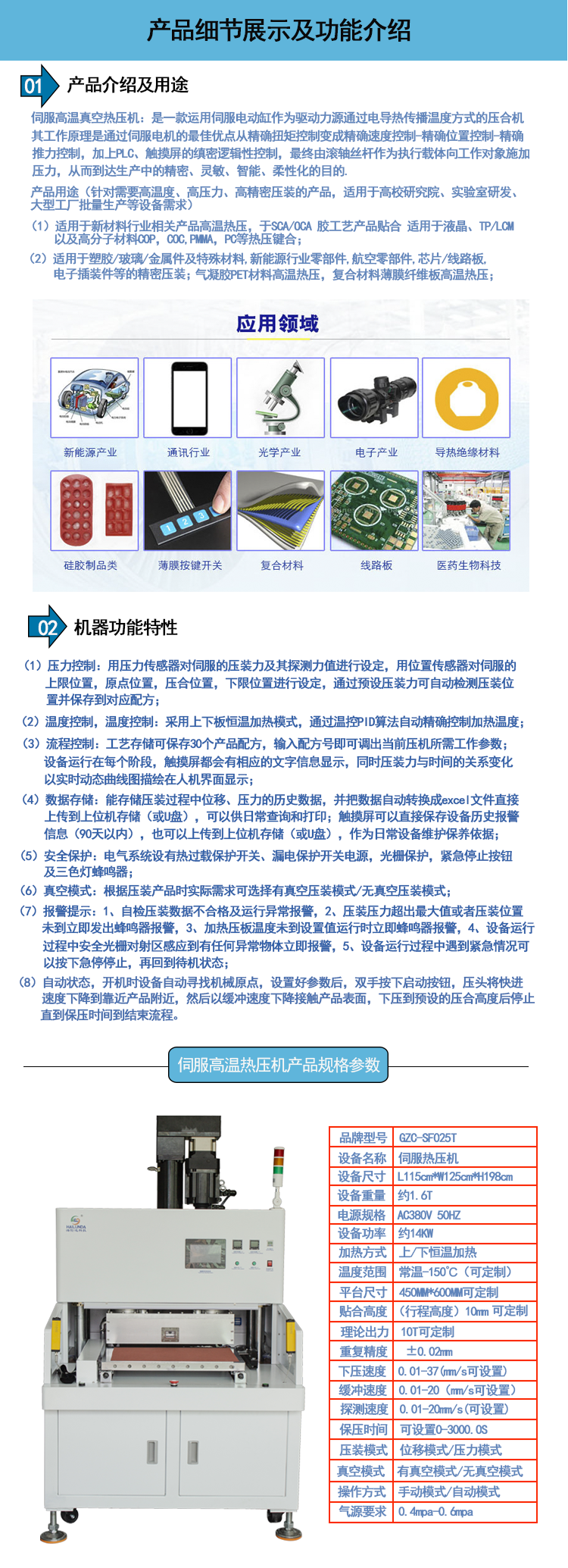

Product Description
1, product use (for the need for high temperature, high pressure, high precision pressure products, suitable for university research institute, laboratory research and development, large-scale factory mass production and other equipment needs)
(1) Suitable for high temperature hot pressing of new material industry related products, and suitable for liquid fitting of SCA/OCA adhesive process products
Crystal, TP/LCM and polymer materials COP, COC,PMMA, PC and other hot pressing bonding;
(2) Suitable for plastic/glass/metal parts and special materials, new energy industry parts, aviation parts, chip/circuit board, electronic plug-in parts, etc.
(3) and the fixture can be placed in the corresponding position between the workpiece to be fitted. By manually moving the product to the working platform to vacuum, hot pressing, pressure preservation.
2, the machine features
(1) Pressure control: the pressure sensor is used to set the pressing force of the servo and its detection force value, and the position sensor is used to set the upper limit position, origin position, pressing position and lower limit position of the servo, and the pressing position can be automatically detected and saved to the corresponding formula through the preset pressing force;
(2) Temperature control: the upper and lower plate constant temperature heating mode is adopted, and the temperature control PID algorithm is used to automatically and accurately control the heating;
(3) Process control: 30 product formulas can be stored in process storage, and the working parameters required by the current press can be retrieved by entering the formula number; At each stage of equipment operation, the touch screen will have the corresponding text information display, and the change of the relationship between the pressing force and time is depicted in the real-time dynamic curve display in the man-machine interface;
(4) Data storage: it can store the historical data of displacement and pressure during the press assembly process, and automatically convert the data into excel files directly uploaded to the host computer for storage (or U disk), which can be used for daily query and printing; The touch screen can directly save the historical alarm information of the device (within 90 days), and can also be uploaded to the host computer storage (or U disk) as a basis for daily equipment maintenance;
(5) Safety protection: the electrical system is equipped with thermal overload protection switch, leakage protection switch power supply, grating protection, emergency stop button and three-color light buzzer;
(6) Alarm warning: 1, the self-check pressure data unqualified and abnormal operation alarm, 2, the pressure exceeds the maximum value or the pressure position is not immediately issued a buzzer alarm, 3, the heating pressure plate temperature is not up to the set value of the operation of the buzzer alarm immediately, 4, the safety grating during the operation of the equipment to detect any abnormal object in the shooting area immediately alarm, 5. In case of emergency during the operation of the equipment, you can press the emergency stop and return to the standby state;
(7) Vacuum mode: According to the actual needs of the product can be selected with vacuum pressure mode/no vacuum pressure mode;
(8) Automatic state: when starting up, the device automatically finds the mechanical origin, after setting the parameters, press the start button with both hands, and the indenter will decrease the fast forward speed near the product, and then decrease the contact with the product surface at the buffer speed, and then stop the pressure until the pressure holding time reaches the end of the process.
