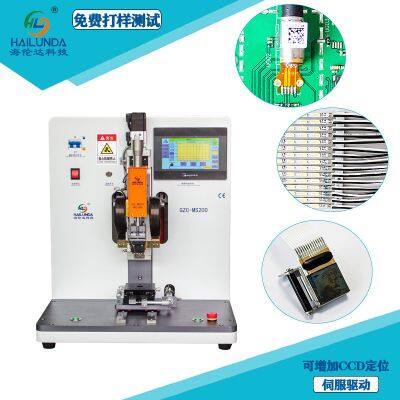

Hotbar Welding Machine Shenzhen Hailunda Pulse Soldering Machine PCB Board and FPC Hot Press

1. Product use
GZC-MS200 pulse hot press is mainly used for soft line FFC/FPC and hard circuit board PCB welding, zebra line and PCB board welding, wire and FPC board welding, all kinds of PCB board interface welding.
2. Product introduction
The working principle is to use the Joule heat generated when the pulse current flows through the molybdenum alloy high resistance material to heat the welding method. A type K thermocouple is connected at the front end of the heating cutter head, and the generated power is fed back to the control power supply in real time to ensure the correctness of the set temperature.
Pulse current heating is an instantaneous heating method, only when the solder needs to be melted, the solder stops the power after melting, cooling, pressurizing until the solder solidifies.
3. equipment characteristics
-Adopts Hechuan servo motor for precise control of pressing
-using Japan RKC temperature controller to control the heating
-Pressure control The use of pressure following mechanism provides continuous and stable welding pressure so that no welding collapse occurs and improves welding quality
-The system can store 30 groups of product model parameter data. When you need to switch products of different models, the system automatically aligns and saves corresponding parameters with one key
-platform adopts automatic entry and exit mode, which is convenient for loading/unloading
