It is mainly used to clean the glass products such as mobile phone curved surface (2.5D/3D) cover glass, tablet computer curved cover glass, toughened glass protective film and so on.

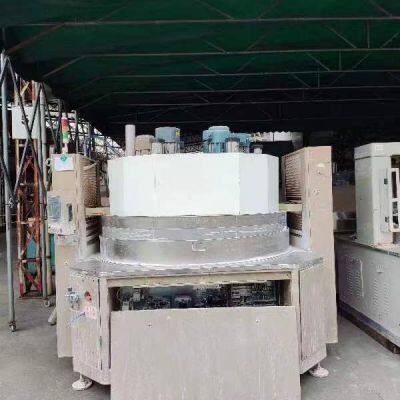

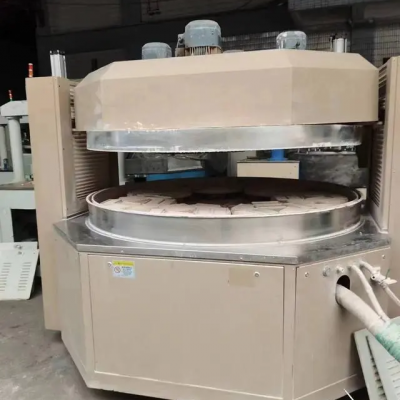

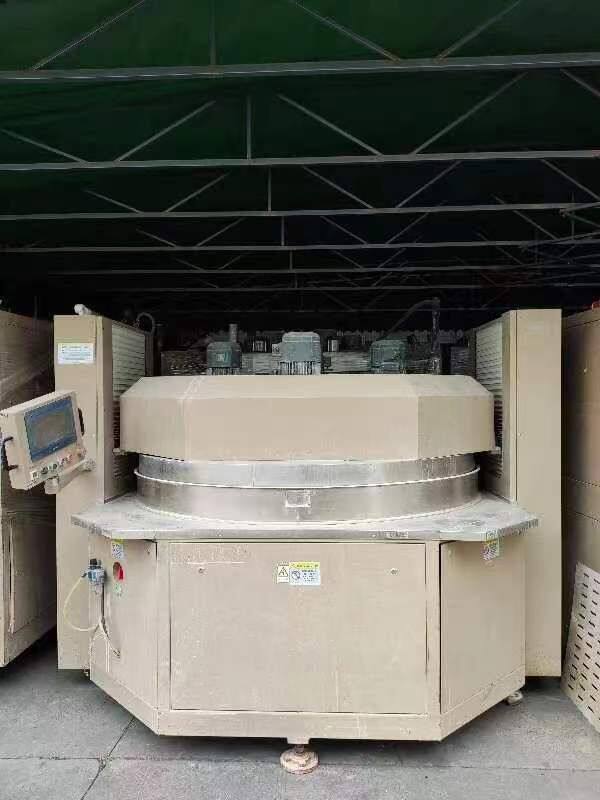

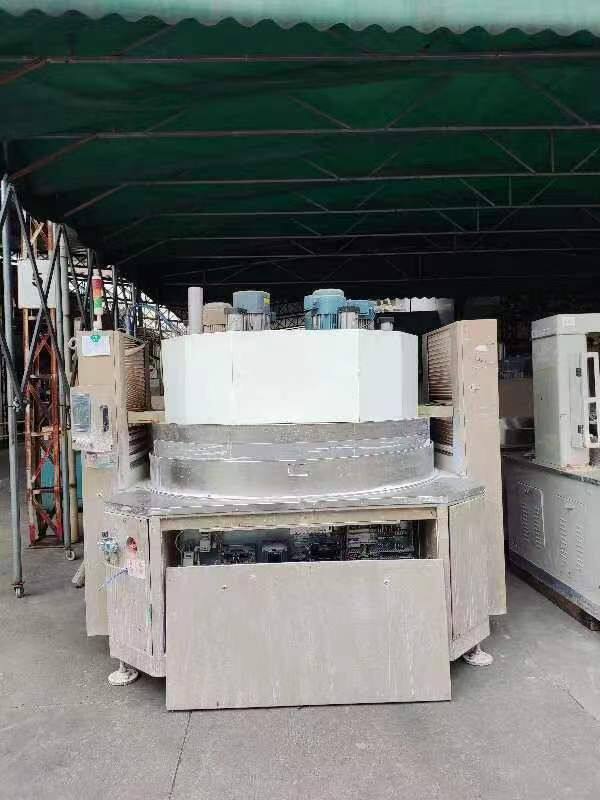

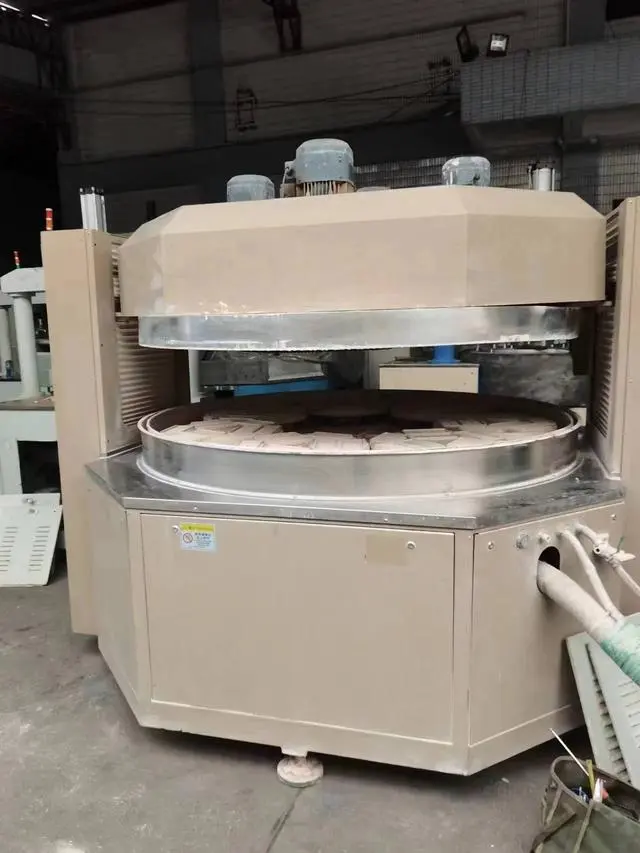

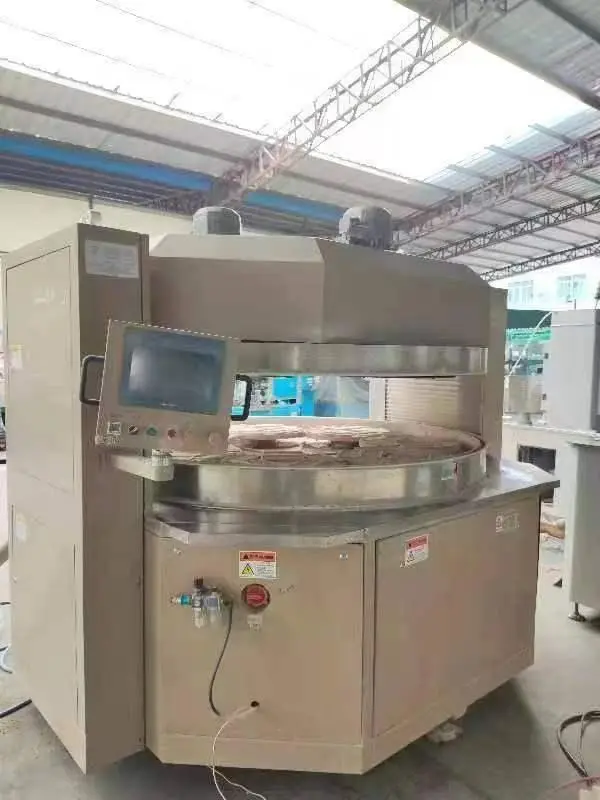

Name: HB-1500B sweeper.
Type number: HB-1500B.
L * W * H: about 1930mm (L) × 1680mm (W) × 2080mm (H).
Workbench height: 1680MM.
II. Specification parameters.
Lower turntable 1) Lower turntable diameter 1500mm.
2) Lower turntable material aluminum castings (reduce rotation load).
Upper turntable 1) diameter of upper turntable 1500mm.
2) the number of turntables is 7.
3) upper turntable material aluminum castings (reduce rotation load).
The production efficiency sweeps R surface at a speed of about 280 pieces per hour.
Workpiece positioning 1) positioning mode vacuum adsorption.
Control system PLC+ man-machine interface + frequency converter control.
Power configuration 1) Power supply AC 380V ±20V.
2) Power 9kW.
3) Frequency 50HZ/60HZ.
Vacuum system 1) vacuum tank 300L pressure tank.
(provided by customer's factory building) 1) Gas source 0.6MPa, outside diameter Φ 8 trachea.
3) ambient temperature 25 ℃ ±5 ℃
