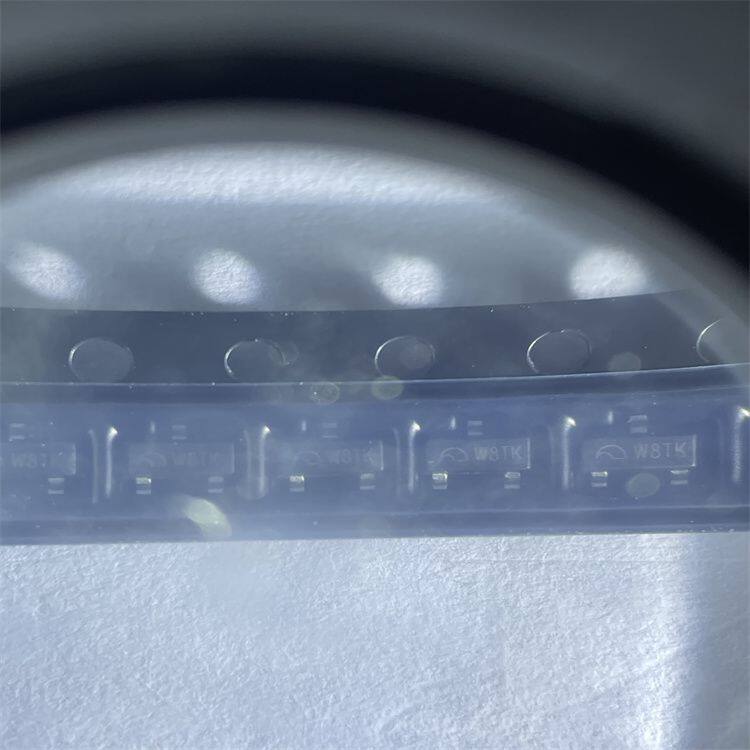

Hot Offer Original IC accessories ME2188A50XG

ME2188A50XG

ME2188

microne

Efficient PFM synchronous boost DC-DC conversion chip

summary

ME2188 is a series of high conversion efficiency, low power consumption, and high operating frequency

PFM synchronous boost DC-DC conversion chip. The chip utilizes PFM control

Circuit that automatically switches the duty ratio coefficient according to the magnitude of the load current to achieve low

A series of products with ripple, high efficiency, and wide output voltage range. In-chip

Low current consumption of synchronous switching tubes and chips effectively improves DC-DC

Conversion efficiency and equipment life cycle. Only three components are needed for the periphery

It is possible to boost the low input battery voltage to the required operating voltage.

characteristic

● High efficiency: 93%

Low startup voltage: 0.9V @ IOUT=1mA

Low quiescent current: 7uA

● Frequency: 320KHz

Optional output voltage: 1.9V~5.0V

● Output accuracy: ± 2%

● Output current: 300mA

● Low ripple and low noise

● Synchronous rectification

Application

● Electronic equipment with 1-2 dry batteries

● Digital camera, LED flashlight, LED lamp, blood pressure meter

Remote control toys, wireless headphones, wireless mouse and keyboard, medical devices

Handheld electronic devices such as car anti-theft devices, chargers, VCRs, PDAs, etc

Packaging form

● 5-pin SOT23-5

● 3-pin SOT23、SOT23-3、SOT89-3、TO92

Factory Pack Quantity: 3000

price: 0.04-0.06
