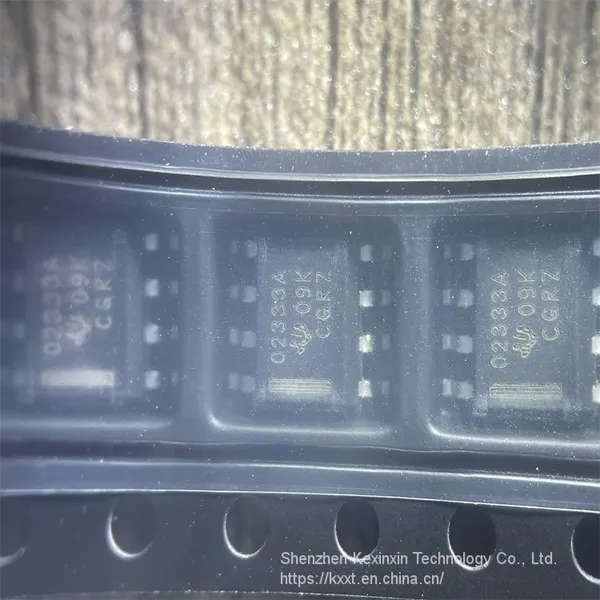

Help CenterOPA2333AIDGKR Texas Instruments Operational Amplifiers - Op Amps 1.8V 17uA 2uV Micro PWR CMOS 0-Drift
Related Products
-
TCAN332DR Texas Instruments CAN Interface IC 3.3-V CAN Transceivers 8-SOIC -40 to 125US$ 1.2 - 2.4MOQ: 10 Pieces -
PDWL050019 NICHTEK Sot-23-6US$ 0.02 - 0.1MOQ: 3000 Pieces
-
PDYL050B SOD-323 MSKSEMI NICHTEKUS$ 0.02 - 0.2MOQ: 10 Pieces
-
PT2314E Stereo Audio Processor for Home/TV Audio PrincetonUS$ 0.5 - 1MOQ: 10 Pieces
-
AD7091R-4BRUZ-RL7 Analog Devices Analog to Digital Converters - ADC 4 Chn 12bit SAR ADC, Ref (typical), SPIUS$ 4.5 - 8.1MOQ: 1 Piece
Mfr. #:
OPA2333AIDGKR
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: VSSOP-8
Number of Channels: 2 Channel
Supply Voltage - Max: 5.5 V
GBP - Gain Bandwidth Product: 350 kHz
Output Current per Channel: 5 mA
SR - Slew Rate: 160 mV/us
Vos - Input Offset Voltage: 10 uV
Supply Voltage - Min: 1.8 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Ib - Input Bias Current: 200 pA
Operating Supply Current: 17 uA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 130 dB
en - Input Voltage Noise Density: 65 nV/sqrt Hz
Series: OPA2333
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Amplifier Type: Low Offset Voltage Amplifier
Brand: Texas Instruments
Features: EMI Hardened, Small Size, Zero Drift
Height: 0.97 mm
In - Input Noise Current Density: 0.1 pA/sqrt Hz
Input Type: Rail-to-Rail
Length: 3 mm
Maximum Dual Supply Voltage: +/- 2.75 V
Minimum Dual Supply Voltage: +/- 900 mV
Operating Supply Voltage: 1.8 V to 5.5 V, +/- 900 mV to +/- 2.75 V
Output Type: Rail-to-Rail
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 120 dB
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: CMOS
Voltage Gain dB: 130 dB
Width: 3 mm
Part # Aliases: HPA00224AIDGKR
Unit Weight: 0.000935 oz
