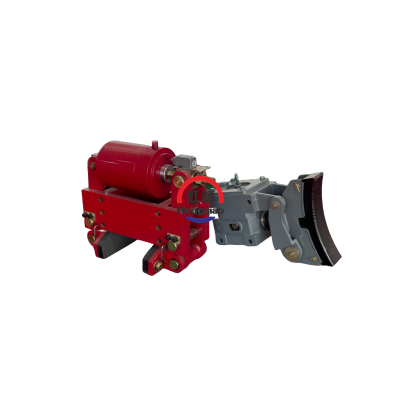

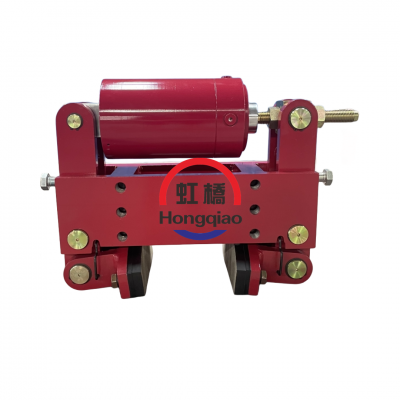

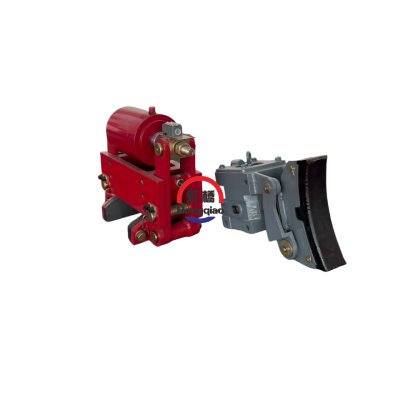

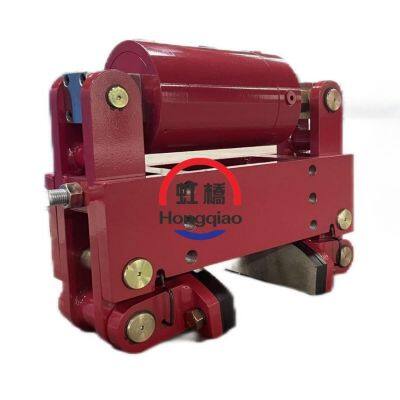

YLBZ Series Lifting Machinery Crane Brake Wheel Brake
- 20000 Piece / Pieces per Month
- Shanghai port/Qingdao port
- T/T
- 20 days
- Hydraulic power unit YPA series matched with disc/safety brake or rail clamp
- Power Pack with Accumulator Pressure Relay
- YFX Rail Crane Storm Windproof Brake
- Crane Brake High Quality DZ Series Drum Brake
- Yaw Brake Wind Mills Generator Use Brake DADH Series
- BYWZ4-300/45 Explosion-Proof Electro-Hydraulic Brake Suitable for Explosive Place
Product Details
Brand Name: | Hongqiao | Place of Origin: | China | Model Number: | YLBZ |
Product Description
Application
Brake of YLBZ type is mainly applied to storm braking in working state and auxiliary storm braking in nonoperative state for outdoor large and medium sized cranes as well as port handling equipment. What makes it function well is that it can effectively prevent the rolling displacement under the wind power. In addition, if this sort of brake is applied on high speed shaft of drive wheel, it will be more economic and efficient.
Use conditions
Ambient temperature: -5 °C-40 °C
Working professure: 8Mpa
Outdoor rain erosion or corrosive gases corrosion products.
Key characteristics
1. safe and reliable based on the normally-closed design
2. spring applied in braking
3. centralized release in hydraulic station
4. limit switch in interlocking protection
5. high-performance in friction pad
6. good anti-corrosion performance in fastener and spindle
Major range of application
This type of hydraulic wheel brake is mainly used for windproof braking of outdoor large and medium-sized cranes and port handling machinery under working and non working conditions.
Generally, the wheel side brake is only used on the passive wheel, and it can effectively prevent the wheel being braked from rolling displacement under the action of wind force.
At present, it is a new and ideal windproof measure to use the wheel brake for windproof braking, which is widely applied. If the windbreak brake is used on the high-speed shaft of the driving wheel, the effect will be better and more economical.
Technical dimension
Type | Rated clamping force (KN) | Rated power (KN) | Size | Weight(kg) | |||||
B | K | J | H | D | G | ||||
YLBZ25-160 | 50 | 42 | 160 | 300 | 250 | 310 | 190 | 500 | 145 |
YLBZ40-150 | 73 | 62 | 150 | 325 | 150 | ||||
YLBZ40-160 | 160 | ||||||||
YLBZ40-180 | 180 | ||||||||
YLBZ40-200 | 200 | ||||||||
YLBZ63-180 | 114 | 96 | 180 | 200 | 510 | 155 | |||
YLBZ63-200 | 200 | ||||||||
YLBZ63-210 | 210 | ||||||||
YLBZ100-200 | 180 | 150 | 200 | 360 | 280 | 350 | 225 | 560 | 160 |
Instruction for use
Since we have maximize the utility and stimulated more usage, you may limit the amount of waste and emission to a minimum; in order to make it have long-run effect at a preferential rate, this sort of brake should be checked and maintained at regular intervals.
