High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine

Zhengzhou VANGUARD Machinery Technology Co., Ltd.
High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine thumbnail-1
High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine thumbnail-2

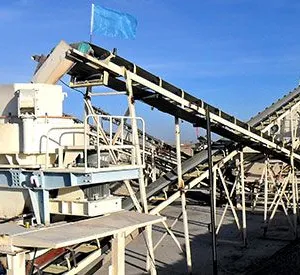

High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine thumbnail-3

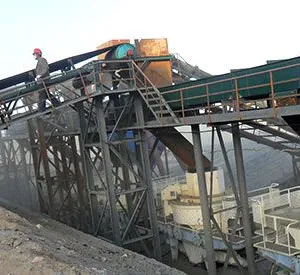

High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine thumbnail-4
High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine photo-1

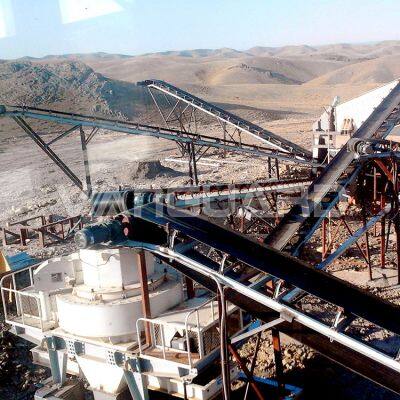

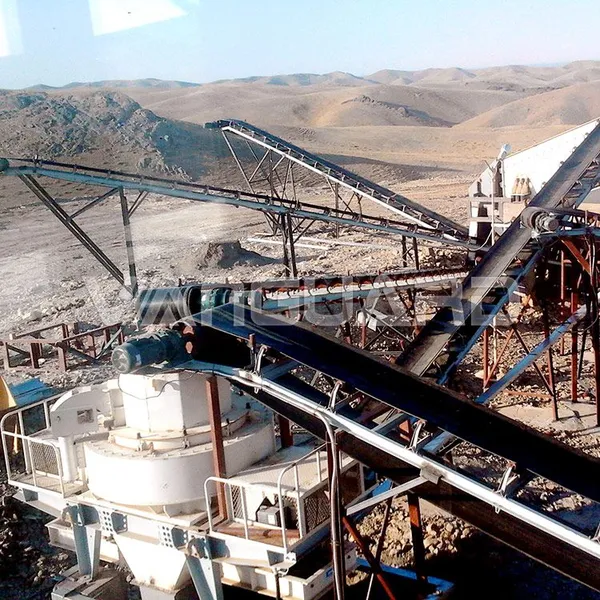

High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine photo-2

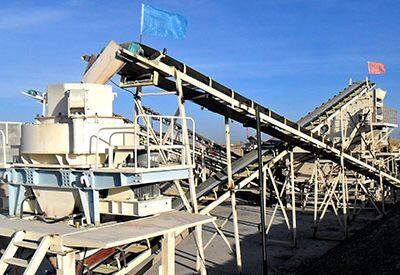

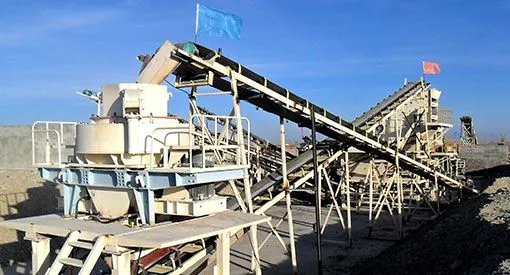

High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine photo-3

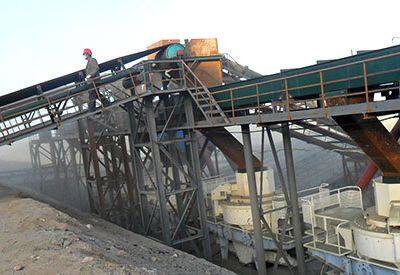

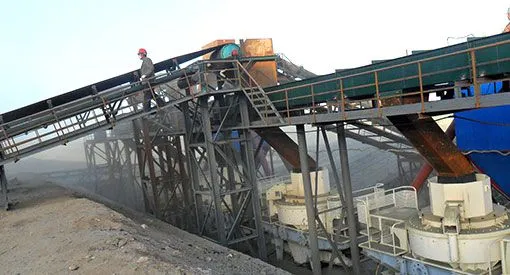

High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Type:
Impact Crusher
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Type Impact Crusher
Certification ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Application stone,ore,coal,sand
Condition New
Motor Type AC Motor
Capacity(t/h) 60-520T/H
Product Description
High Efficiency VSI Sand Maker Sand Production Equipment Sand Making Machine
VSI Series Vertical Shaft Impact Crusher is a new generation of crushing and sand making equipment developed by our company according to the actual working conditions of VSI Series Vertical Shaft Impact Crusher, combined with advanced technology at home and abroad, and according to the actual situation of domestic building materials. By adopting computer PLC automatic control, easy grading adjustment, fault detection and data monitoring control, it has been proved by practice that the equipment is the most advanced crushing and sand making equipment at home and abroad with high stability, large capacity and quality performance.
PRODUCT ADVANTAGES
◆The VSI series vertical shaft impact crusher perfectly combines the special rotor design with the effectively and accurately controlled bypass feeding system together, which increase the capacity and quality, and reduces cost and wear parts consumption.
As the optimized design for wearing parts, the VSI series vertical shaft impact crusher is very convenient to maintain and few time to replace the spare parts. The perfect combination of automatic control and manual control system reduces to minimum work load of equipment maintenance.
◆The rotor’s double-layer throwing combination mostly furthest extend the wearing term, and protects the rotor body well. The different rotor speed in twice overflow system could control the grain shape and size distribution perfectly.
◆VSI series vertical shaft impact crusher is the perfect match of accurate manufacturing and good design, which realizes man machine interface’s easy operation with the PLC control system assistant and reduces the operation difficulty and training time of operators.
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.
PRODUCT PARAMETERS
Model
VSI7611
VSI8518
VSI9526
VSI1140


Capacity(t/h)
Cascade and Central Feeding


120~180


200~260


300~380


450~520
Fully Central Feeding
60~90
100~130
150~190
220~260
Max. Feeding
Size(mm)
Soft Material
<35
<40
<45
<50
Hard Material
<30
<35
<40
<45
Rotation Speed(r/min)
1700~1890
1520~1690
1360~1510
1180~1310
Double Motor Power(kW)
110
180
264
400
Overall Dimension L×W×H(mm)
3700×2150×2100
4140×2280×2425
4560×2447×2778
5000×2700×3300
Weight (t)
11.8
14.5
17.8
25.6


Thin Oil
Lubrication
Station
Double Oil Pumps Motor's Power (kW)


2×0.25


Safty Assurance
Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure;
air cooling system /water cooling system available; preheating-start engine adopted.
Overall Dimension L×W×H(mm)


820×520×1270
Power of Oil Tank Heater(kW)


2

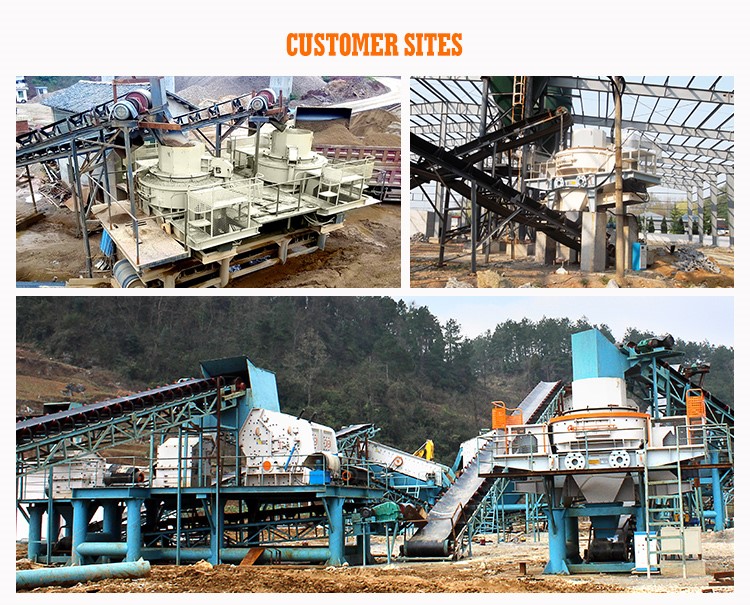

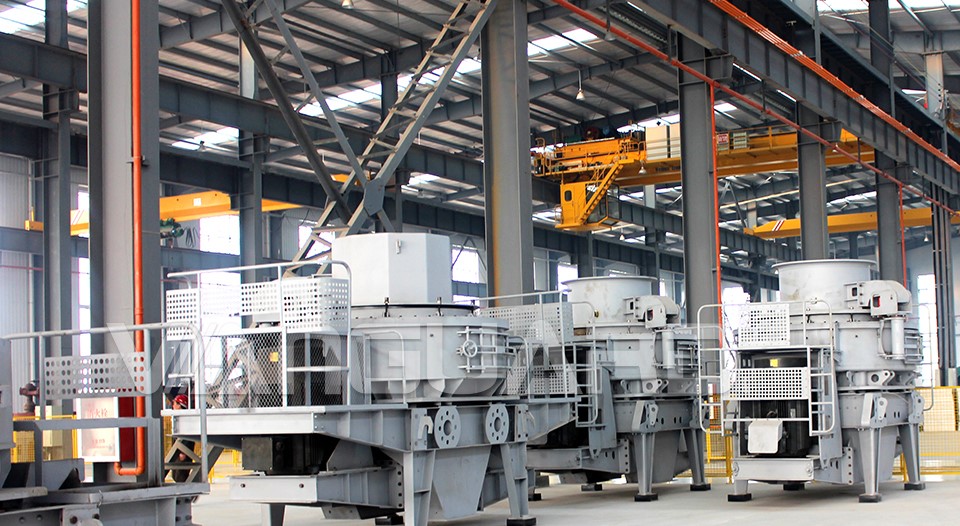

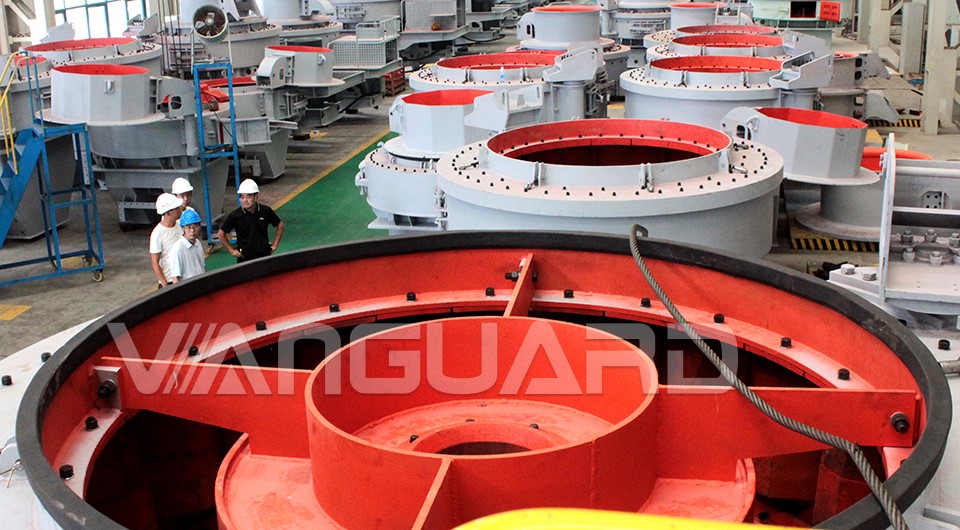

PRODUCT EXHIBITION
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
