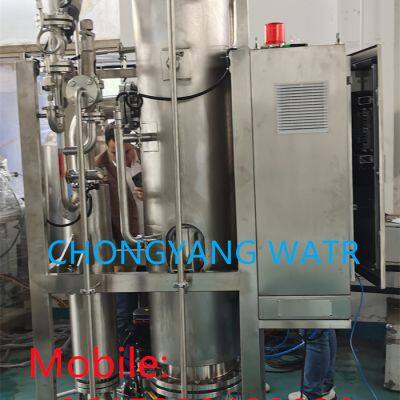

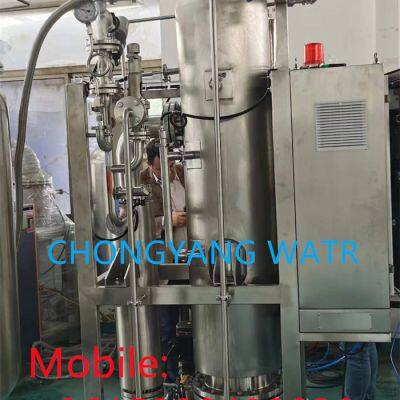

Product Name:300 KGS Pure Steam Generators Pharmaceutical Industry
Testing and validation - The processes used to produce pure steam must be validated to ensure that they meet the required standards for purity, sterility, and other critical parameters. The pure steam must also be tested regularly to ensure that it continues to meet these standards.
Documentation - All aspects of the pure steam production process must be documented, including the equipment used, the process parameters, and the results of testing and validation. This documentation is critical for maintaining regulatory compliance and ensuring the quality and safety of the final product.
Overall, the regulatory requirements for pure steam in pharmaceutical processes are designed to ensure that the pure steam produced is of high quality and meets specific standards for purity, sterility, and other critical parameters. The requirements may vary depending on the specific application and regulatory body, but they are essential for maintaining the safety and efficacy of pharmaceutical products.
Product Feature:
In compliance with FDA,cGMP and pressure vessel requirements.
Condenser,evaporator is double tube sheet design.
All parts which is connect with feed water ,pure steam and condensate water is SS 316L.
Ensure the welding quality ,automatic track welding use the arc for protection.
Inside surface electro chemical polishing to ensure the stainless steel surface smoothness,outside surface is mat finished.
It can use non paper recorder to achieve no paper record ,or use paper recorder to record critical parameter.
Low point drainage.
Insulated design for energy saving .
Sampling is accessible for quality checking purpose
Stable performance ,easy for maintenance.
FAT will be carried out for each finished PSG to ensure quality before use .
CHONGYANG Water Spec. & Type
| Type | Capacity | Feed Water | Industry Steam | Height(mm) | Length(mm) | Wide(mm) |
| PS100 | 100 | 115 | 130 | 2100 | 900 | 570 |
| PS200 | 200 | 230 | 250 | 2500 | 900 | 570 |
| PS300 | 300 | 345 | 370 | 2500 | 1100 | 680 |
| PS400 | 400 | 460 | 480 | 2600 | 1100 | 680 |
| PS500 | 500 | 575 | 173 | 2600 | 1170 | 720 |
| PS800 | 800 | 920 | 960 | 3500 | 1775 | 930 |
| PS1000 | 1000 | 1150 | 1200 | 3700 | 1775 | 930 |
| PS2000 | 2000 | 2300 | 2400 | 4000 | 2030 | 1900 |
| PS3000 | 3000 | 3450 | 3600 | 4850 | 2030 | 1900 |
| PS4000 | 4000 | 4600 | 4800 | 5100 | 2200 |
2100 |
