Wholesale Jasic EVO TIG 200P AC/DC PFC Water Cooled Inverter Welder

Jasic EVO TIG 200P AC/DC PFC Water Cooled Package – EVO 2.0 SERIES

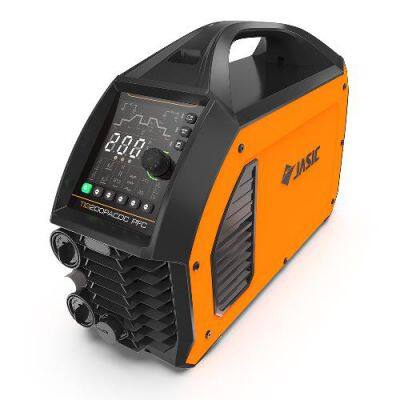

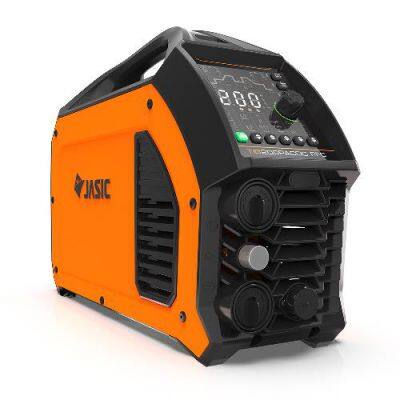

The Jasic EVO TIG 200P AC/DC PFC (ET-200PACDC-WC) is a feature packed AC/DC TIG welder with a water cooler suitable for TIG welding virtually all metals.  The water cooled package includes a modular water cooler and a trolley.

The uprated version of the hugely popular PRO Jasic series, the EVO range offer a large format super easy to use control panel, rugged build and looks as well as a variety of AC waveforms.  Optional foot controls are also available including a wireless pedal, for ultimate flexibility and convenience of use.

The EVO TIG series come with PFC as standard for increased energy efficiency.  They are also auto voltage sensing and can be plugged into 110 or 230V supplies including generators.  Furthermore, the input tolerance of the Jasic EVO TIG is from 96V up to 265V meaning it will cope with being used on long extension leads where voltage drop may otherwise be an issue.

THE CONTROLS

Buttons across the bottom (From left to right):

• Choose between TIG Modes or MMA

• Toggle between HF TIG and Lift TIG

• 2T or 4T selection

• AC Waveform selection

• DC or AC selection

• In MMA: Amps, Hot Start and Arc Force

Buttons on top right of the panel from top to bottom:

• Remote control

• Smart Gas on/off

• Water cooling

The main knob can be used to cycle through the parameters chart to illuminate each of the settings.  A push of the button selects the parameter to be set and it can be adjusted by twisting the knob.  Very user friendly, each parameters numeric value appears on screen for easy viewing.

Key Features

• Rugged, ergonomic design

• ClearVision technology – clearly see amperage and parameter settings

• Adaptable wide voltage range – works well on long extension cables as well as 110 or 230V supplies

• HF stabilising technology

• Dash-Arc – Improved arc starting

• Smart Lift TIG – When not using HF start

• Full featured pulse TIG parameters

• Multiple AC waveforms – Control the arc and weld characteristics.

• Flexible remote control solutions (optional) – wireless or wired foot controls available

• Power factor correction (PFC) – Efficient for increased energy saving

• Generator friendly

• Auto sleep mode to reduce power consumption

• Water cooled option available

• ABAP: Active Balancing Air Passage – Decreases ingress of particulate laden air onto the components

• Smart gas for optimised shielding gas consumption

• On demand fan – Reduced power consumption and energy usage

• Voltage Reduction Device (VRD) – Safety function

• Key power electronic component protection

• Overcurrent and overheat protection

• TFT screen (optional)

• Mixed waveform, mixed waveform frequency, mixed waveform duty cycle
