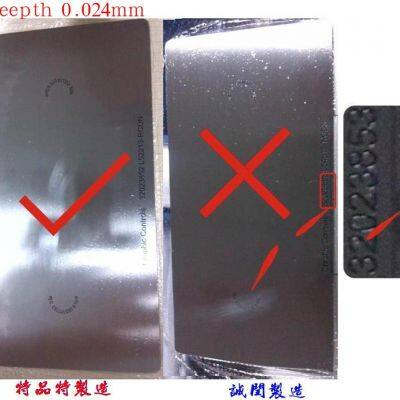

HRC50-70 Thin Steel Plates
Features:
1、All plates are made of imported steel, high hardness, high density and high brightness.
2、Can be etched with high-definition pattern, long using life.
3、Various kinds, full range that covering plates of single side and both sides
4. Strong anti-rust
5 Flatness high, scraping clean
Technical parameters:
Style |
hight Quality oil steel |
Imported oil steel |
Chromium steel |
|||
Material Composition |
GCr15 |
9CrWMn |
9Cr12MoV |
|||
Surface heat treatment hardness |
HRC63±1 |
HRC63±1 |
HRC62±1 |
|||
|
Board flatness |
Ink cup：500：0.05mm Ink tray：500:0.005mm |
Ink cup：500：0.05mm Ink tray：500:0.005mm |
Ink tray：500：0.05mm Ink tray：500:0.005mm |
|||
|
Board surface finish |
matt：Ra0.1μm glossy：Ra0.01μm mirror： Ra0.005μm |
matt：Ra0.1μm glossy：Ra0.01μm mirror：Ra0.005μm |
matt：Ra0.1μm glossy：Ra0.01μm mirror： Ra0.005μm |
|||
Rust force |
First class |
Second class |
Fifth class |
|||
Scratch Views |
150,000 impressions |
300,000 impressions |
1000,000 impressions |
|||
Plate thickness range of processing |
10.2-10.5mm |
10-15mm |
10mm |
|||
Applications |
Abs pet pvc pe，etc ink |
Abs pet pvc pe，etc ink |
Pp Highly corrosive ink |
|||
thin Steel PlatesSteel plate
Stainless Steel Plat
