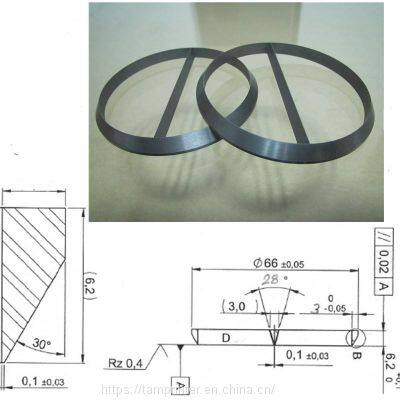

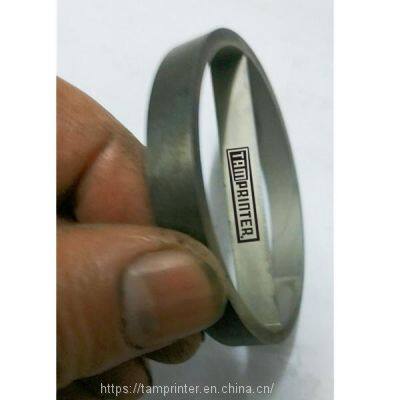

Two Color Tungsten Steel Ring for Tampoprint Pad Printing Machine
40, 60, 90mm two color sizes, customized angle is available
Characteristics:
- Type: 2-colour ring for doctoring cup
- Inc/doctoring cup size: Ø 60 mm
- Model: Steel, without 30° thrust collar contact surface
- Non-printing area: approx. 5 mm around the centre bar
Used for:
- Print image size: max. Ø 55 mm
- System: "hermetic" pad printing machines
Description:
Inc/doctoring ring for cleanly doctoring of clichés, and for controlled pad printing colour pick up.
With 2-colour inc/doctoring ring arise 2 different-coloured print images (side by side) in one printing process with a 1-colour "hermetic" pad. printing machine.
Please note: For the use of the inc/doctoring ring a thrust collar without 30° chamfered contact surface is additionally needed.
Suitable fort he following cliché types:
Steel cliché, ceramic cliché, Aloxid-special cliché*, Magnet-Aloxid cliché, record-special cliché*, Magnet-screen cliché*, Magnet-Aqua cliché*, Magnet-Eco cliché*, Magnet-microflex cliché
(* When using these cliché types the lifetime of the clichés may be limited)
Factory direct sale price
Business Type: Manufacturer/Factory
Main Products: tampoprint Pad Printing Ink Cup, tampoprint Pad Printing Ceramic Ring, tampoprint Pad Printing Steel Plate, Pad Printing Silicone seals, tampoprint Pad Printing Tungsten Steel Ring
| Feature | Round, size can be customized according to customer requirements |
| Color | Black/White |
| Design | Round design, size can be customized according to customer requirements |
| Certification | Patent authentication |
| Free Sample | YES |
| Function Description | 1. Uniform ink scraping effect with high printing quality printing consumables |
