Product Details
Brand Name: | tamprinter | Model Number: | TM-CR-DS-DB-3 |
Product Description
parameter | G.W. | Carton size | USD |
---|---|---|---|
6PCS PER pack、110 MESH、20*24 INCH | 5KG | 510X610X160 | 36.5 |
6pcs PER pack、160 MESH、20*24 INCH | 5KG | 510X610X160 | 36.5 |
6pcs PER pack、230 MESH、20*24 INCH | 5KG | 510X610X160 | 37 |
4pcs PER pack、110 MESH、20*20 INCH | 4KG | 510X510X110 | 23 |
4pcs PER pack、355 MESH、20*20 INCH | 4KG | 510X510X110 | 25.5 |
6pcs PER pack、110 MESH、16*20 INCH | 4.5KG | 410X510X160 | 31.5 |
6pcs PER pack、160 MESH、18*20 INCH | 4.5KG | 460X510X160 | 34.5 |
6pcs PER pack、156 MESH、10*14 INCH | 2KG | 260X310X130 | 16 |
6pcs PER pack、305 MESH、20*24 INCH | 5KG | 510X610X160 | 41.5 |

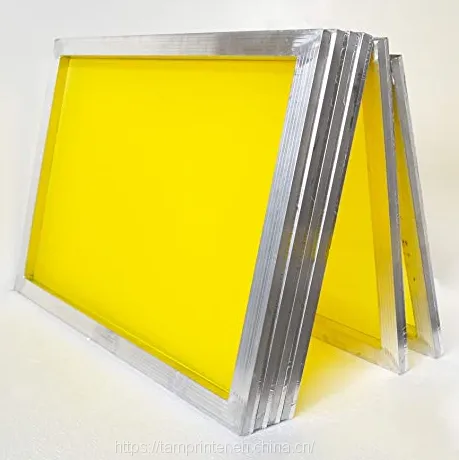

Light weight frame for quick and easy handling
Aluminum is made to 6063T5 alloy for high resistance, maximum strength and hardness
Easy clean up and long lasting durability
Corners are carefully welded to provide leak free frames
Model example
Normal outside 20 * 30 18221.0 This is an ordinary frame with an outer diameter of 20 * 30 cm. It is produced with 18 mm high 22 mm wide 1.0 wall thickness profiles.
Inner printing 20 * 30 25251.0 This is a treadmill printing frame with an inner diameter of 20 * 30 cm, including T iron handle, produced with 25 mm high 25 mm wide 1.0 mm wall thickness
Then determine the size of the box
Generally, the inner diameter of the frame is ten centimeters larger than the printed picture. For example, if your picture is 10 * 20 cm, then you choose a box with an inner diameter of 20 * 30 cm. The larger the picture, the bigger the picture is, the better it is. Of course, it depends on the use environment. You can consult customer service
About the quality of the frame
We all do in accordance with industry standards. Normally, printing can be competent. We can also customize thickened and extra large material frames according to requirements, and the unified price is unlimited.
Our frame production process: blanking-welding-rough grinding-grinding pattern-polishing-trimming-correction-packing. The frames produced by my family are more polished and trimmed than others, and the frames made are of good quality and beautiful (will not pierce the mesh and scratch the hands). Detailed photos below

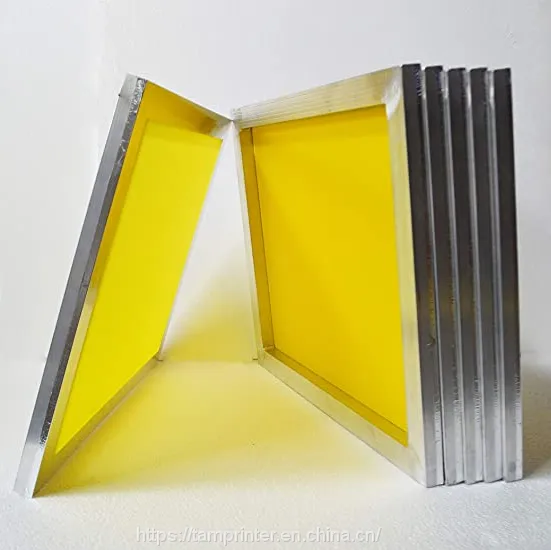

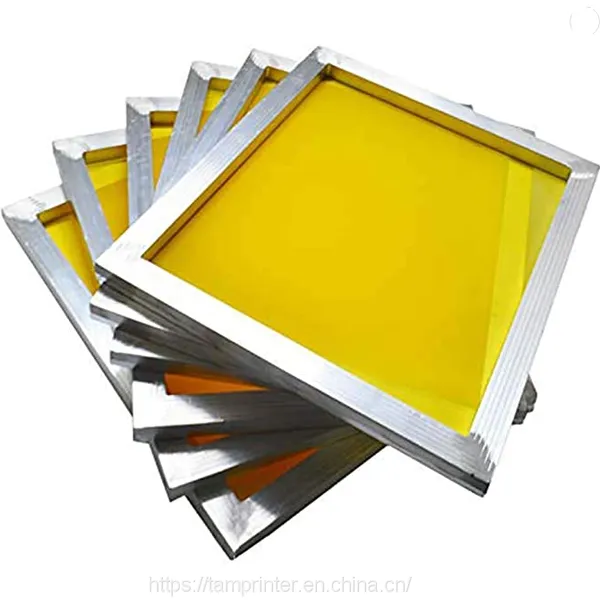

aluminum silk screen printing frame with mesh for screen printing machine
aluminum silk screen printing frame | |
Material | Aluminum Alloy |
Inner size | 300x400mm, 400x500mm, 500x600mm or customzied |
Color | Silver |
Type | Screen Printing Frame |
Surface | sandblasting and polishing |

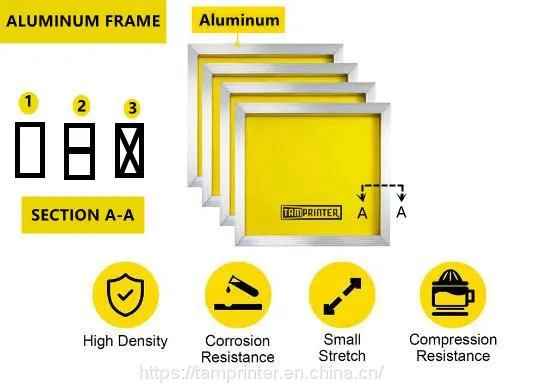

Aluminum model | 15*25*1.4 square tube 18*22*1.1 square tube 20*30*1.0 square tube 20*30*1.4 square tube 25*38*2.0 square tube 28*43*2.0 square tube 30*40*1.7 square tube 30*40*2.0 square tube |
30*40*1.8X Word reinforced 30*40*2.5X Word reinforced 30*40*3.0X Word reinforced 35*50*2.5X Word reinforced | |
30*30*1.0 trough of belt 25*40*1.0 trough of belt 30*40*1.2 trough of belt 30*50*1.6 trough of belt | |
Packing | wrap film and Carton |
Packaging and shipping:
The common packaging:
me pcs wrap by film
2.then in carton box or covered in carton pallet
3.or customized
The common shipping:
1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Sending tracking number soon.
* Training how to use it
* Changing for new if dissatisfaction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment
Product Description:
TSM series aluminum profiles are designed for international customers basically. Especially for textile screen printing industry of America and West Europe markets.
It's the best choice for use on automatic textile screen printing machine or manual carousel.
Aluminum Prestretched Screen Printing Frames,Screen Print For Sale.
We manufacture quality aluminum screen frames and aluminum pre-stretched frames ranging from 12 - 380 mesh count.
TSM series aluminum frames Can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is grinded or sandblasted to make fabric adhesion fast and easy.
Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability. Aluminum is made to 6001 alloy for high resistance, maximum strength and hardness
All screens are stretched with tension-stabilized low elongation mesh for the best quality results.
A broad range of mesh counts are available for a variety of print applications.
These recyclable aluminum frames are light weight, durable
machine stretched and glued.
Silk screen printing aluminum frame Profile, also known as silk screen printing Silk screen needed in the frame can be divided into wooden screen frame, aluminum screen frame (hereinafter referred to as our aluminum screen frame) and steel mesh frame three, after lightweight characteristics of both the increase with the rise in printing technology, the printing conditions require, there is growing use of aluminum or steel mesh frame, because they have anti-twist or arch rheological properties, water resistance, and durability and other advantages, the quality of the silk screen printing machine of great help. The characteristics of aluminum mesh screen frame: light weight, wide range of options section, high yield strength, corrosion resistance (chemical, inks, solvents and cleaning agents) and easy to clean. Types and characteristics of the aluminum mesh screen frame: aluminum screen frame is divided into a hollow type, date font, font and crossover field four main sections. 1. Treadmill printing aluminum frame: treadmill for printing, apparel printing, gifts, leather, plastics and toys, printing and other manufacturers use; print jobs mainly for manual-type line (treadmill) operations.
2. precision electronic aluminum frame:
Suitable for multi-layer circuit boards, liquid crystal display, surface mount, membrane switch, ceramic decals, tobacco packaging and printing manufacturers use high precision requirements: the print job is mainly to automatic screen printing machine main part is also suitable precision semi-automatic screen printing presses.
3.CD, ceramic aluminum frame:
Suitable for CD disc, nameplate, Dijiao, keyboard, plastic, shell and other general printing precision require manufacturers to use: hand-print and print jobs to a small area of the main printing machine; can be customized by a single border and arc shaped frame and other frame.
The large aluminum box:
