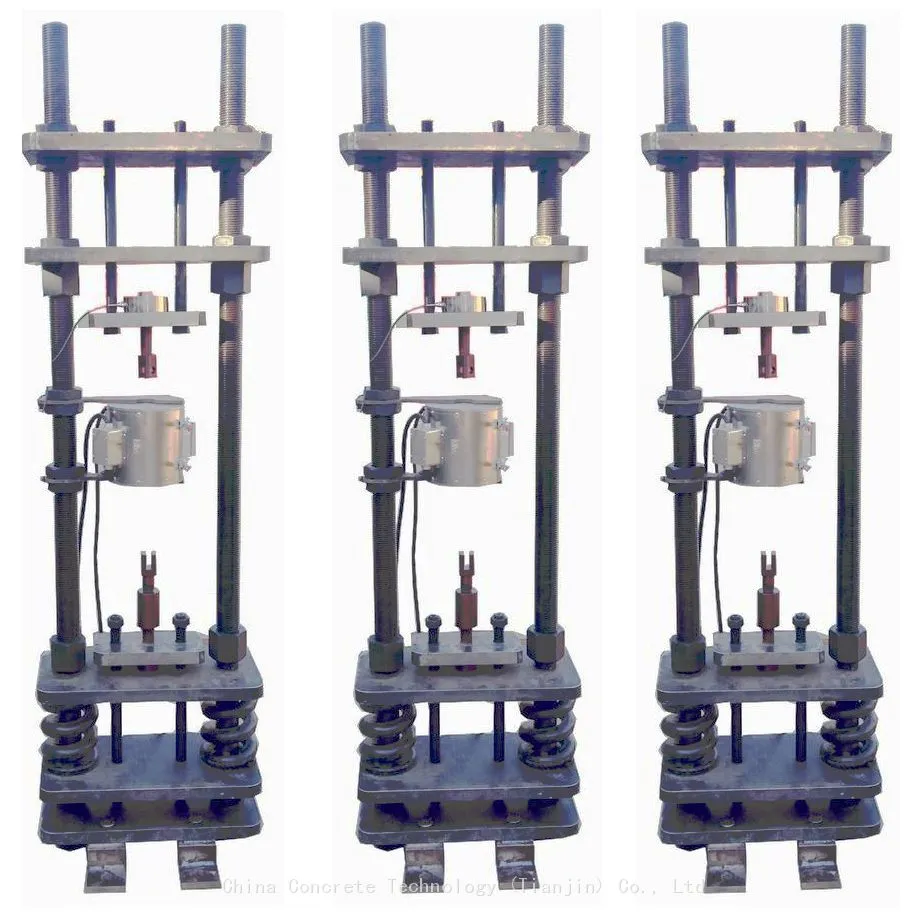

Help CenterChina Concrete Tensile Creep Tester LXB10 Type
Related Products
-
China Non-contact Mechanical Displacement Deformation Measurement and Control System LES TypeNegotiableMOQ: 1 Pack -
China Testing System for Relative Temperature and Humidity Inside Concrete TEHU TypeNegotiableMOQ: 1 Pack
-
China Testing System for Relative Temperature and Humidity Inside Concrete TEHU TypeNegotiableMOQ: 1 Pack
-
China Wireless Temperature Acquisition and Positioning System TW3000 TypeNegotiableMOQ: 1 Pack
-
China Concrete Unilateral Freeze-thaw Testing Machine HDD TypeNegotiableMOQ: 1 Pack
Product Usage
Used to determine the deformation performance of concrete specimens under long-term constant axial pressure.
Execution standards
Test Code for Hydraulic Concrete SL352-2006
technical parameter
1. Test force: 100kN;
2. Measurement range: 0-100kN;
3. Pressure sensors have high resistance to eccentricity, overload, and sensitivity;
4. Relative error of pressure: ± 1%;
5. ※ Spring height: 240mm;
6. Spring material: manganese steel material, with long service life and low stress relaxation;
7. ※ Customization can be made according to the temperature requirements of the test, with the addition of a high-temperature furnace for high-temperature creep testing;
8. Compression stroke: greater than 20mm;
9. ※ Net distance for specimen operation: 1050mm;
10. Equipped with a new type of specimen balancing device, convenient for loading and leveling operations;
10. Net spacing between screws: 375mm;
11. Test block size: 100× one hundred × 400mm;
12. ※ Support size: 600× three hundred × 2200mm;
13. Working temperature: 0 ℃ -+50 ℃.
Product features

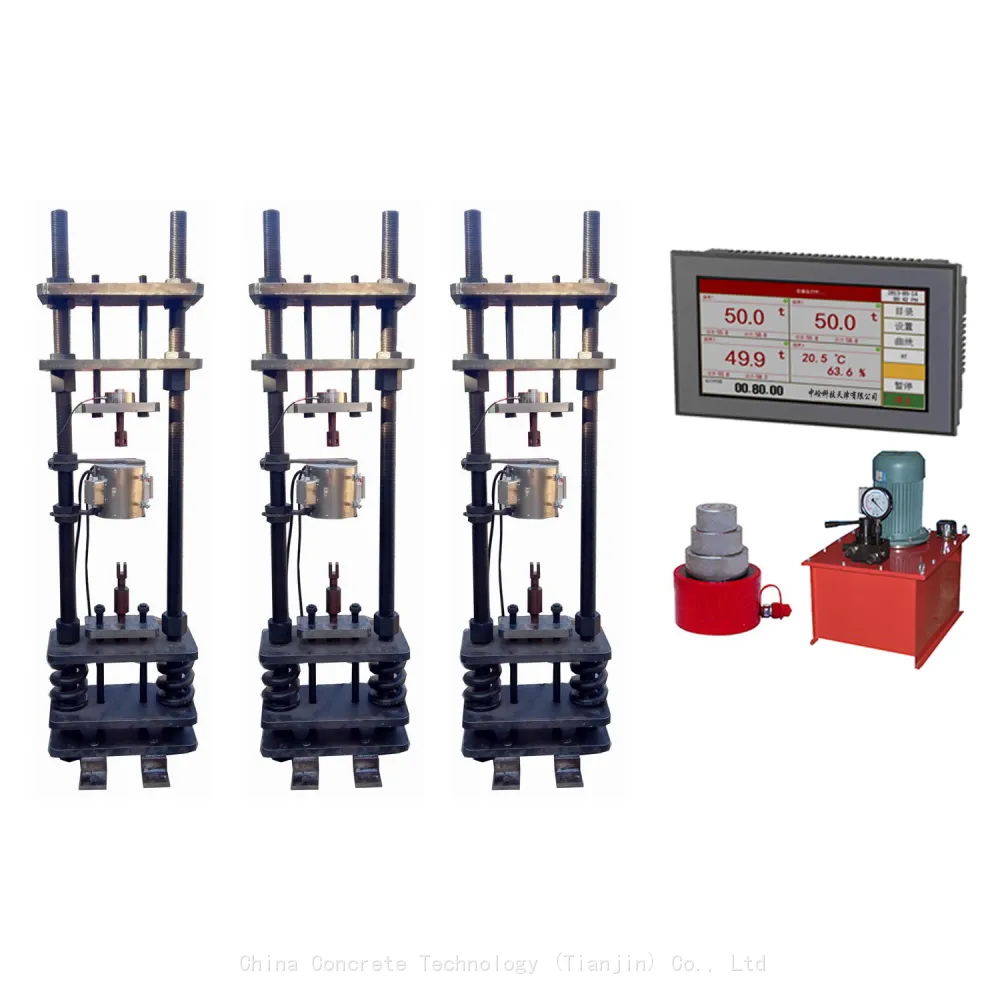

1. Fully automatic true color touch control system, real-time display of specimen status and test environment temperature and humidity;
2. The pressure plate undergoes quenching treatment process, with stable performance and small stress deformation;
3. Adopting high-quality high-speed rail springs, resistant to moisture and corrosion, with a service life of over ten years;
4. Equipped with a self-developed specialized adhesive free displacement measurement auxiliary device, which is more convenient and fast;
5. Users can make multiple specimens at the same time based on the size of each specimen, improving equipment utilization.
