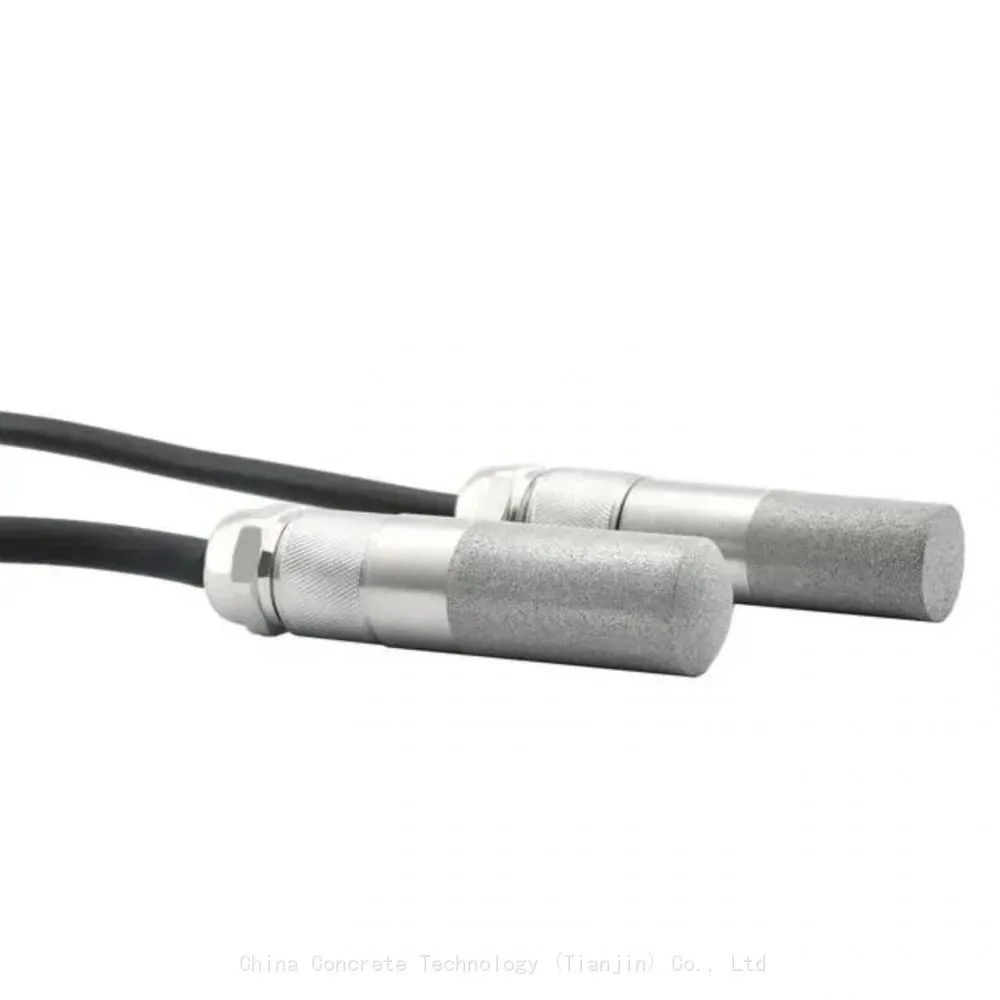

Help CenterChina Testing System for Relative Temperature and Humidity Inside Concrete TEHU Type
Related Products
-
China Wireless Temperature Acquisition and Positioning System TW3000 TypeNegotiableMOQ: 1 Pack -
China Concrete Unilateral Freeze-thaw Testing Machine HDD TypeNegotiableMOQ: 1 Pack
-
China Bubble Spacing Coefficient Tester 457NegotiableMOQ: 1 Combo
-
Concrete Chloride Ion Diffusion Coefficient&electrical Flux Multifunctional Tester RCMP (four in One Type) ZTKJNegotiableMOQ: 1 Pack
-
ZTKJ Concrete Chloride Ion Diffusion Coefficient&electrical Flux Multifunctional Tester RCMPN (six in One Type)NegotiableMOQ: 1 Pack
Product Usage
Used for temperature and humidity monitoring during the pouring of bridges and piers in highway and railway construction, temperature and humidity monitoring of concrete dams in water conservancy construction, and temperature and humidity monitoring during the pouring of large volume concrete foundation caps and frames in super high-rise buildings.
The extremely high precision stands out among all temperature and humidity products so far. Based on a new collection technology, it has unique adjustment functions and multiple innovative designs.
Performance characteristics
1. Data reading: PC specific software;
2. Real time recording interval: 5s~24h;
3. Recording mode: optional start/stop or loop recording methods;
4. LED status indicator and buzzer alarm.
technical parameter
1、※ Accuracy: humidity ± 0.8%, temperature ± 0.1 ℃;
2、Temperature range: -10~60 ℃;
3、Humidity range: 0-100% RH;
4、※ Number of channels: 12 channels;
5、Probe size: 15× 83m;
6、Embedded sleeve size: Ø 22.5× 80mm;
7、Current consumption: 0-4.5mA;;
8、※ Long term stability: ＜ 1% RH/year;
9、Filter element type: polyethylene standard filter element, 20um;
10、Response time:without filter installed;
11、Shell material: polycarbonate;
12、Power supply voltage: DC 5 V.
