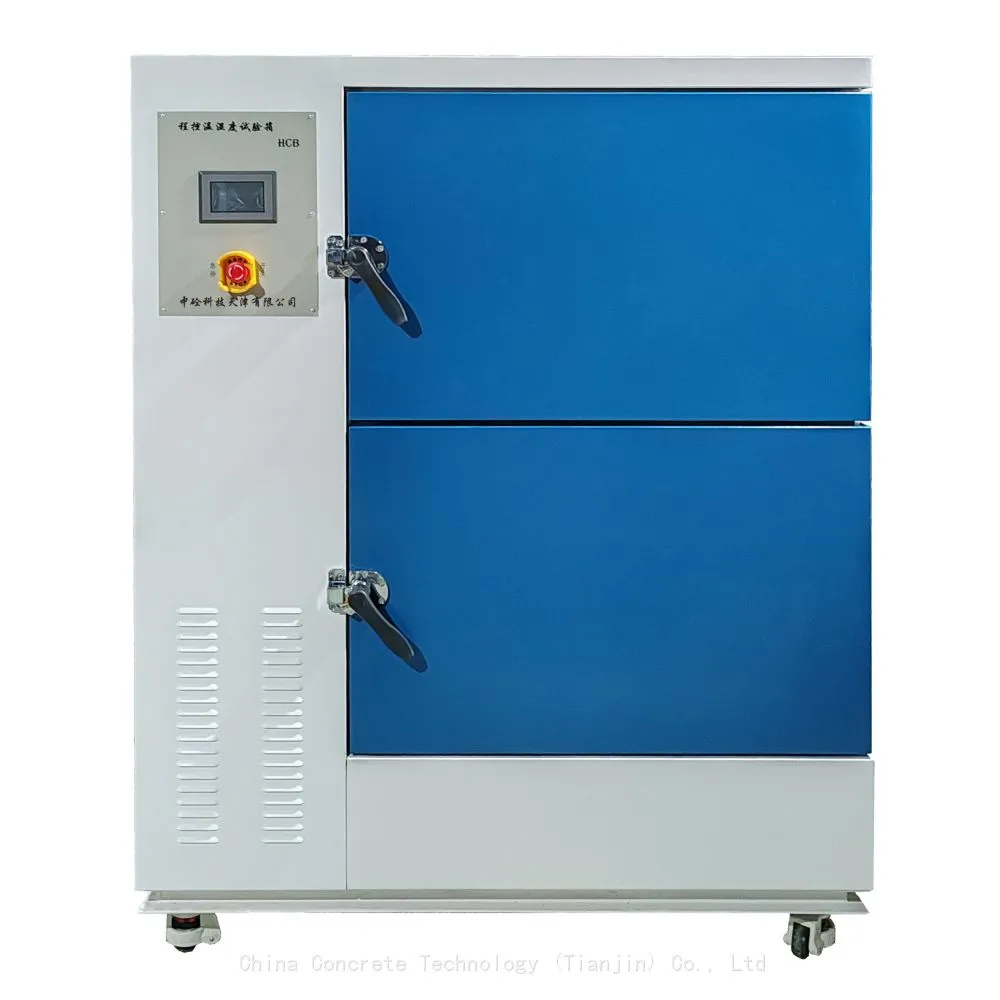

Help CenterChina Programmable Temperature and Humidity Test Box HCB Type
Related Products
-
China Intelligent Concrete Creep Tester XB50NegotiableMOQ: 1 Pack -
China Concrete Tensile Creep Tester LXB10 TypeNegotiableMOQ: 1 Pack
-
China Non-contact Mechanical Displacement Deformation Measurement and Control System LES TypeNegotiableMOQ: 1 Pack
-
China Testing System for Relative Temperature and Humidity Inside Concrete TEHU TypeNegotiableMOQ: 1 Pack
-
China Testing System for Relative Temperature and Humidity Inside Concrete TEHU TypeNegotiableMOQ: 1 Pack
Product Usage
Used for testing the durability performance of materials (components) under various environmental conditions such as high temperature and high humidity, high temperature and low humidity, and high and low temperature alternation.
technical parameter
1. Tested parts: no less than 6 layers of brackets inside the box, and no less than 54 specimens (100 * 100 * 300mm);
2. ※ No system industrial touch screen, Chinese (English) menu prompts with various functions such as curve display and historical data query;
3. Control temperature: N ± 0.5 ℃ (N is the set temperature);
4. Temperature control range: 15-30 ℃ (can be set arbitrarily);
5. Temperature resolution: 0.1 ℃, accuracy: ± 0.1 ℃, stability: ＜ 0.5 ℃, uniformity: ＜ 1 ℃;
6. Control humidity: N ± 2% (N is the set humidity);
7. Humidity control range: 55-85% (can be set arbitrarily);
8. Humidity resolution: 0.1%, uniformity: ≤ 2%, accuracy: 2%, stability: ＜ 2%;
9. ※ There are two testing methods available: fixed value and program. The program has multiple functions such as editing, clearing, and inserting, making it convenient for conducting scientific research comparative experiments;
12. ※ There are three options for starting after an unexpected power outage: cold start, hot start, and stop;
13. ※ The temperature and humidity are controlled by advanced cold and hot balance method, and the output values of temperature and humidity can be independently and automatically calculated to ensure no fluctuations in insulation and humidity;
14. The inner liner of the box is made of 304 stainless steel material, which has high strength and corrosion resistance;
15. ※ It has the function of power-off program memory, automatically starting and continuing program execution after power restoration;
16. Total power of the equipment: 2KW;
17. Power supply: AC220V, 50Hz ± 1Hz;
18. Box size: 1400 * 750 * 1800mm (length * width * height);
19. Effective size: 900 * 570 * 1400mm (length * width * height).
