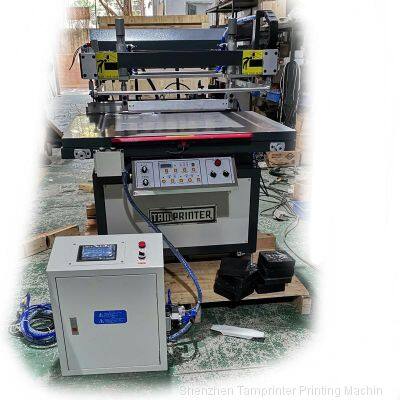

Tamprinter Printing Machinery UV Ink Automatic Screen Printing Machine for Paper

Tamprinter Printing Machinery UV Ink Automatic Screen Printing Machine for Paper photo-1
Tamprinter Printing Machinery UV Ink Automatic Screen Printing Machine for Paper photo-2
Tamprinter Printing Machinery UV Ink Automatic Screen Printing Machine for Paper photo-3
Tamprinter Printing Machinery UV Ink Automatic Screen Printing Machine for Paper photo-4
Tamprinter Printing Machinery UV Ink Automatic Screen Printing Machine for Paper photo-5
US$ 1 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Model Number:
TM-Z1
Certification:
CE Certification
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Tamprinter
Model Number TM-Z1
Certification CE Certification
After-sales Service Provided Overseas third-party support available
Warranty 1 Year
Usage Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, paper printer
Condition New
Automatic Grade Automatic

1.2,parameter

Type

TMP-70100

                   HS CODE                8443192290

Worktable size(mm)

800*1100

Max print area(mm)

700*1000

Max plate size(mm)

1000*1300

Min plate size(mm)

550*650

Thickness of substrate (mm)

0-20

Printing speed(pcs/h)

500-1200

Working air pressure(Mpa)

0.3-0.5

Gas consumption(0.6Mpa)(L/pcs)

13/pcs

power(kw)

2.3

Work table minimum relative height (mm)

820

Overall Dimension(l×w×h)(CM)

160*125*130

Plywood177*138*145=3.3CBM

weight (kg)

485

Rated voltage(V/Hz)

220V50Hz

Model Parameter

TM-UV750-L

Conveyorbelt width(mm)

730

Effective range (mm)

750

Product max height (mm)

40

Conveyor speed (m)

2~20

Power(P/V/Hz)

3/380/50

UV lamp(KW/2pcs)

5.6

Conveyor power(W)

90

Total power(KW)

12.1

Dimension(L*W*H)

4050*1200*1350

Plywood4.2X1.2X1.66m= 8.5CBM

Weight(kg)

300

Robot arm

Type

robot arm 1500

Working air pressure(Mpa)

0.3-0.5

Gas consumption(0.6Mpa)(L/pcs)

0.5

power(kw)

0.75

Rated voltage(V/Hz)

AC220v/50Hz

Take the feed rate (pcs/h)

1000

Dimension(L*W*H)mm

L1500* W 700* H 200

weight(kg)

40

all above plants /2 plywood /930kg/ 12.6m³

Why is this product important?

The paper printing industry usually has silk screen printing and offset printing
Q1: Why choose silk screen?
Answer 1: The ink of silk screen printing is several times or even tens of picometres thicker than that of offset printing, so if you look closely, you will find that the silk screen printing will be a little raised, and you can feel the thickness of the silk screen printing by touching it with your hand. This characteristic of silk screen printing is not available in offset printing, and offset printing is basically very flat.
Therefore, if there is a requirement for the three-dimensional effect of the product pattern, or the artistic effect is exquisite, and the equipment investment budget does not want to be too large, silk screen printing will be selected.
Q2: Why choose this uv screen printing?
Answer 2: Because the fastest drying is uv ink.
Saves a lot of stacking space compared to using self-drying inks
Compared with the use of ink that requires infrared drying, the equipment investment is much less, the equipment occupies a small area, and the power consumption is less.
Question 3: Why is it equipped with a diagonal arm screen printing machine? Why is it equipped with a blanking manipulator?
Answer 3: The inclined arm screen printing machine is the cheapest style of the automatic screen printing machine. Paper printing usually does not require too high precision, so the suitable one is the best. Equipped with a blanking manipulator to save labor, and automation is not easy to make mistakes.

3. Why you are worth buying

Market advantage
South America and Europe most channel sales do well,
Aluminium labels printing ,Aluminium ceiling auto screen print, stainless labels printing, polycarbonate labels screen printing, brass signs screen printing, PVC signs embossing,3M self-adhesive
stickers printing market. . . Etc.



Technical advantages

Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam,Photoshop,AI,Coreldraw; ODM & OEM.
Whether you're well prepared, running out of time or on a tight budget we can offer a solution that fits your needs.

Factory advantages

Tamprinter printing machinery group company have import and export rights and general taxpayer qualifications,Independent brand.Production, sales and service integration.
