Product Details
Brand Name: | Tamprinter | Place of Origin: | China | Model Number: | TM-Z2B |
After-sales Service Provided: | Overseas third-party support available | Condition: | New |
Product Description

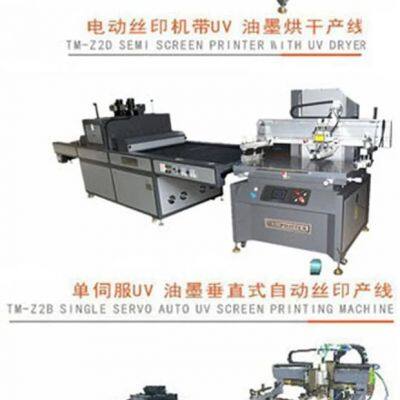

TM-Z2B Precision servo system screen printing machine for electronic optics industry with uv tunnel curing machine factory test video:
Production line working video:)
Screen printer Technical parameter:
Model No. | TM-3050B | TM-5070B | TM-6090B | TM-70100B |
Servo+PLC | X servo Z motor | X servo Z motor | X servo Z motor | X servo Z motor |
Price | $6625 | $9125 | $9375 | $9975 |
Print area | 300X500mm | 500X700mm | 600X900mm | 700X1000mm |
Table size | 400X600mm | 600X800mm | 700X1000mm | 800X1100mm |
Max frame | 550X750mm | 600X1000mm | 800X1200mm | 900X1350mm |
Printing thickness | 0~40mm | 0~ 50mm | 0~ 50mm | 0~ 50mm |
Overlay accuracy | 0.01mm | 0.015mm | 0.02mm | 0.02mm |
Platform precision | About +/-0.04mm | About +/-0.06mm | About +/-0.075mm | About +/-0.075mm |
Printing pressure | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 |
Air pressure (mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) |
Air consumption | 35L/min | 35L/min | 35L/min | 35L/min |
Printing speed | 960pcs/h | 1000pcs/h | 900pcs/h | 900pcs/h |
Power | 220V/2.5KW | 220V/2.5KW | 380v /2.5kw | 380v /2.5kw |
Dimensions (LXWXH)mm | 980X820X1580mm | 1260mmX900mmX1680mm | 1500X1070X1750mm | 1550X1200X1750mm |
Weight | 280kg | 420kg | 480kg | 550kg |

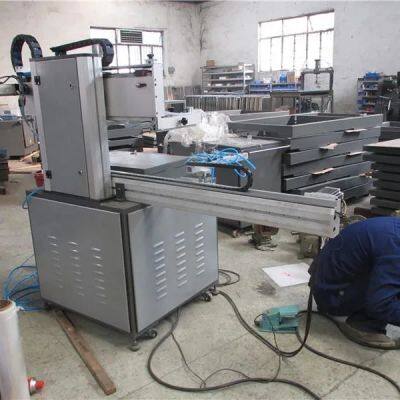

if add robot arm add $3000
Tamprinter uv tunnel Technical parameters
TYPE | TM-UV400-L | TM-UV750-L | TM-UV1200-L |
Belt Width(mm) | 380 | 730 | 1180 |
Effective W(mm) | 400 | 750 | 1200 |
Tunnel H (mm) | 40 | 40 | 40 |
Conveying speed (m) | 2~20 | 2~20 | 2~20 |
POWER(P/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 |
UV lamp(KW*pcs) | 3*1 | 5.6*2 | 5.6*2 |
Driving power(W) | 60 | 90 | 120 |
Total power(KW) | 3.4 | 12.1 | 17 |
lamp lengh | 460 | 826 | 1250 |
SIZE(L*W*H) | 4050*700*1200 | 4050*1050*1450 | 4050*1460*1600 |
WEIGHT(Kg) | 300 | 400 | 630 |
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Application Scope:
machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.
Automatic Grade: Semi Automatic
Color & Page: Single Color
Warranty: screen printer 18 months, uv machine 18months
After-sales Service Provided: Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: 20 workdays after payment
Performance & Features

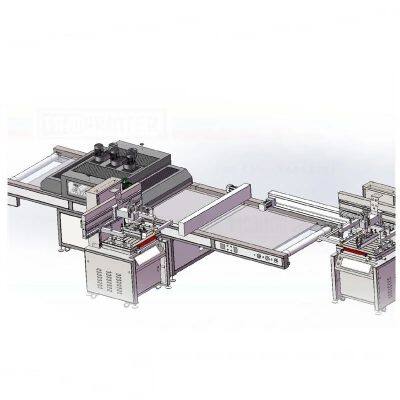

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), Traditional mercury lamp UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.

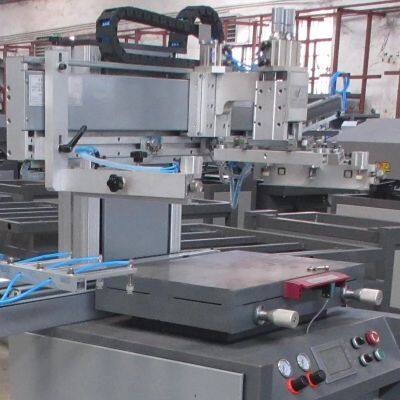

2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain
if buy kit machine suitable for LCD sealing side requiring small temperature, film printing and so on. pls choose led uv ink.
2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
3.1
The matching method of the suit screen printing machine is ever-changing. According to different inks, different printing and drying needs, some products require long wrinkle snowflake effect uv tunnels and infrared tunnel furnaces.
TAMPRINTER printers in the paper packaging industry operate in the following categories:
Bank card screen printing machine
Tobacco and Alcohol Gift Box UV Ink Automatic Screen Printing Machine
Picture album greeting card golden vermicelli printing machine production line
TAMPRINTER, a printing machinery for the sign and nameplate industry, operates the following categories:
Home appliance panel precision electric screen printing machine
Logo sign flip type screen printing machine
IMD precise screen printing machine
Blister injection T-slot screen printing machine
Instrument panel vacuum suction screen printing machine
Film button ultra-precision screen printing machine with automatic stacker
The operating categories of TAMPRINTER printing equipment in the electronic optics industry are as follows:
Light guide plate dust-free workshop screen printing machine
Mobile phone glass cover to prevent dripping oil screen printing machine
PCB green oil solder paste screen printing machine
FPC precision register screen printing machine
High-volume and rapid production of printers for electronic originals
TAMPRINTER's business categories in the apparel leather industry are as follows:
Mark mark automatic screen printing machine
Garment fabric roll-to-roll drying tunnel furnace
Luggage hot stamping machine
High-speed screen printing machine for shoe material
The business categories of TAMPRINTER in the transfer heat transfer industry are as follows:
Ceramic floral paper vertical screen printing machine with LED UV curing system
Wine label water transfer to prevent deformation low temperature ultraviolet ray dryer
Cycling decal and color screen printing machine with automatic stacker
Mark heat transfer infrared industrial tunnel furnace
Equipment transfer screen printing dryer
TAMPRINTER's business categories in the home improvement board industry are as follows:
Decorative glass large size flat screen printing machine
Integrated ceiling screen printing production line
Mupei building material varnish curing machine
TAMPRINTER's business categories in the sports equipment industry are as follows:
Bicycle decal continuous screen printing machine with drying production line
Cue Fishing Tackle Curved Screen Printing Machine
Fitness equipment pad printing hardware infrared oven
Outdoor supplies screen printing auxiliary equipment
