TAM-Z4 Hot Sale Plastic Thin Sheet Clean Room Screen Printing Machines
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Place of Origin:
China
Model Number:
TAM-Z4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TM-Z2A Screen Printing Machine Automatic Membrane Switch Screen Printing SetNegotiableMOQ: 1 Set -
TM-Z1 UV Ink Automatic Screen Printing Machine for PaperUS$ 10,000 - 13,000MOQ: 1 Set
-
Gold Glitter Powder Greeting Card Auto Screen Printing MachinesUS$ 1 - 800MOQ: 1 Set
-
Ceramic Decal Film Hot Melt Glue Automatic Screen Printing MachineUS$ 1 - 800MOQ: 1 Set
-
UV Ink Automatic Screen Printing Machine for PaperUS$ 1 - 800MOQ: 1 Set
Brand Name
Tamprinter
Place of Origin
China
Model Number
TAM-Z4
Condition
New
Product Description
Basic Info.
TAM-Z4 Hot Sale Plastic Thin Sheet Clean Room Screen Printing Machines
Advantages:
1, Electric printing runs smoothly, High precision printing;
2, Cold light source , Drying sheet is not deformed;
3, Energy saving and environmental protection, Suitable for clean room(dust-free workshop).
Technical Parameter:
Plate Type: Screen Printer
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z4
Application Scope:
machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.
Automatic Grade: Semi Automatic
Color & Page: Single Color
Warranty: screen printer 18 months, led uv machine 24months
After-sales Service Provided: Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: 20 workdays after payment
Performance & Features:

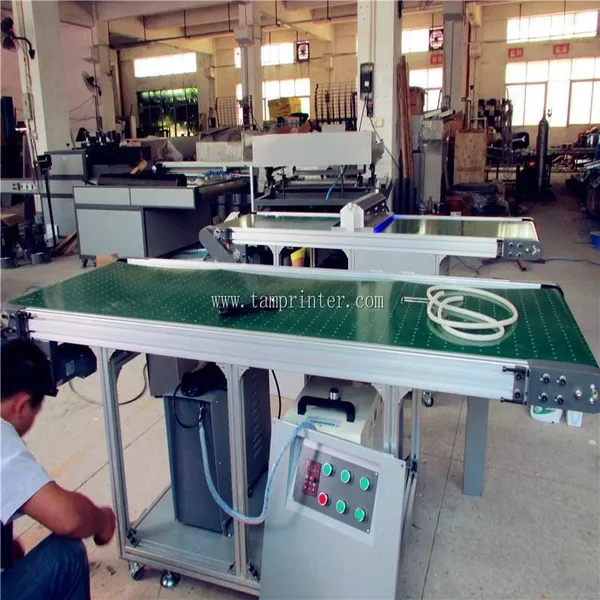

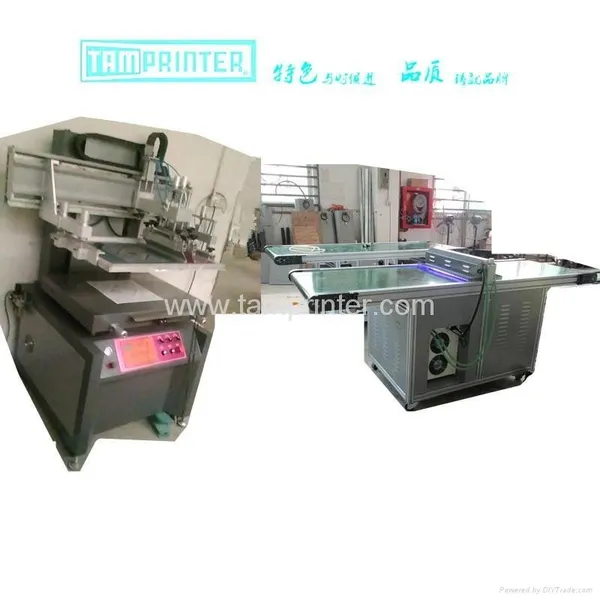

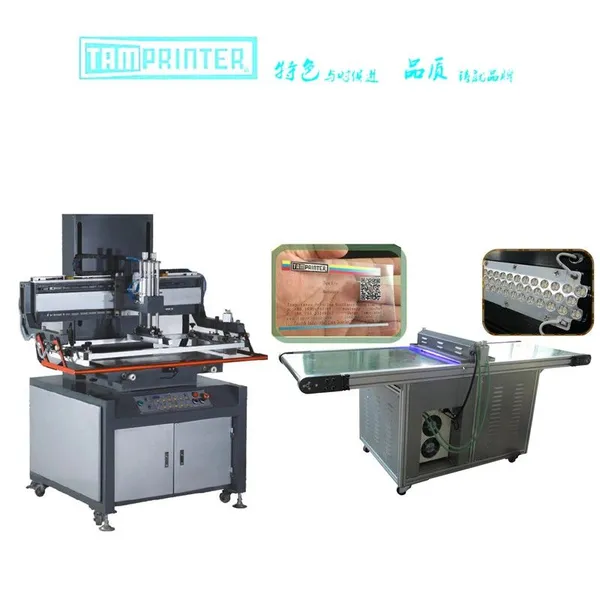

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), water-cooled system LED UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.
2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.

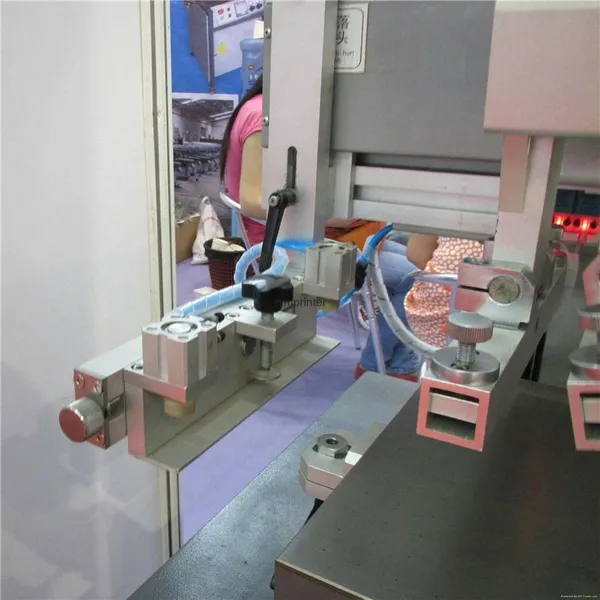

2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain
2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
Welcome to contact us if you have any question!
TAM-Z4 Hot Sale Plastic Thin Sheet Clean Room Screen Printing Machines
Advantages:
1, Electric printing runs smoothly, High precision printing;
2, Cold light source , Drying sheet is not deformed;
3, Energy saving and environmental protection, Suitable for clean room(dust-free workshop).
Technical Parameter:

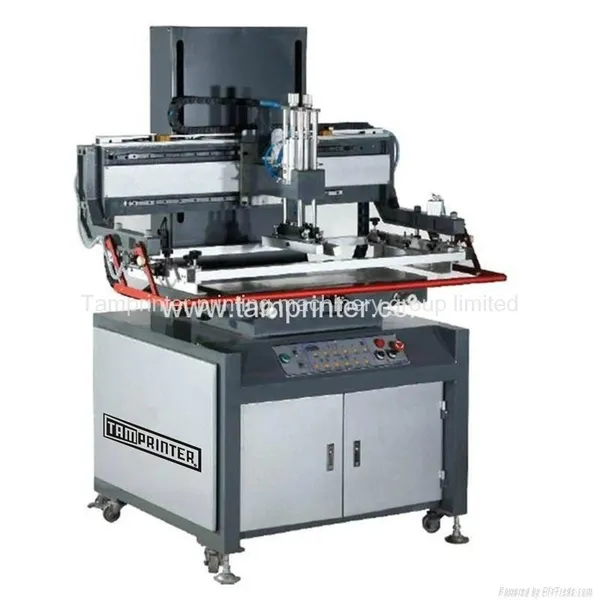

| TM-D5070 electric vertical screen printer | |
| Power | 380V 3phase or single-phase 220V |
| Lifting drive motor | Z=1.5KW |
| Printing drive motor | X=200w |
| Printing area | 500X700mm |
| Table size | 600X800mm |
| Max frame | 750X920mm |
| Printing thickness | 0~ 50mm |
| Overlay accuracy | 0.05~0.08mm |
| Platform precision | About +/-0.06mm |
| Printing pressure | 4.0-8.0 kgf/cm2 |
| Air pressure (squeegee and ink return scraper) | 0.5~0.6(Mpa) |
| Air consumption | 35L/min |
| Printing speed | 800pcs/h |
| Dimensions (LXWXH) | 1330mmX1000mmX1750mm |
| Weight | 420kg |
| Consumable | Squeegee, Aluminium Screen Frame,Silk screen mesh cloth, ink |
| TM-LED800 film LED UV tunnel dryer | |
| Power supply | single-phase 220V 50HZ 1.6kw |
| Irradiation width | 800mm Teflon Belt |
| Cooling system | water-cooled system |
| Water-cooled machine size: | 470 mm * 260 mm * 260 mm |
| Machine Dimensions (LXWXH) | 2m*1m*1.1m |
| Weight | 220KG |
| The light measurement range of values | 1000-9500mJ / cm2 |
| Led | 395 nm (2800 mw/cm2~3600 mw/cm2) |
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z4
Application Scope:
machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.
Automatic Grade: Semi Automatic
Color & Page: Single Color
Warranty: screen printer 18 months, led uv machine 24months
After-sales Service Provided: Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: 20 workdays after payment
Performance & Features:
1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), water-cooled system LED UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.
2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain
2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
Welcome to contact us if you have any question!
