Outline

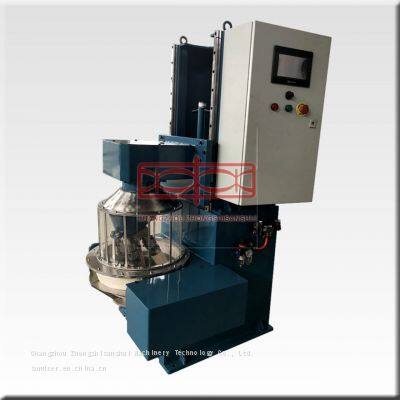

This product is a large-scale automatic grinding equipment, which is designed and produced to grind material, such as medical micro powder, super hard material micro powder, electronic micro powder, food micro powder, chemical micro powder, mineral micro powder, polymer material micro powder, dental material paste (wet grinding), ink (wet grinding) and other materials.
Performance and features
1. It is suitable for industrial mass production, either dry or wet grinding.
2. There is no blind area inside the mortar, so that the probability of the material being ground is equal, and the fineness of the powder is absolutely uniform.
3. The grinding time can be flexibly set, according to the specific requirements. The longer the grinding time is, the smaller the fineness of the ground material is. The fineness can be as small as nanometer.
4. The loss of materials can be very little, or even almost none, as the temperature hardly raises during the grinding process. Thus, this machine is especially suitable for grinding precious materials.
5. Sanitary design: the body is made of 304 stainless steel, which is especially suitable for the grinding of medicine and biological products.
Spec Chart
Item |
Unit |
Parameter |
Grinding amount per time (usually) |
kg |
5~30 |
Diameter of mortar |
mm |
600 |
Depth of mortar |
mm |
350 |
Number of grinding rods |
/ |
4 |
Revolution speed of grinding rod group |
rpm |
0-100 frequency control |
Rotation speed of grinding rod group |
rpm |
5 |
Power of grinding bar rotation motor |
w |
1500 |
Power of rotary motor of grinding rod group |
w |
550 |
Mortar material |
/ |
High alumina ceramics(corundum) |
Material of grinding rod(pestle) |
/ |
High alumina ceramics(corundum) |
Lifting mode |
/ |
Pneumatically lifted(cylinder) |
Fine tuning mode |
/ |
Electric/ power-driven |
|
The pre pressure of pressing mortar with grinding rod |
/ |
Cylinder+spring |
Pressure value of air source |
kg |
5(suggested) |
Length *width * height |
mm |
900*800*1600 |
Weight |
kg |
450 |
Voltage |
v |
380 |
Discharging mode |
/ |
Electric turning mortar, dumping and unloading |
Can automatic program be set? |
/ |
Yes |
Can the running time be set? |
/ |
Yes |
Whether there is visible glass cover in grinding space? |
/ |
Yes |
