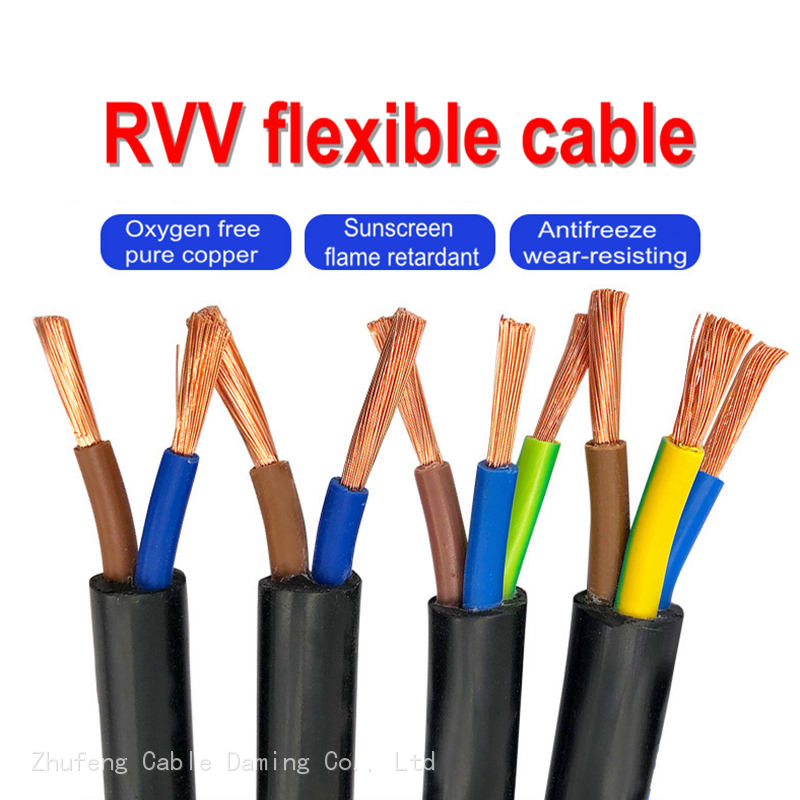

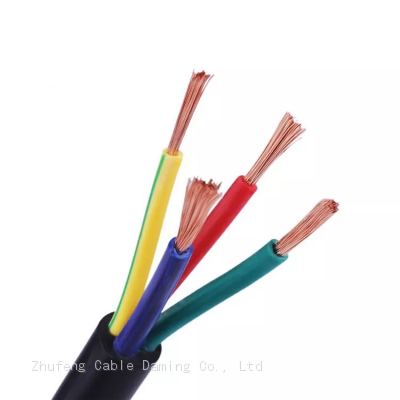

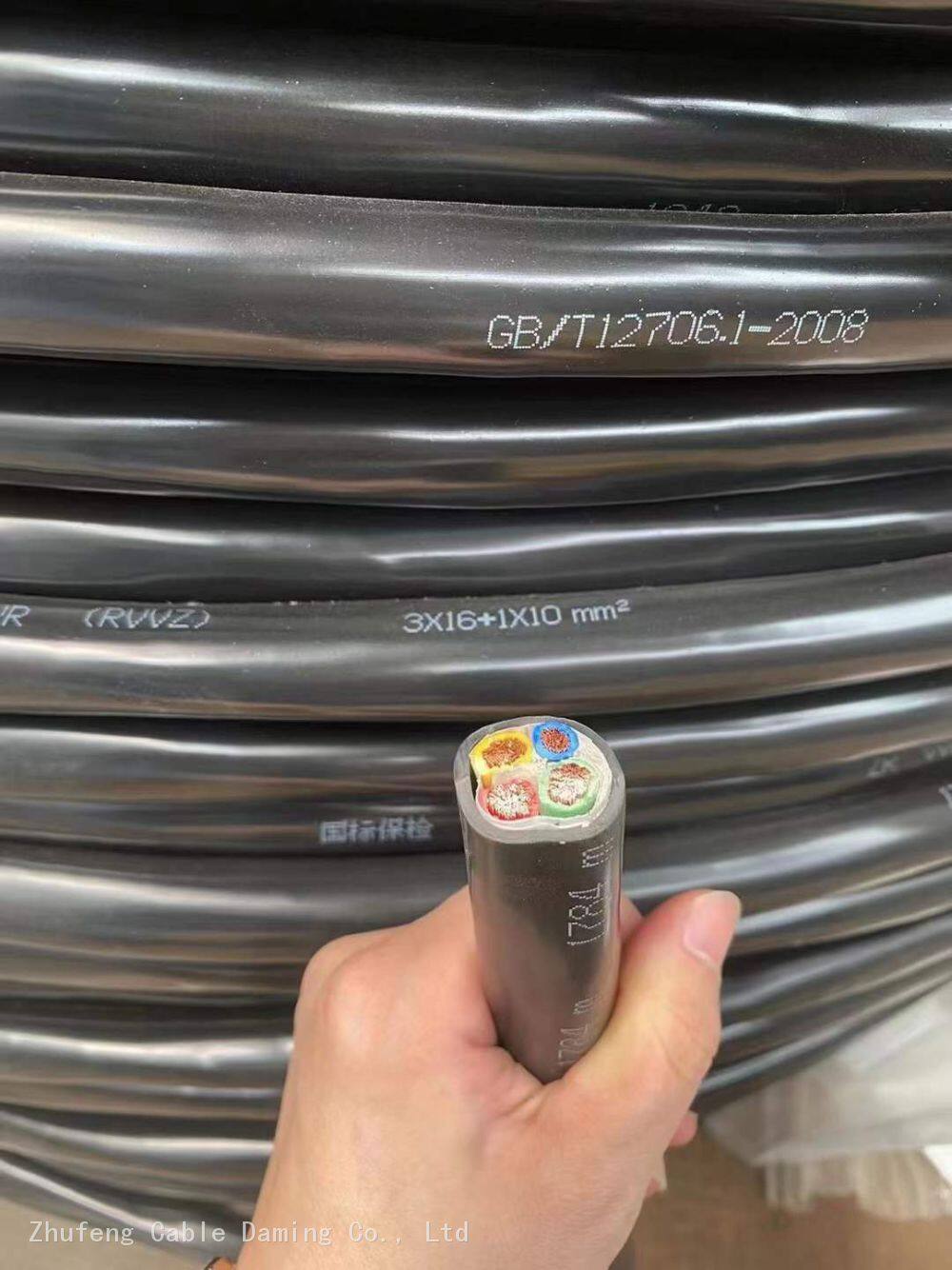

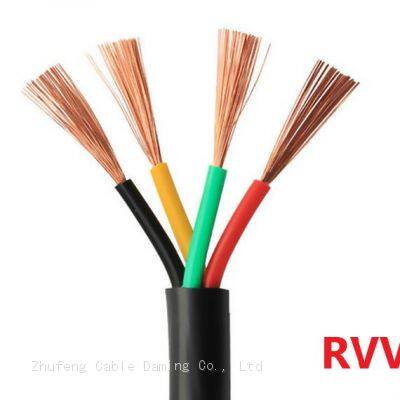

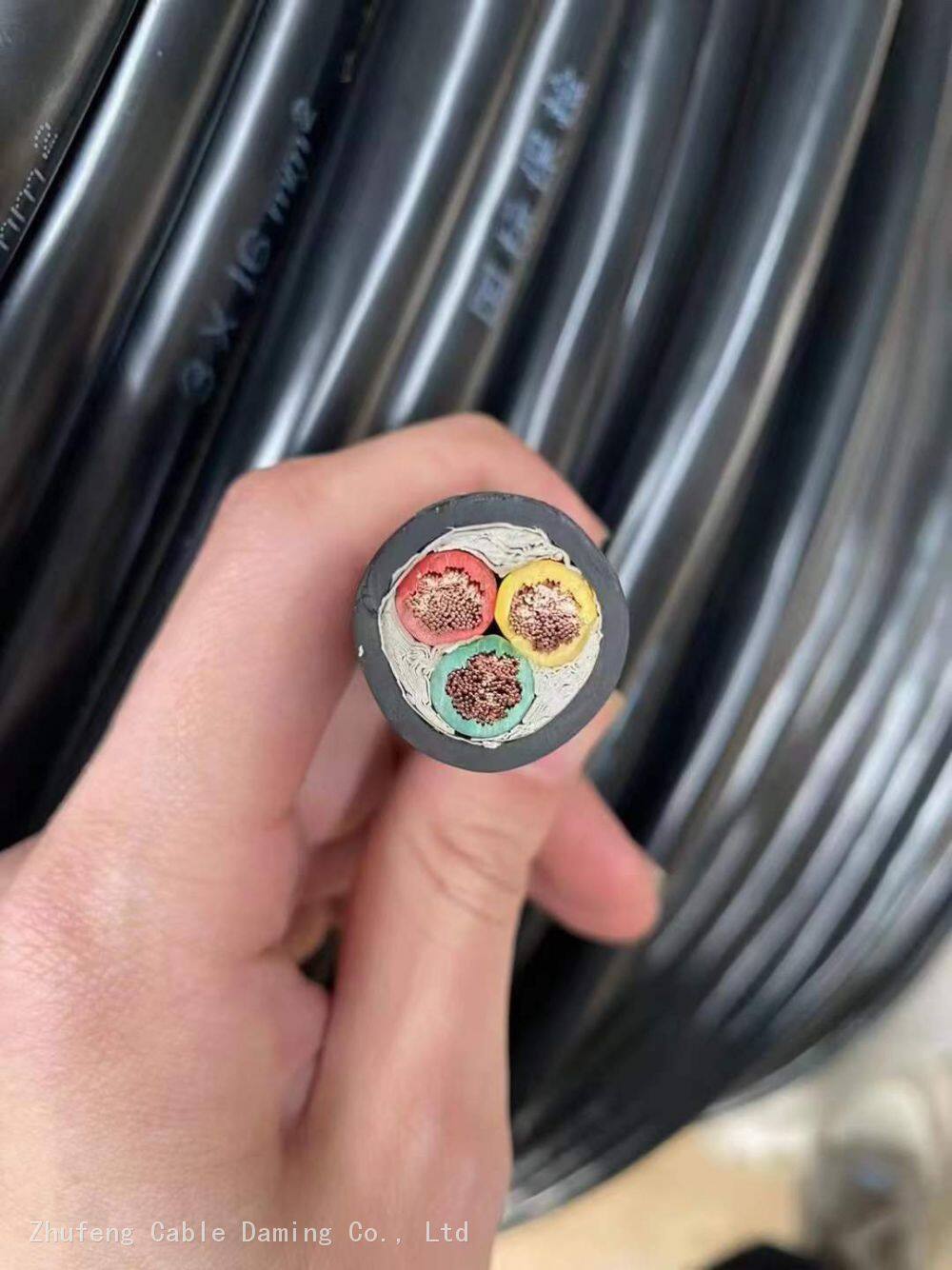

flexible cable wire pvc insulated sheath copper wire for engineering project

Product usage

This product （PVC Sheathed Flexible Insulated Wire） is suitable for weak current equipment control, communication signal transmission, broadcasting and weak current equipment power supply lines, electrical equipment, instruments, automation equipment, security and anti-theft alarm systems, high-rise building intercom systems, household lighting connection lines, etc.;

Product parameters

Product model: PVC sheathed flexible insulated wire

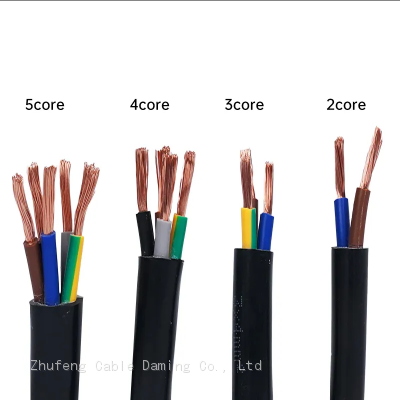

Number of product cores: 2-37 cores

Product specifications: 0.5mm²--10mm²

Product color: red, yellow, blue, green, black, two-color; other colors can be customized

Rated voltage: 300/500V

The length of the whole plate: 100 meters (national standard full meter)

Working temperature: The long-term normal working temperature of the conductor does not exceed 70°C, and the laying temperature of the wire is not lower than 0°C

Scope of application: ordinary insulated wires, household wires (such as: incoming wires, lighting wires, air-conditioning wires, etc.)

Allowable bending radius: When the outer diameter (D) of the cable is less than 25mm, the allowable bending radius of the cable should not be less than 4D; when the outer diameter (D) of the cable is 25mm or above, the allowable bending radius of the cable should not be less than 6D.
