Hopper Silos are widely used in application where routine low capacity storage and fast clean out is required, reducing the reducing the energy and labor cost of material handling.

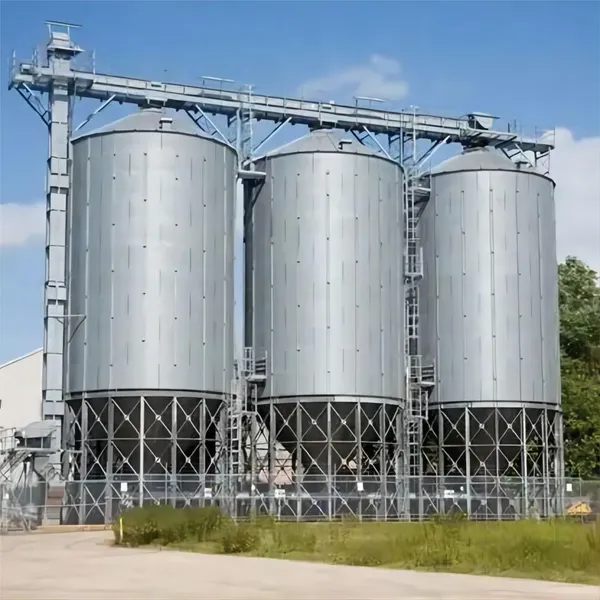

Hopper Bottom Silo Information
Hopper Silos are widely used in application where routine low capacity storage and fast clean out is required, reducing the energy and labor cost of material handling meet your needs and maximize your profitability.
Calculated based on a grain density of 0.75kg/m3, and we customizes silo systems unique for you.
Grain Silo body
1.There is steel maize silo door, and door platform on the silo body

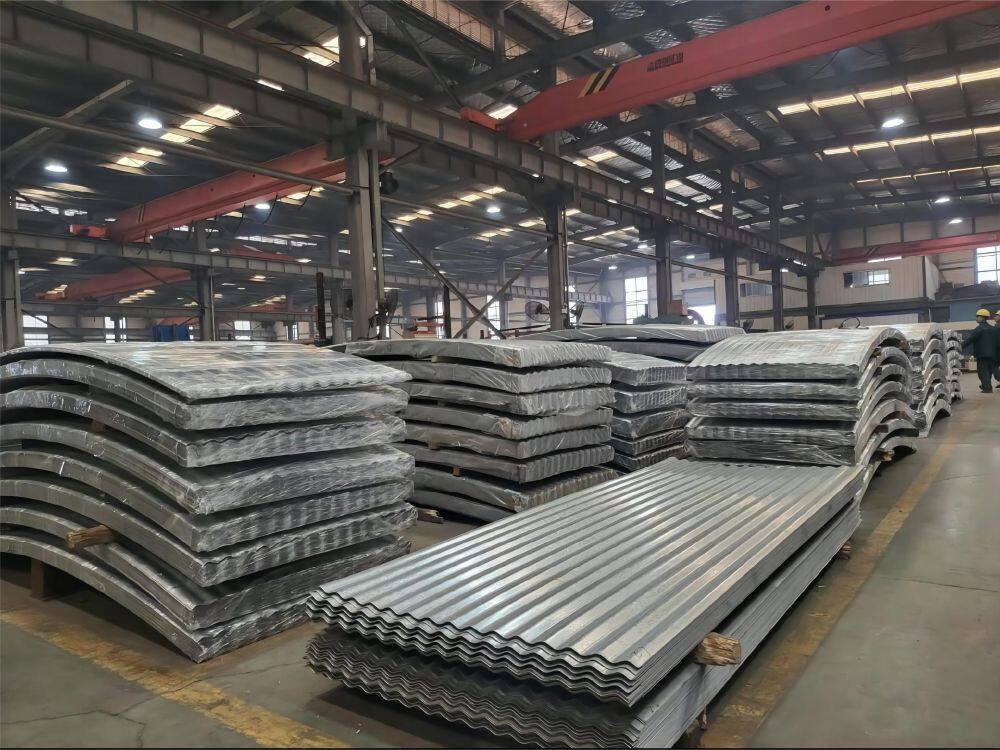

A commercial 275g/m2 double galvanized steel coating increases life and durability. 450g/m2 and 600g/m2 coating available for customized order.Each sidewall sheets are manufactured from high-tensile steel that has the ability to overcome extreme power, pressure.

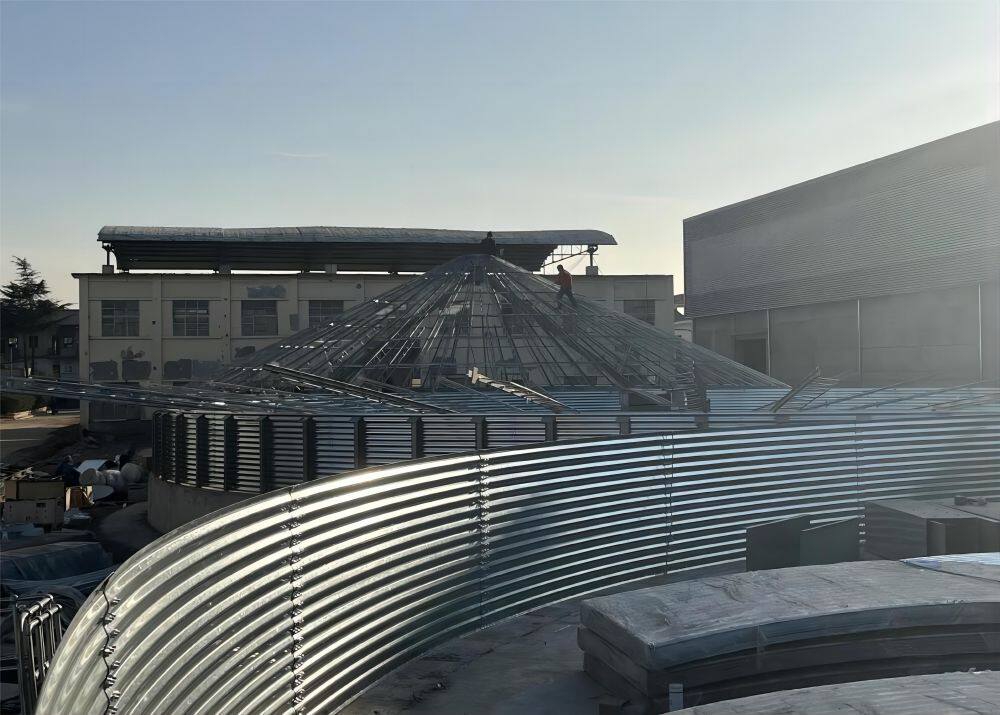

2.Grain Storage Silo roof
The roof is designed to stand up even the harshest environment of extreme snow disaster with an echo of the top and down part, strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.
People can through the manhole check the materials situation, very convenience.
3. Grain Silo Stiffeners:
Adopting high tension stiffener(can be located inside or outside silo) profiles make bins stronger allowing silos to stand well even under extreme hurricane. Base stiffener boots are coated so they won't rust over time.
4. Grain Silo Wind Ring:
For tall silos or that need to resist heavy wind. Wind ring and brackets reduce bolt holes in stiffeners; swaged technology ensure silo power load capacity.
5. Wide Flange I-Beam Support Structure:
Wide flange I-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind,snow, seismic requirements.
Our company manufacture different models hopper silos, which diameters vary from 3.67m to 12.83 m and capacity up to 2600 m³. High galvanization and perfect quality accessories obtain a longer guarantee against the puncture by corrosion. Optional steel galvanization for 275g/m2, 450g/m2, or Standard design hopper angles as 45° and 60°. It also can be manufactured according to silo diameter, stored grain features, and natural condition such as wind,seismic,snow load of the silo location.

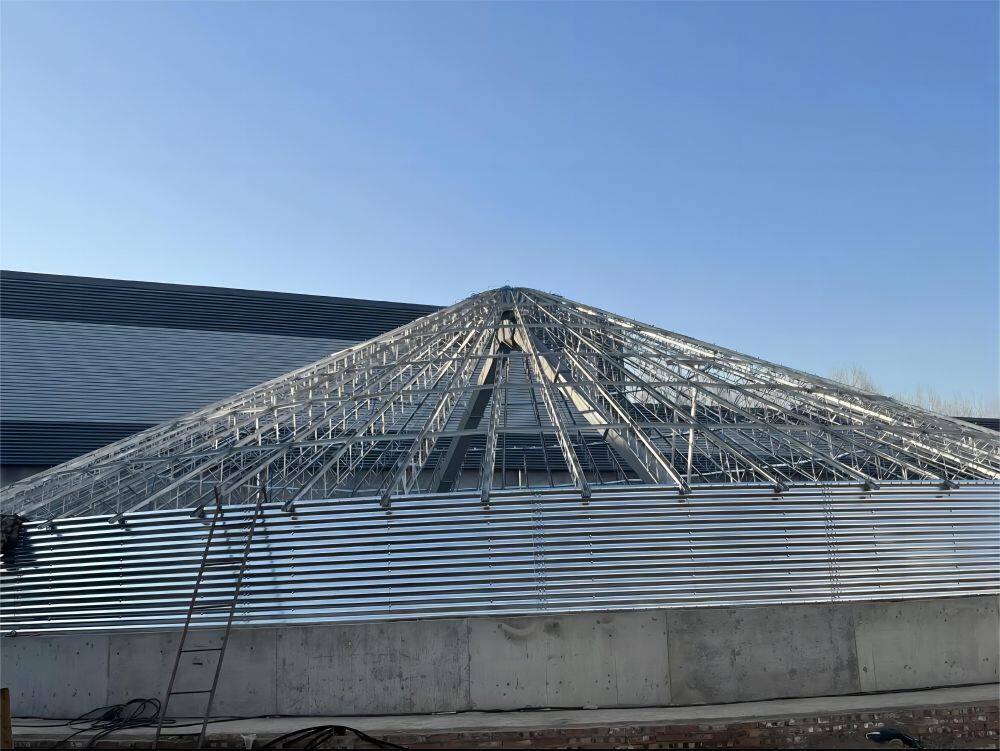

Our company's silo roof angle generally design 25 degree to 30 degree, which the design can assure the silo tress is best,maximum enasure the silo structure and safety. ring beams,rasial ribs with top cover panels,make silo stand up silo load, silo top construction load, even the harshest environment of extreme snow load etc.
2.Stiffeners
Our company's high tension outside stiffener profiles, strengthen whole silo body structure, make silo stand well even under extreme environments. All the stiffeners are totally galvanized,ensure no rusting over time.
3.Wind rings
Wind rings are used to increase the strength of silo, for tall silos or those silo location with strong wind, the wind rings can effectively strengthen the silo bearing, assure silo solid and safety.
4.High Strength Bolts
Our company use 8.8/10.9 grade high strength galvanized boltes, paired with nuts, sealing washers,cooperatively use sealing gum between steel plates,ferfectly assure t Hopper Bottom Silo sealing and solidity.
5.Manhole
Steel silos manhole is offered with two pieces. First is utilized to access from roof, the other generally locate on second bottom ring to make the worker enter into for grain residual cleaning or maintenance operations.
6.Ladder System & Rest Platforms
Silo inside and outside ladder and rest platforms are produced completely in modular form by painted or galvanized sheets. The silo external safety ladder with cages enables workers to reach roof safely.
7.Wide Flange Ring-Beam Support Structure
Bracing system is designed for a maximum support to whole silo load especially with consideration of wind and seismic requirement. If the silo diameter≥10m, two rings of support structure needed.

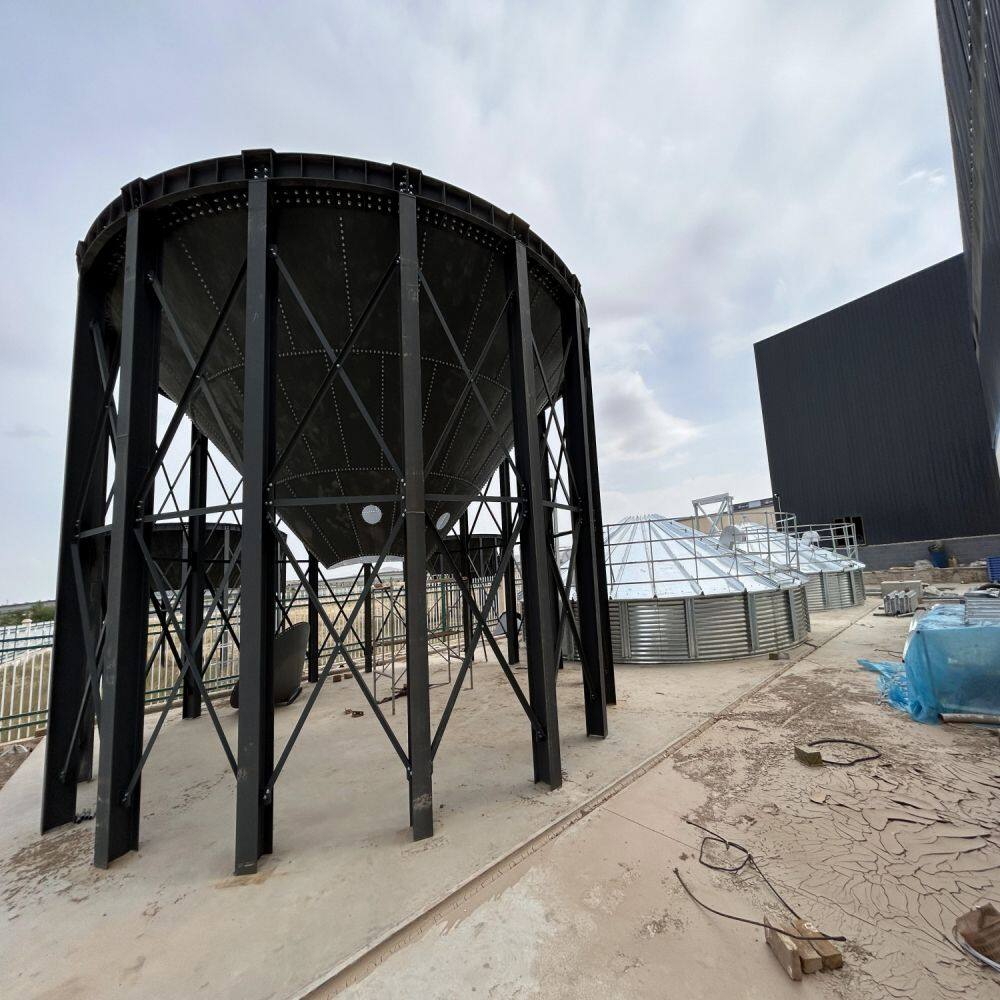

8.Hopper Bottom
Our company assured solid hopper bottom silo structure with strengthened ring beam, supporting legs, tie pieces. All these parts strengthen the heavy silo hopper load and whole silo structure.
9.Supporting Legs
The silo supporting legs with tie pieces, by using high strength H steel, the silo supporting legs quantity varies from the hopper silo capacity.
Hopper Bottom Steel Silo 30° Silo Roof 45°Hopper Bottom Height of silo bottom outlet flange is based on silo project specific situation. Silo volume is the sum of silo roof, silo body and silo hopper bottom. Capacity is calculated at 0.75t/m3 bulk material density.
