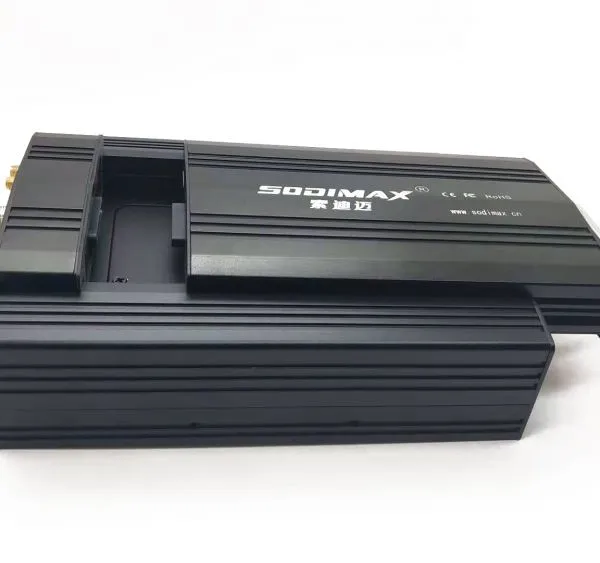

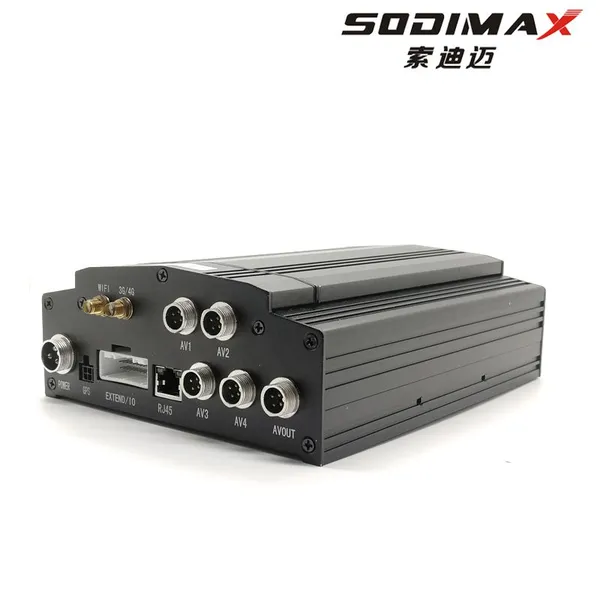

Vehicle Number Plate Recognition Wireless CCTV Video Recording 5g 4G Intelligent Mobile DVR

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Port Shenzhen Port
Payment TermsT/T L/C D/P D/A
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sodimax	Place of Origin	China
Model Number	SDM718-4G-GPS	Type	Analog Camera
Special Features	Vandal-proof	Technology	NetWork
Sensor	CCD	Style	Dome Camera

Product Description

3G Mobile DVR is mainly used for vehicle fleeting management with live video and monitoring ,and you can know where the vehicle is with GPS tracking especially necessary for school bus or goods truck or bank money carrying cars. Live monitoring what they are doing. Welcome you.

1. 4 Channel Bus security with 3G GPS WIFI for option
2. Deter bullying, fighting behavior, Data protection
3. Front, side, back 360 degress recording to monitor your vehicle
4. 3G live and tracking with PC or Mobile Phone

How the MDVR works?

1. One MDVR with 3G GPS WIFI G-sensor for Option

2. 1~4 cameras with extension cables

3. One monitor for the driver

4. HDD 500GB/1TB/2TB

5. Micphone, Talkback device, Panic button

The MDVR is a DVR Black Box Recorder system that records both the inside and outside of your vehicle to prove what really happened in any situation.

The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days

of footage can be saved to its hard disk to ensure a moment is never missed.

All video recorded is full D1/720P. The DVR device is a power managed and wide voltage +8V~+32VDC.

It is designed for all commercial vehicles, especially those that carry passengers.

Main Features

4CH, Support 4 cameras
H.264 compression format
64GB SD Card
2.5“ SATA 2TB Hard disk
GPS tracking
3G remote control
Built-in WIFI for option
6 alarm input, 1 alarm output
2 way intercom
Remote oil&power cut-off
Mirror recording in SD card
Patent UPS continuously working to protect data upon sudden power-off
Customized GPS data format sending(optional)
Built-in Heater(optional)
Lockable, metal HDD handle, protect HDD efficiently
Watermark and Time/Date stamp in exported images

Specification

Item			Description
OS			Linux
Graphics Operation Interface			System parameters can be set through external display and remote controller
Security Management			2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview	Video Input, Output		4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
	OSD		Character superposition function, information superposition of time and date, device ID and GPS, etc.
	Video Compression Format		Compression coding. Applying hisilicon hi-performance processor.
	Dual-Stream		Supported
	Preview Function		Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images
	Frame Rate		PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
	Resolution		CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most
	Quality		Grade 1 to grade 5 for selection (descending)
	Bit Rate		CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection
Audio	Audio Input, Output		4-channel input, 1-channel output
	Compression Format		G.726 coding
Recording	Storage Medium		Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;
	File Format/ System		ASF/FAT32
	Video Strategies		Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
	Video Search		Searching by time, type, storage device and other conditions
	Video Playback		Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
			Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm	Alarm Input/ Output		6-channel on/off signal alarm input, 1-channel on/off signal alarm output
	Alarm Recording		Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
	Storage Space Alarm		Supporting settings for alarm of storage space
	Function Alarm		GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports			RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional)			Supporting Wi-Fi;
GPS (Optional)			Supporting external GPS
PTZ Control			Supporting PTZ control realized by local;
Parameter Configuration			Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor			Embedded
System Upgrading			Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption		Power Supply	1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off
		Input Voltage	DC:+8V ~ +36V
		Output Voltage	+12V@4*0.5A; +5V@0.5A
		Power-off Protection	With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
		Power Consumption	<10W in normal operation; <0.5W in standby mode
Operating Environment		Temperature	Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
		Humidity	10% to 95%
Dimensions			160(W) x62(H) x200(D) mm.
Weight			Net: 2200g, Gross: 3500g

FAQ

1)Is the GPS polling configurable? If so where can this be done?

Re:GPS polling is configurable. For the DVR local settings, we didn't make the interface to show such settings, because it is a kind of protection. If you need, we could also make a interface for such settings. By our current version, you could only set the GPS polling frequency by the server config( it means you have to set up your own server, then you could set the frequency by your own need)

2)Is it possible to rename the alarm inputs? For example in burglary or SOS?

Re:Yes, othe model above supports 6 alarm inputs, such 6 alarm signals are customize for you, it means you could set different alarm signal to replace the original ones.( like you could set door open or window broken as the inputs, this is no problem)

3)Can you explain where we can see (in the client) when an alarm input is triggered? We tried it and saw a car blinking on the map, but there was no report visible. The alarm input was activated by a positive 12V (manual page 15 art. 2.3.6).

Re: As for the alarm list, you have to set the signals firstly, please click the above “setting” menu, then find “alarm linkage”, then there are many options for the signals, you could tick which you need, and upload a MP3 sound as alert. Please try and check.

4)Where can we configure the email notifications in case of an alarm?

Re:In fact, only when you set up the server, then you could configure the email notification by our server

software.

Our Advantages

1. Our dvr has the world class anti-vibration technology,widely used in military .It is very long lifetime for over 10 years.
2. We are professional manufacturer,who can offer you great price and technology support.
3. We have a very warm and capable technical team,who can customize many projects for you.We have many examples .Please check our offical website.
4. Great Service.

If you're interested in the system above, please be free to get the high-quality solution and system with us.
