Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS
1. Sodimax offer a wide selection of mobile digital video recorders, Car cameras, monitors, the complete
system, suitable for a range of in-car security and surveillance applications, from managing safety to improving vehicle performance.
2. The benefits of installing a mobile surveillance system include reducing unauthorized use of vehicles by capturing unapproved use of your vehicles during non-work hours; controlling fuel costs by eliminating
unapproved or extended journeys; and increasing vehicle safety and security with 24/7.
3. Mobile DVR are designed to withstand the rigors of continuous use in a range of vehicles, on the road and off it. And with advanced features like built-in GPS, G-sensor, anti-shock housing, Overvoltage protection, 4G, Hotspot and ect.

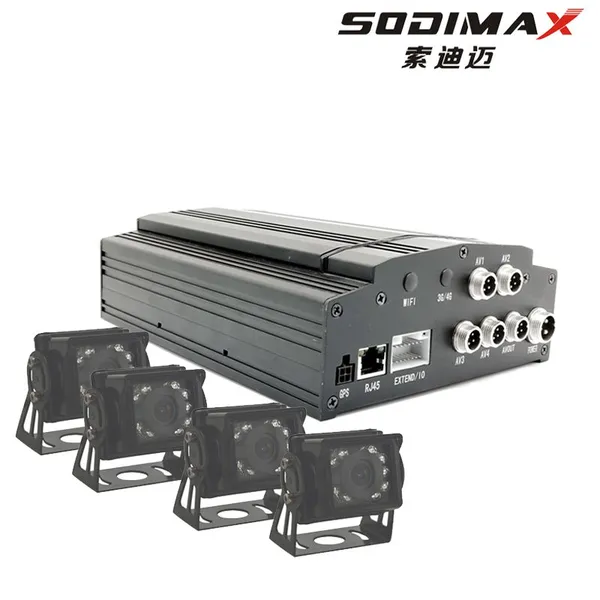

The complete kit:
1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 1~4 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button
1.Standard configuration
MDVR host 1pc
Power cable 1pc
I/O Cable 1pc
Standard cables 5pcs
Remote control 1pc
keys 1pc
3G/4G Antenna 1pc
WIFI Antenna 1pc
GPS Antenna 1pc
User manual 1pc
2.Optional configuration
Monitoring Cameras 1~4 pcs
LCD monitor
Extension cables
Storage card
Talkback device/Micphone
Oil sensor/People Counter and ect.
Main Features
1. H.264 Video Compression, multiple steam recording, Support 4CH 720P HD video recording,
Support 4CH 720P AHD input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input;
2. High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;
4. Support 12VDC/2.5Amp output voltage, power supply for Camera/Screen etc;
5. 1SSD/HDD+1SD Card Support, each max 2TB+128GB,,protect DVR from shock & Dust damage;
6. Watchdog abnormal restart function, protect SD Card and Record;
7. Exclusive File System protect data completeness,prevent SD Card fragment;
8. ACC Delay off, can set 24 hours;
9. Auto Record/Manual Record/Alarm Record/Timed Record etc
working mode to meet different requirements;
10. Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
11. Support GPS/ G-sensor Optional;
12. Optional single RS232 serial port or single RS485 extension
13. 6CH Alarm input (Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
14. 2CH Alarm Output;
15. Support picture snap when alarm
16. Easily Smart GUI Interface, saving time in device setting;
17. Can upgrade the software via SD card/HDD.
18. Stability Aviation plug, easily connecting and high shock proof.
Specifications
| Item | Description | ||
| OS | Linux | ||
| Graphics Operation Interface | System parameters can be set through external display and remote controller | ||
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | ||
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω | |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | ||
| Video Compression Format | Compression coding. Applying hisilicon hi-performance processor. | ||
| Dual-Stream | Supported | ||
| Preview Function | Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images | ||
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | ||
| Resolution | CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most | ||
| Quality | Grade 1 to grade 5 for selection (descending) | ||
| Bit Rate | CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
| Audio | Audio Input, Output | 4-channel input, 1-channel output | |
| Compression Format | G.726 coding | ||
| Recording | Storage Medium | Supporting one 2.5" hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; | |
| File Format/ System | ASF/FAT32 | ||
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | ||
| Video Search | Searching by time, type, storage device and other conditions | ||
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | ||
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | |||
| Alarm | Alarm Input/ Output | 6-channel on/off signal alarm input, 1-channel on/off signal alarm output | |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | ||
| Storage Space Alarm | Supporting settings for alarm of storage space | ||
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | ||
| Communication Ports | RS232, RJ45 10M/100M self-adaptable network interface | ||
