Safety Early Warning Vehicle GPS Track Monitoring CCTV Recorder 2CH 4CH 720p 1080P HD Car Mdvr Carry 3G 4G WiFi Function 4channels HDD SD Card Car Mobile DVR

Name: Safety Early Warning Vehicle GPS Track Monitoring CCTV Recorder 2CH 4CH 720p 1080P HD Car Mdvr Carry 3G 4G WiFi Function 4channels HDD SD Card Car Mobile DVR
Brand: SODIMAX
Price: USD $4 - 5 / Piece

FOB Price

USD $4 - $5 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen Port
Payment Terms:T/T L/C PayPal
Delivery Detail:3 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

SODIMAX

Place of Origin:

China

Model Number:

SDM718-4G-GPS

Product Description

4G Real Time Recording 3G Mobile DVR CCTV for Vehicles Power 9-32V, with Circuit Protection

3G Mobile DVR CCTV system includes:

One 8CH 1080P HDD MDVR with 3G/4G GPS WIFI for option

6-8 pcs 1080p/960P/720P cameras/ 8 Analog cameras with extension cables

One Hard disk or SSD

One Monitor, Sound Pick-up, Talkback device for option

Canbus for option

Oil sensor for Option

How does 3G Mobile DVR CCTV work?

The system that records both the inside and outside of your vehicle to prove what really happened in any situation.

The 8 camera device uses 4 regular HD 1080P cameras as well as 4 HD 1080P night/day cameras.

The DVR device is a power managed and wide voltage +8V~+36VDC.

The model is designed for all commercial vehicles, especially those that carry passengers.

3G Mobile DVR CCTV Main Features

Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection

2TB HDD / SSD ,protect DVR from shock & Dust damage;

Exclusive File System protect data completeness;

ACC Delay off,can set 3- 255 mins to work;

Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.

Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;

Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;

8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

High level aviation interface,easily installation and better shockproof, more stable;.

Easily Smart GUI Interface, saving time in device setting;

3G Mobile DVR CCTV Main Specifications

Item		Description
OS		Linux
Graphics Operation Interface		System parameters can be set through external display and remote controller
Security Management		2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview	Video Input, Output	8-channel video input, 1channel video output; 1.0Vp-p, 75Ω
	OSD	Character superposition function, information superposition of time and date, device ID and GPS, etc.
	Video Compression Format	Compression coding. Applying Hisilicon hi-performance processor.
	Dual-Stream	Supported
	Preview Function	Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images
	Frame Rate	PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
	Resolution	AHD 1080P/ 720P, D1, CIF 8channel
	Quality	Grade 1 to grade 5 for selection (descending)
	Bit Rate	CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection 720P: 2048Kbps~6144Kbps
Audio	Audio Input, Output	8-channel input, 1-channel output
Audio	Compression Format	G.726 coding
Recording	Storage Medium	Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
	File Format/ System	Special file system
	Video Strategies	Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
	Video Search	Searching by time, type, storage device and other conditions
	Video Playback	Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files
	Video Playback	Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm	Alarm Input/ Output	8-channel on/off signal alarm input, 1-channel on/off signal alarm output
	Alarm Recording	Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
	Storage Space Alarm	Supporting settings for alarm of storage space
	Function Alarm	GPS overspeed alarm, acceleration alarm, motion detection alarm

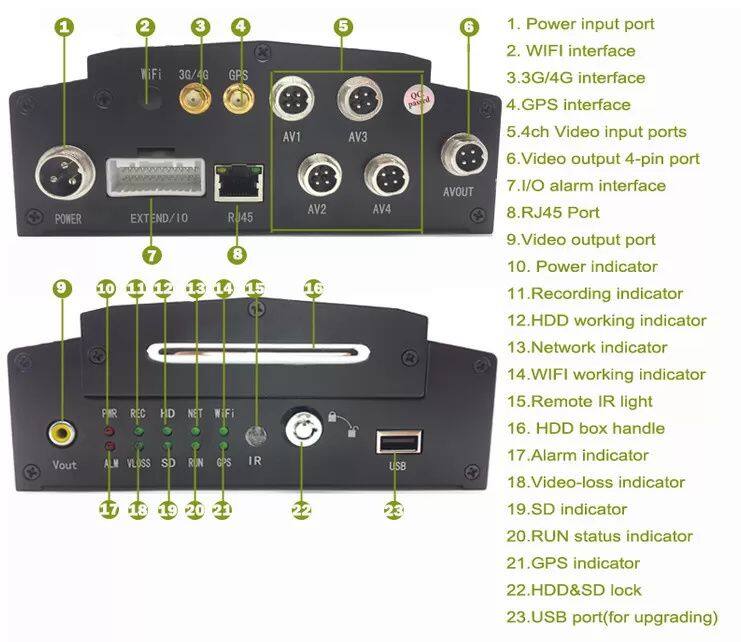

Communication Ports		RS485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional)		Supporting Wi-Fi;
GPS (Optional)		Supporting external GPS
PTZ Control		Supporting PTZ control realized by local;
Parameter Configuration		Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor		Embedded
System Upgrading		Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption	Power Supply	1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off
	Input Voltage	DC:+8V ~ +36V
	Output Voltage	+12V@5*0.5A;
	Power-off Protection	With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
	Power Consumption	<10W in normal operation; <0.5W in standby mode
Operating Environment	Temperature	Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Operating Environment	Humidity	10% to 95%
Dimensions		160(W) x62(H) x200(D) mm.
Weight		Net: 2200g, Gross: 3500g
