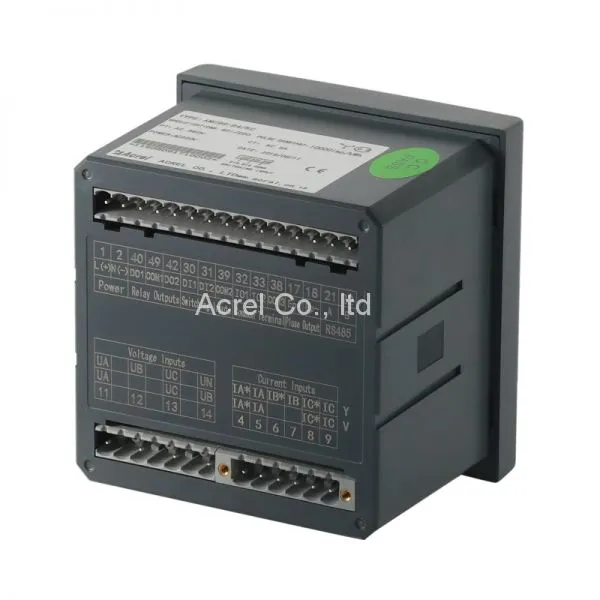

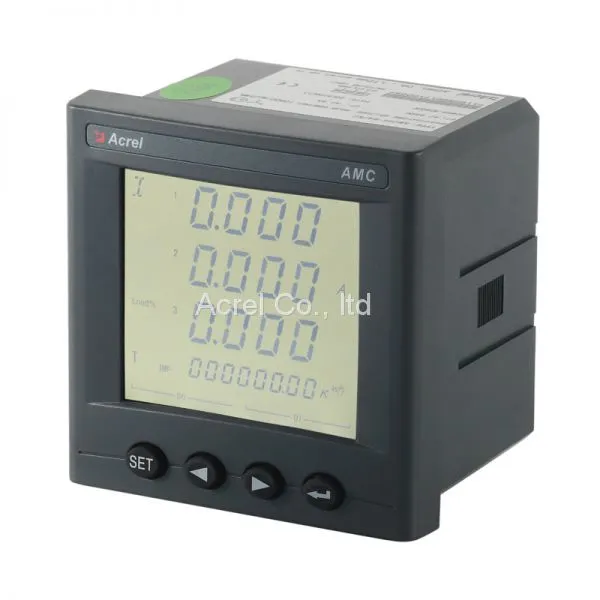

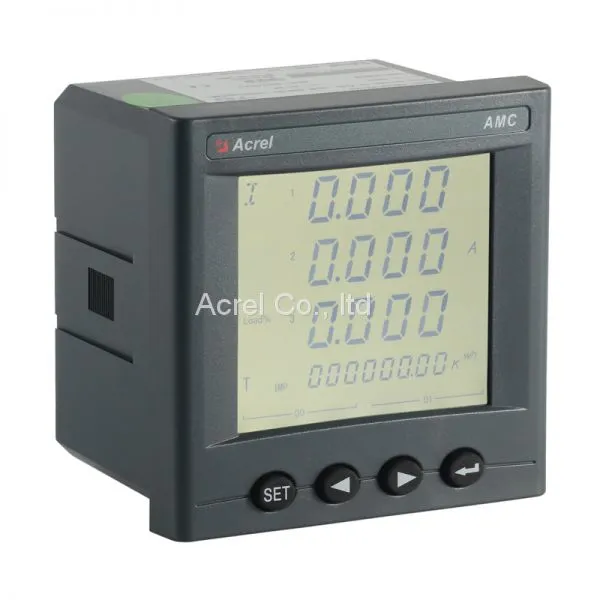

Acrel AMC96L-E4 Multifunction Meter Lcd Display 3 Phase Power Metering
- Shanghai
- T/T L/C
- 7 days
You May Like
-
AMC72L-AI Acrel Voltage Current Power Meter Display Single Phase Current Meter
-
Acrel Three Phase Lcd Display AMC72L-AI3 Power Ammeter Meter
-
Acrel AMC72L-AI/C LCD Digital Single Phase Current Monitor Panel Meter With Rs485
-
Acrel AMC72L-AV Single Phase Voltage Meter With LCD Display
-
ACREL AMC72L-AV3 Three Phase Lcd Display Digital Panal Voltmeter AC100V
-
AMC72L-AV3-C Acrel Voltmeter Accuracy 0.5 Digital Smart Three Phase Voltage Meter
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | AMC96L-E4 | Phase | Three Phase | |
| Operating Temperature | -20~+60℃ | Dimensions | 75*75mm | |
| Display Type | Analog and Digital | Accuracy Class | 0.7 |
Product Description
General
AMC series intelligent power collection and monitoring device is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. It integrates measurement of power parameters (such as single-phase or three-phase current, voltage, and active power). Power, reactive power, apparent power, frequency, power factor) and power monitoring and assessment management. At the same time, it has a variety of peripheral interface functions for users to choose: with RS485 communication interface, MODBUS-RTU protocol can meet the needs of communication network management; 4-20mA analog output can correspond to measured electrical parameters, meet DCS Such interface requirements; with switch input and relay output can realize the function of "remote signal" and "remote control" of circuit breaker switch. High-brightness LED/LCD display interface, parameter setting and control through buttons, ideal for real-time power monitoring systems. Can directly replace conventional power transmitters and measuring instruments. As an intelligent, digital front-end acquisition component, the instrument has been widely used in various control systems, SCADA systems and energy management systems.
Technical Parameter
Technical Parameter | Value | ||
Input | Connection | 3 phase 4 wire | |
Frequency | 45~65Hz | ||
Voltage | Rating:AC 100V,400V | ||
Overload: 1.2 times rated value(continuous); 2 times rated value(1 second) | |||
Power consumption:<0.5VA | |||
Current | Rating: AC 1A,5A | ||
Overload: 1.2 times rated value(continuous); | |||
Power consumption:<0.5VA | |||
Output | Energy | Pulse width:80±20ms | |
Pulse constant: 10000,40000,160000 imp/kWh | |||
Communication | RS485(Modbus-RTU) | ||
Function | Switching input | 2 channels or 4 channels passive contact input mode | |
Switching output | Output mode:2 channel relay NO contact output | ||
Analog output | Contact capacity: 3A/30V DC, 3A/250V AC | ||
Accuracy | Frequency:0.05Hz,current,voltage:class 0.2, reactive | ||
Auxiliary power supply | AC/DC 85~265V | ||
Power consumption | ≤10VA | ||
Insulation resistance | ≥100MΩ | ||
Environment | Temperature | Operating: -10°C~+55°C Storage: -25°C ~+75°C | |
Humidity | ≤93%(no condensation) | ||
Altitude | ≤2500m | ||
Dimensions
Outline(unit :mm) | Panel Size | Housing Size | Cut-out | ||||
Width | Height | Width | Height | Depth | Width | Height | |
96 square | 96 | 96 | 90 | 90 | 77.8 | 92 | 92 |
