Home > Products > ADL Series Prepayment Meter > Acrel single-phase pre-paid watt-hour meter ADL200-NK AC pre-paid control, load control, time control and RS485 communication.

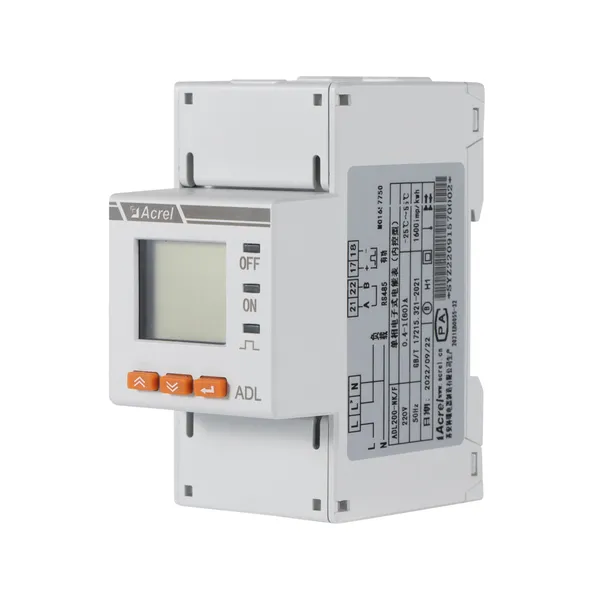

Acrel single-phase pre-paid watt-hour meter ADL200-NK AC pre-paid control, load control, time control and RS485 communication.
- 100 Piece / Pieces per Month
- T/T
- Acrel ADL200-NK/F single-phase smart energy meter pre-paid control, load control, time control and RS485 communication.
- Acrel din railADL200-NK/WF single-phase smart energy meter load control, time control pre-paid control and so on
- Acrel ADL400 RS485 Communication Three Phase Din Rail Electricity kWh Power Consumption Monitor Energy Meter
- Power Quality Meter ADL400 Din Rail Installed With WiFi Communication With CE Certification 3 Phase Electric Meter For Sale
- Acrel ADL400 RS485 Communication Three Phase Din Rail Electricity kWh Power Consumption Monitor Energy Meter
- Acrel UL DJSF1352-RN DC Power Monitoring Energy Meter With Rs485 Modbus-RTU For Solar Pv Battery Charging Plie
Product Description

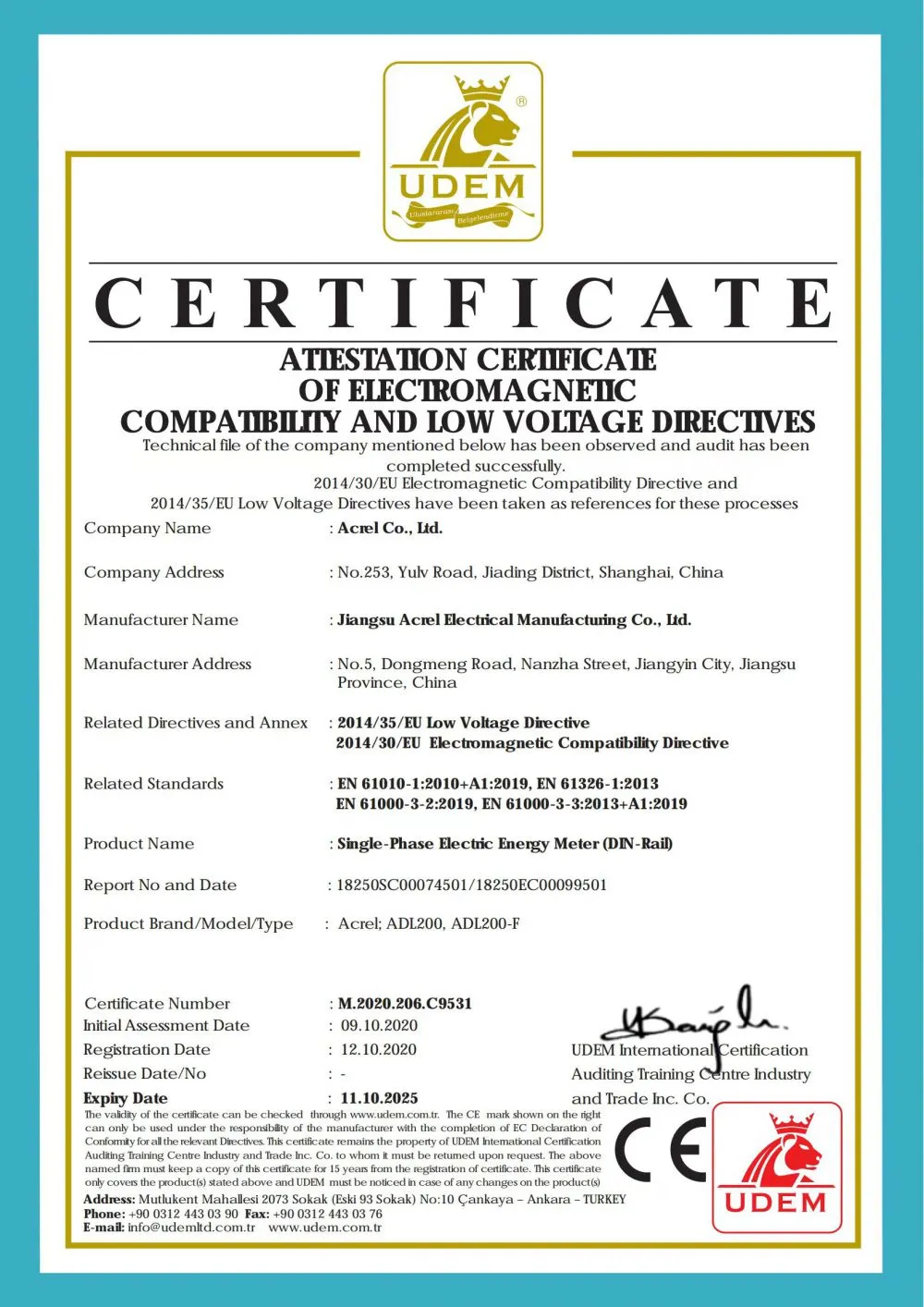

ADL200 single-phase electronic watt-hour meter is mainly used to measure single-phase active energy in low-voltage networks. It can also measure voltage, current, power and other electricity. It can also be equipped with RS485 communication function to facilitate users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize the sub-item electric energy measurement, statistics and analysis of different areas and different loads. The product meets the requirements of the national standard GB/T17215.321-2008 and the enterprise standard Q31/0114000129C035-2017 "Enterprise Standard for Rail Mounted Electric Energy Meters".
Function | Function description | Function provide |
Measurement of kWh | Single-phase active kWh (positive and negative),3 months historical energy data frozen storage | ■ |
Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency | ■ |
LCD Display | 8 bits section LCD display | ■ |
Key programming | 3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol | ■ |
Pulse output | Active energy pulse output | ■ |
Multi-tariff | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | □F |
Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | ■ |
2.Technical parameter
Input voltage | Reference voltage | AC 220V |
Reference frequency | 50Hz | |
Power consumption | <10VA | |
Input current | Basic current | 10A |
Maximum current | 60A | |
Starting current | 4‰Ib | |
Consumption | <4VA | |
Measurement performance | Accuracy of measuring | 1 class |
Range of measuring | 000000.00~99999999kWh | |
Clock accuracy | Error≤0.5s/d | |
Active pulse | Pulse width | 80±20ms |
Pulse constant | 1000imp/kWh | |
Communicati on | Interface | WIFI,RS485(A+、B-) |
Connection mode | Shielded twisted pair conductors | |
Protocol | MQTT, MODBUS-RTU |
Temperature range | Work temperature | -25℃~55℃ |
Storage Temperature | -40℃~70℃ | |
Relative humidity | ≤95%(No condensation) | |
Altitude | <2000m |
