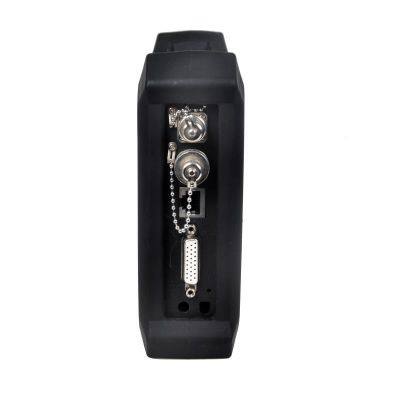

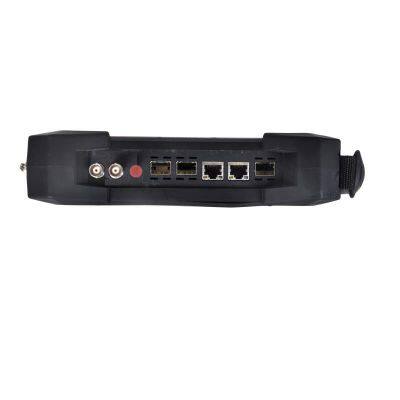

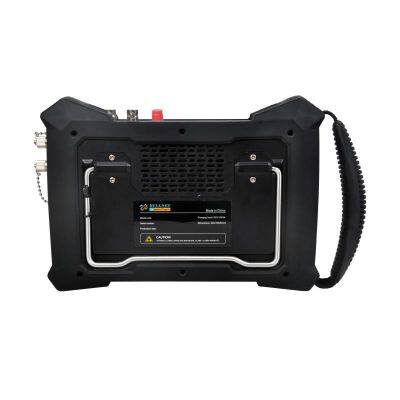

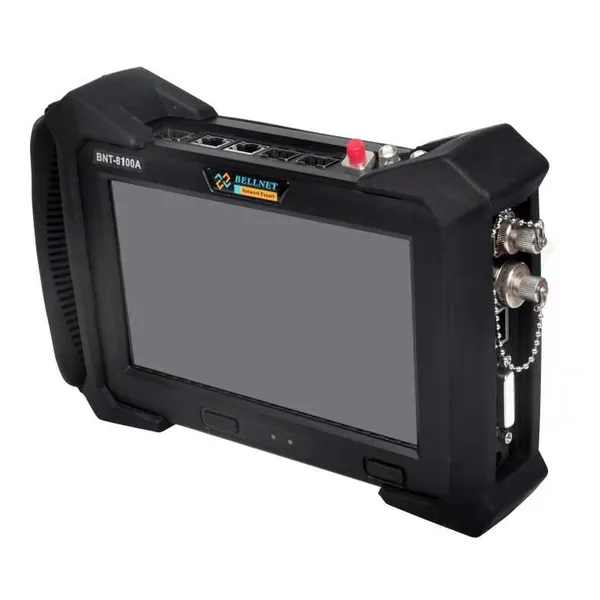

BNT-8100A is a Multi Interface Comprehensive Testing Instrument That Integrates 10/100/1000M Ethernet Optical and Electrical Ports, E1 Interface, PRI Call Interface, V.35/V.24 Interface, Optical Power Meter and Red Light Source Interface. It Can Support R

The original intention of our instrument design is to hope that every engineer who uses our products can easily and quickly solve all tasks in different scenarios with just one instrument. Therefore, the BNT-8000A instrument is highly integrated with multiple physical interfaces such as 10/100/1000M Ethernet, OTDR, red light source, and optical power meter. This product can help maintenance engineers solve important customers' problems with MSTP dedicated lines, IPRAN/PTN circuit and IP dedicated line access bandwidth are questioned, and the simple and easy-to-understand high-speed PING function helps maintenance engineers quickly locate the fault point.

Features:

.Suitable for dedicated line bandwidth verification and rapid troubleshooting of telecom operators, government and enterprise customers, and group customers.

.It is suitable for China Southern Power Grid, State Grid, etc. to conduct routine inventory, status registration, topology sorting, etc. of intranet equipment assets, reducing workload.

.Suitable for military, railway, petroleum, electric power and other private network testing

.10/100/1000M Ethernet test

.10/100/1000M independent dual electrical interface and dual optical interface

.Automatically identify 10/100/1000M network services

.Support RFC2544 standard throughput, delay, jitter, and back-to-back testing

. Equipped with RFC2544 remote loopback and dual-machine test mode

.Traffic generation and online monitoring, historical event list

.Supports passthrough, packet capture, and traffic statistics functions

.With L1 to L4 layer loopback function

.Routing equivalent loopback

.Line speed PING test

.Support network discovery, detect and discover the intranet link layer topology, and intuitively display the intranet hierarchy.

.Support aggregation ports to implement point-to-point and point-to-multipoint testing without looping.

.Support loop discovery and visually verify loop status.

. 7.0-inch touch screen, professional and fast user experience

.Intelligent operation, test results can be obtained quickly

1. 10/100/1000M Ethernet test

.10/100/1000M independent dual electrical interface and dual optical interface

.Automatically identify 10/100/1000M network services

.Support RFC2544 standard throughput, delay, jitter, and back-to-back testing

. Equipped with RFC2544 remote loopback and dual-machine test mode

.Traffic generation and online monitoring, historical event list

.Supports passthrough, packet capture, and traffic statistics functions

.With L1 to L4 layer loopback function

.Routing equivalent loopback

.Line speed PING

.Support MSTP test function

.Support IPRAN/PTN circuit testing

.Support network discovery, detect and discover the intranet link layer topology, and intuitively display the intranet hierarchy.

.Support aggregation ports to implement point-to-point and point-to-multipoint testing without looping.

.Support loop discovery and visually verify loop status.

2. Optical power meter/red light source test

.Optical power test wavelength: 850/980/1300/1310/1490/1550

. Test range: 800nm~1700nm

. Red light source working wavelength: 650nm

.Fiber output power:>10mW

3. Optical power meter part

.Independent optical power meter interface

.Built-in optical power module

.Wavelength range: 800nm~1700nm

.Calibration wavelength: 850/980/1300/1310/1490/1550

.Probe type: InGaAs

.Power measurement range: -70dBm~+6dBm

.Uncertainty: +-0.25dB

. Linearity: 0.03dB

.Display resolution: 0.01dB

4. Red light source part

.Working wavelength: 650nm

.Fiber output power:>10mW

.Frequency flashing: always on/2Hz

5. OTDR part

.Measurement wavelength 1550nm±10nm

.Laser type pulsed FP laser

.Dynamic 20dB

.Measuring range 500m/1Km/2.5Km/5Km/10Km/20Km/40Km

. Pulse width 10ns/25ns/50ns/100ns/250ns/500ns/1us/2.5us/5us/10us

.Blind zone event blind zone <4m>

6. General characteristics

.Can store 1000 test results and can be displayed on the screen or printed

.High-resolution 7.0-inch color LCD display with LED backlight

.Internal battery polymer lithium battery 6000mA, 4.2V

.Battery operating time: 6 hours; Charging time: 5 hours

7. Environment

.Operating temperature: 0℃ to 50℃

.Storage temperature: -20℃ to +70℃

.Temperature: 5% to 90% non-condensing

.Size: 190mmx120mmx35mm

.Weight: less than 1 kg

Common scenarios

1：Transmission circuit

1) Point-to-point (or point-to-aggregation) transmission channel. Generally, the transmission network in the middle is SDH/OTN network, or IPRAN network using L2VPN. There is no routing in the middle of the customer networks at both ends, and they can directly communicate at Layer 2.

2) Operators provide routing interconnection between multiple points. Generally, the intermediate transmission network is IPRAN (MPLS VPN) network. L3 VPN is used to achieve private network isolation and bandwidth guarantee. The customer networks at both ends belong to different network segments and are interconnected through routing.

2：Internet special line (IP special line)

The operator provides each customer with a single point Internet access line to access the Internet. The network on the access device is the existing public network

3：Voice line

The physical carrier line is E1, which consists of 30 64Kbps digital channels B channel and one (usually 16 time slot) control channel D. Protocol signaling is transmitted between PBX and PSTN network through the D channel, controlling each call to occupy one B channel to transmit voice call data
