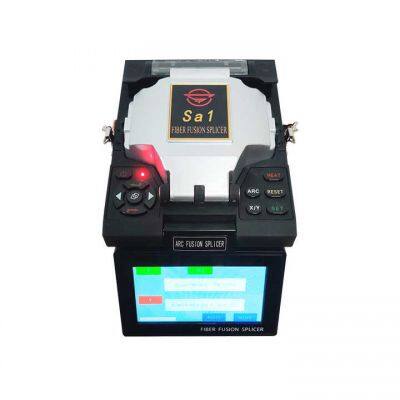

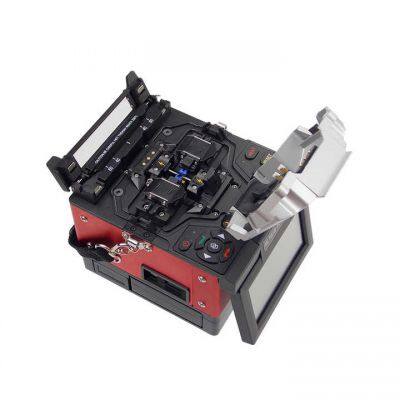

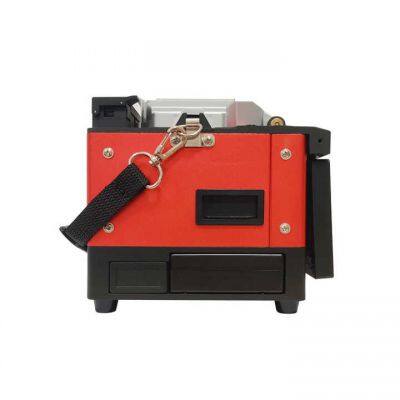

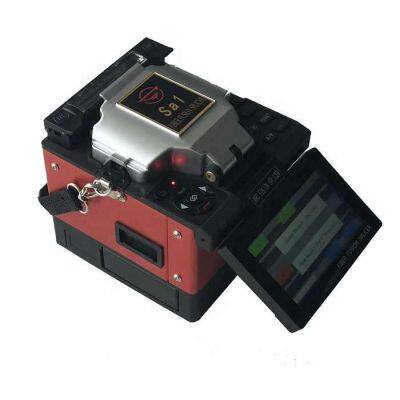

Core Alignment 6 Motors Fiber Optical Splicing Machine Fusion Splicer FTTX Splicer Device
Features:
High-power dual-LED lighting,Convenient for night operation and easier to place optical fiber
3 in 1 Universal fiber holder suitable for bare fibers, drop cables, pigtails
Stable and Precise core to core alignment,low loss
4.3-inch HD touch screen, easy to operate and flexible.
small size 130*154*132mm and light weight only 1.95kgs(Include battery)
With preheating function, shorter heat shrinkage time
Removable battery,equipped with 5200mAh battery, can splice and heated for more than 200 times
Specification:
Model | Sa1 |
Dimension | 130*154*132mm |
Weight | 1.95kg (with battery) |
Fiber holder | Muti-function, suitable for bare fibers, drop cables, pigtails, etc. |
Applicable fiber | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
Alignment Method | Core to core |
Diameter of fiber | Cladding:80-150μm, coating:100-1000μm |
Fiber cleaved length | 8-16mm |
Splicing time | 8s |
Tube heating time | 20s |
Splicing program | Many(self-regulation) |
Tube heating program | Many(self-regulation) |
Protection sleeve length | 60mm, 40mm |
Storage of splice result | 3000 results |
Typical splice loss | SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB |
Return Loss | >60dB |
Test of end-face | available |
Loss evaluation | available |
Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -20℃~+50℃;Wind speed: max 15m/s |
Storage temperature | Humidity: 0-95%, temperature: -40-+80℃ |
Fiber view magnification | 300X(X or Y view), 100X(X and Y view) |
Terminals | Mini USB, Ethernet |
Electrode life | 5000 ARC discharges |
Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V; battery capacity:5200mAh |
Accessories:
Carton Box;
10KGS/pcs
| Quantity (sets) | 1 - 20 | > 20 |
| Lead time (days) | 15 | To be negotiated |
For more customization details, message or email supplier!
