Description:
OTB-P035 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It support 16 drop cable output and cable entry without cutting.
Features:
Material: ABS+UV plastic

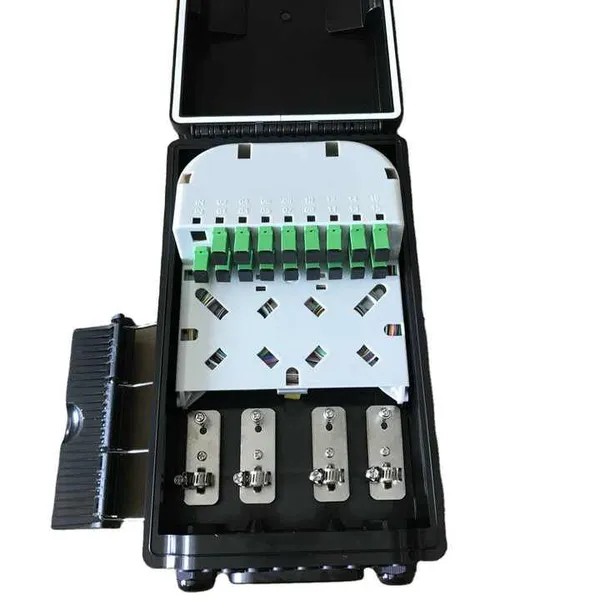

Max. 18pcs SC simplex adapter
Can load 1pc 1:16 steel tube type splitter

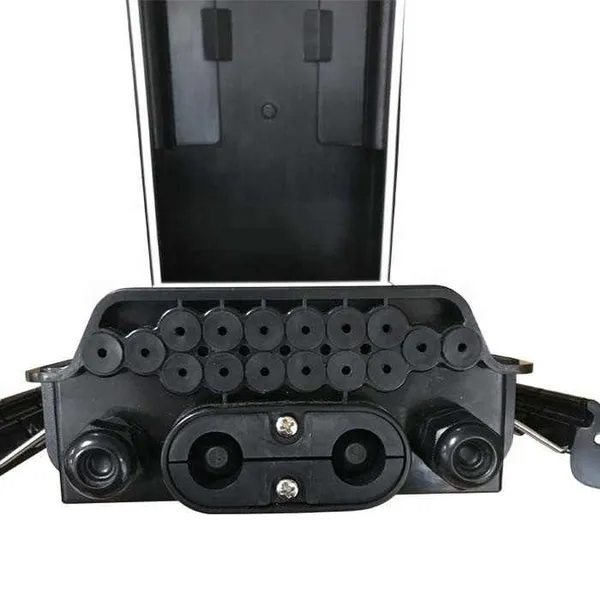

Cable ports: 2pcs M20 cable ports for Φ6~11mm cable entry
1 oval port support Φ6~18mm cable entry without cutting
16pcs 2*3mm drop cable output ports

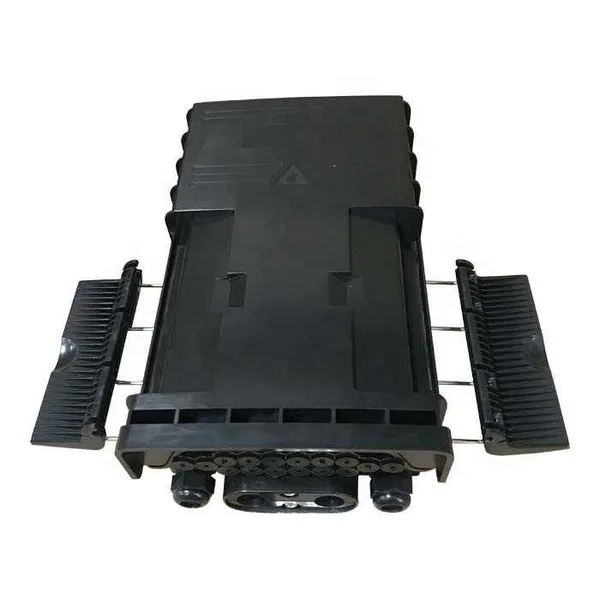

Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Specification:
Model |
Dimension(mm) |
Material |
Adapter port |
Splicing capacity |
Cable port |
Application |
OTB-P035 |
182.5X306.4X115.5 |
ABS |
18 SC simplex |
16 fibers |
2 PG gland + 1 oval + 16 drop cable port |
Outdoor wall mounted or pole mounted |
Application:
FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks
Accessories:
Item |
Product |
Specification |
Qty |
1 |
Heat protection shrinkable sleeve |
60mm*2.6*1.2 |
As per using capacity |
2 |
Cable tie |
3*120mm white |
6 pcs |
3 |
Countersunk Screws |
C type 4*30 metal |
4 pcs |
4 |
Plastic Expansion Pipe |
Φ6mm plastic white |
4 pcs |
5 |
Insulating tape |
0.15*17mm 8 yards black |
1 roll |
Packing information:
9pcs per carton, each carton 59x33x40cm
20sets/ctn, each carton 54*43*36cm, 18kg
| Quantity (pieces) | 1 - 200 | > 200 |
| Lead time (days) | 15 | To be negotiated |
For more customization details, message or email supplier!
Shenzhen YHT Broadband Equipment Co., Ltd
Fiber Patch Panel, Fiber Terminal Box, Fiber Splice Closure, Fiber Patch Cord, Fiber Adapter, PLC Splitter, Fusion Splicer, OTDR, FTTH tool...
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment
If you have another question, pls feel free to contact us as below:
Q: CAN YOU DO OEM & ODM SERVICE?
A: Yes, we can do OEM & ODM service. We have professional engineer team, over 10 peoples, to make product design & drawings, Logo design, carton box design...
