Max 576 Fiber Big Dome Fiber Optic Splice Closure

Name: Max 576 Fiber Big Dome Fiber Optic Splice Closure
Brand: CSYHT
Availability: InStock

FOB Price

USD $26 - $36 / Piece

200 Pieces(Min.Order)

Supply Ability 10000000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CSYHT		Place of Origin	China
Model Number	CV016A

Product Description

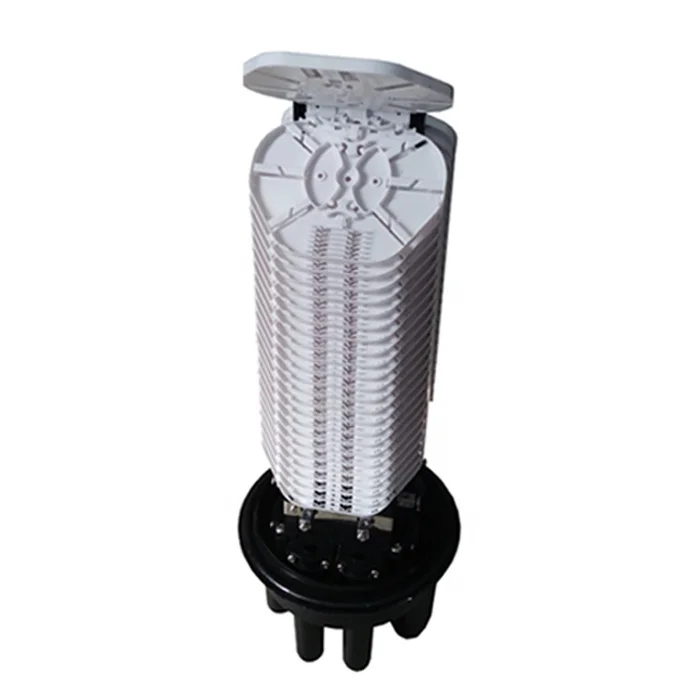

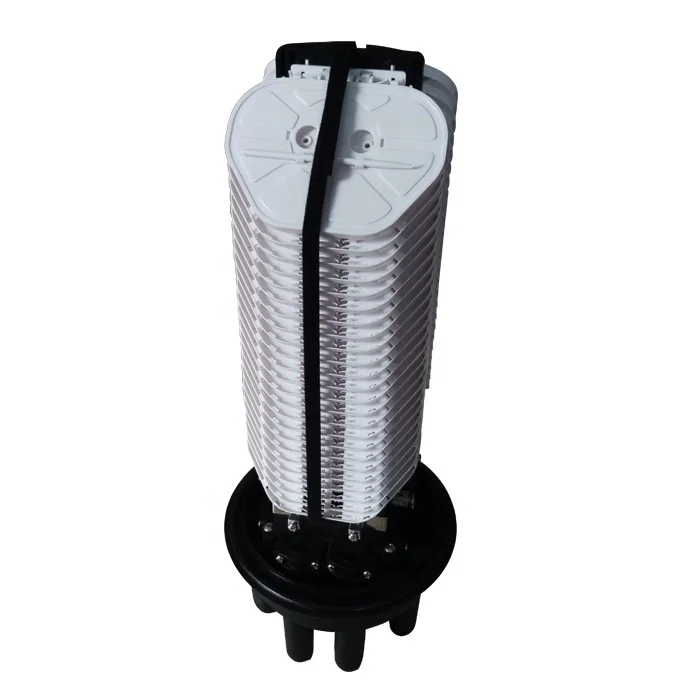

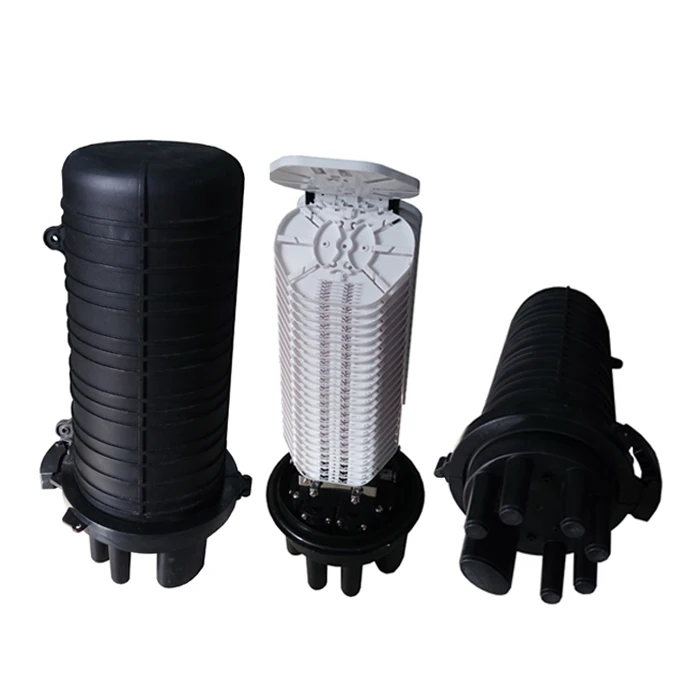

576fibers FTTH dome closure with 1 oval ports and 6 round ports fiber optic vertical closure

Description:

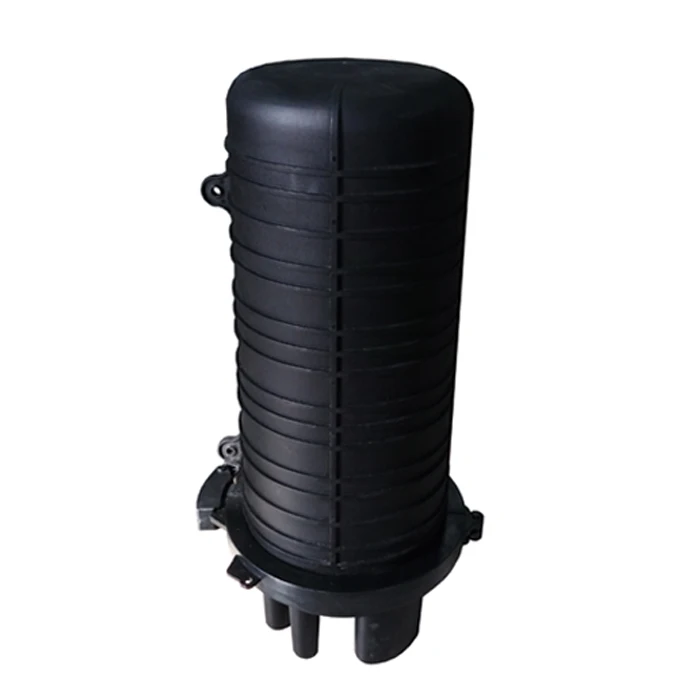

CV016A is a dome type fiber optic splice closure that used for optical fiber cable splicing, joint and

protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.

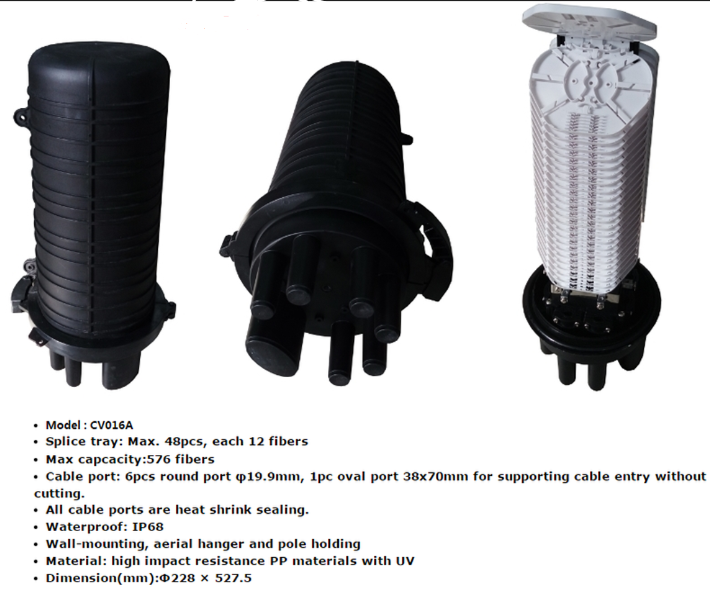

Features:

1) Splice tray: Max. 48pcs, each 12 fibers (OST-040,size:w134*L101*H7mm),if splice sleeve double layer per slot

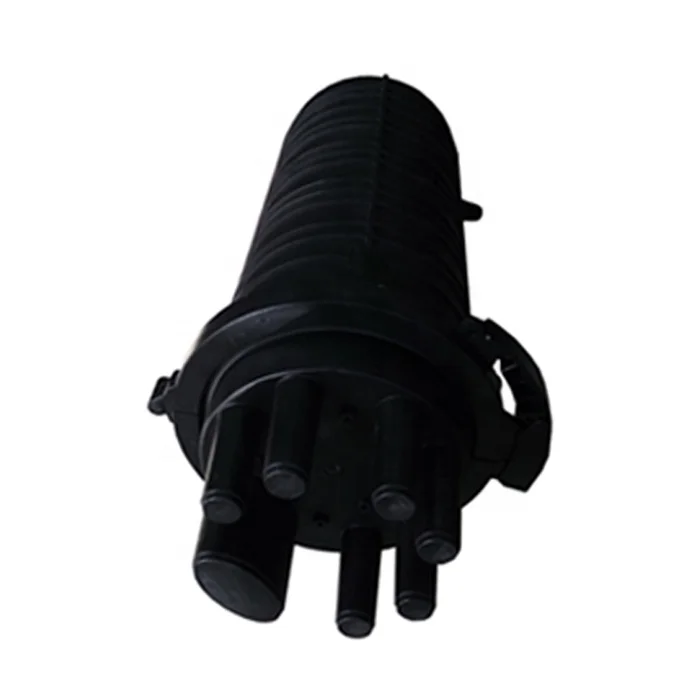

2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.

3) Waterproof: IP68

4) Wall-mounting, aerial hanger and pole holding

5) Material: high impact resistance PP materials with UV

Specification:

Model	Splice tray	Fiber core	Dimension(mm)
CV016A	48 trays, each 12 fibers	576 fibers	Φ267 × 527.5

Packing information:

6pcs per carton, each carton 61x44x45cm

Details:

Key Attributes

Industry-specific attributes

Type

Racks & Enclosure

Other attributes

Model Number

CV016A

Place of Origin

Guangdong, China

Brand Name

CSYHT

Use

outdoor

Warranty Time

1 year

Product name

heat shrink Sealing Dome closure 1 In 6 Out 96 144 cores

Material

Outside high impact PP+UV closure body, inside ABS splice tray

Application

wall mounted, pole mounted, aerial hanged, direct buried.

Color

Black

Dimensions

228 x 527.5mm

Ports

1 oval port + 6 round ports

Package

6pcs/carton .standard export carton

IP Grade

IP68

Max capacity

576cores

Packaging and Delivery

Packaging Details

fiber optic joint closure CV016 pack 6pcs/carton

Port

Shenzhen

Supply Ability

2000 Piece/Pieces per Day

Customization

OEM ODM ARE AVAILABLE

Min. order: 300

Customized logo

Min. order: 100

Customized packaging

Min. order: 500

For more customization details, message or email supplier!

Company Information

Shenzhen YHT Broadband Equipment Co., Ltd

Provide fiber optic products such as fiber optic terminal box, fiber optic patch panel, fiber optic distribution box, ODF, FTTH box, fiber optic splice closure, fiber optic splitter box, cassette, cabinet, fiber optic connector, adapter, jumper, pigtail, PLC splitter and so on.

There are hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector and cable assembling workshops for producing fiber optic splicing, connection, distribution and termination products.

Packaging & Shipping

Fiber Patch Panel, Fiber Terminal Box, Fiber Splice Closure, Fiber Patch Cord, Fiber Adapter, PLC Splitter, Fusion Splicer, OTDR, FTTH tool...

FAQ

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment
If you have another question, pls feel free to contact us as below:

Q: CAN YOU DO OEM & ODM SERVICE?

A: Yes, we can do OEM & ODM service. We have professional engineer team, over 10 peoples, to make product design & drawings, Logo design, carton box design...
