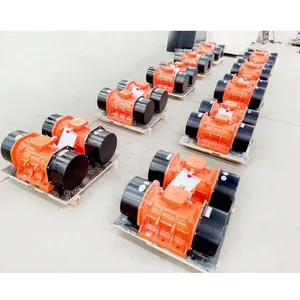

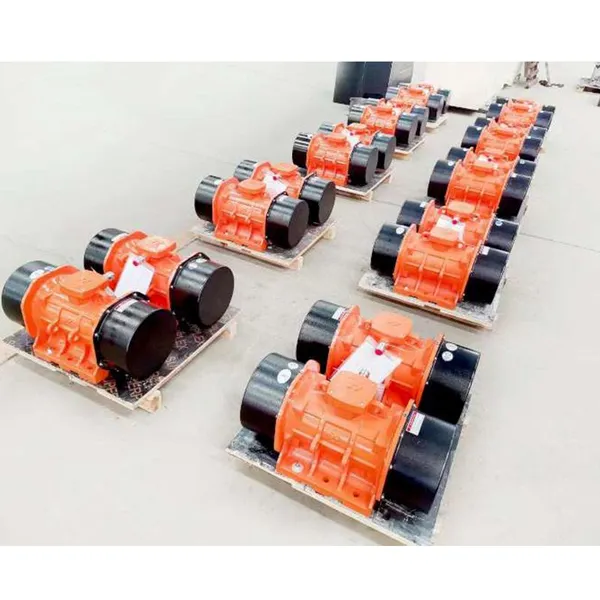

Moteur Vibrant MVE-Exd Motor Vibrante Electric Vibrator, Vibrating Motor MVE-D для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker MVE вибрационный Н - образный авиационный MVE-Exd Motor Vibrante Electric Vibrator, Vibrating Motor MVE-D д
US$ 2000 - 7000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Zhenghang
Place of Origin:
China
Model Number:
MVE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
5 days
Related Products
-
Electric Vibrator,AC Motor ,Moteur Vibrant EX Motor Vibrante Vibrating Motor SGX MVE-Exd Motor Vibrante Electric Vibrator Motors, VibratingUS$ 2000 - 7000MOQ: 1 Set -
EX 50HZ 60HZ Explosion Proof Motor Vibrante Electric Vibrator, Vibrating Motor SGX /SG2X Vibration Motor Explosion-proof AC Motor Shale ShakerUS$ 2000 - 7000MOQ: 1 Set
-
EX30/EX34/EX60/EX44/EX50/EX55 50HZ 60HZ EX Electric Vibrator, Vibrating Motor SGX /SG2X Vibration Motor Explosion-proof AC Motor Shale ShakerUS$ 2000 - 7000MOQ: 1 Set
-
SGX30/SGX34/SGX38/SGX42/SGX44/SGX50/SGX55/SGX60 50HZ 60HZ SGX Explosion Proof Terninal Block Style Motor Vibrante SGX /SG2XUS$ 2000 - 7000MOQ: 1 Set
-
MSVX 50HZ 60HZ MARTIN Motor Vibrante MSVX18 Electric Vibrator, Vibrating Motor MSV36 для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker SVX вибрационный Н - образный авиационныйUS$ 2000 - 7000MOQ: 1 Set
Brand Name
Zhenghang
Place of Origin
China
Model Number
MVE
Type
Other, vibration motor
Output Power
0.5KW-2.5KW
Frequency
50-70HZ
Efficiency
IE 3
AC Voltage
Other, 380V~660V
Certification
Other, CCC, IEC,EAC
Phase
Three-phase
Protect Feature
Explosion-proof
High quality Moteur vibrant MVE-Exd Motor vibrante Electric vibrator, vibrating motor MVE-D для вибросит Vibration motor Explosion-proof AC Motor Shale Shaker MVE вибрационный Н - образный авиационный MVE-Exd Motor vibrante Electric vibrator, vibrating motor MVE-D для вибросит Vibration motor Explosion-proof AC Motor Motore a vibrazione Shale Shaker
YBZU-W series vibration motor is designed with a short and thick structure. Its rotor has double shaft extensions, each equipped with a group of eccentric wheels (eccentric device can only be changed by the manufacturer) with guard shield protection outside.
The rated voltage is 400V, 380V, 415V, 440V, 460V, 480V, 660V, 220V/380V, 380V/660V, 400V/690V, 415V/720V, 440V/760V, 460V/790V; and the rated frequency is 50Hz, 60Hz.
Appearance and Installation Dimensions of YBZU Series in mm.
| Specifications | Installation dimensions | External dimensions | |||||||||
| A | B | H | K | N | AA | BB | HA | HD | L | ||
| Basic dimensions | Basic dimensions |
Limit Deviation |
Quantity | ||||||||
| 10-4 | 200 | 110 | 130 | 22 |
+0.520 0 |
4 | 250 | 240 | 30 | 295 | 520 |
| 16-4 | |||||||||||
| 11a-4 | 170 | 120 | 130 | 17 | |||||||
| 11-4 | 190 | 140 | 130 | 22 | |||||||
| 17-4 | |||||||||||
| 30-4 | 260 | 180 | 145 | 26 |
+0.520 0 |
4 | 320 | 296 | 33 | 316 | 640 |
| 255 | 155 | 145 | 26/23.5 | ||||||||
| 225 | 155 | 145 | 22 | ||||||||
| 35-4 | 245 | 205 | 145 | 32 | |||||||
| 38-4 | 255 | 155 | 145 | 26/23.5 | |||||||
| 43-4 | |||||||||||
| 38-4 | 270 | 85 | 145 | 26 | 6 | ||||||
| 43-4 | |||||||||||
| 55-4 | 305 | 124 | 167 | 26 | 357 | 329 | 35 | 338 | 650 | ||
| 60-4 | |||||||||||
