Вибродвигатель VMX18-8300 38KN 50HZ 380V для вибросит Italvibras Vibration motor for MISWACO Oilfield Shale Shaker

FOB Price

CNY 2000 - 7000 / Set

1 Set(Min.Order)

Supply Ability 20000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Cash
Delivery Detail:5 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Zhenghang,OEM	Place of Origin:	China	Model Number:	VMX18-8300
After-sales Service Provided:	No overseas service provided	Warranty:	12months	Weight:	70kg-170kg
Dimension(LWH):	640320316mm Installation dimension : 248105105*6Φ22mm	Production Capacity:	1000sets/month	Voltage:	380V ,400V,415V,440V, 480V,660V
Certification:	IEC,EAC,EXIEC,CCC,COC,QC	Application:	Oilfield Shale Shaker	Condition:	New
Features:	Explosion-proof	Power(W):	2.2KW

Product Description

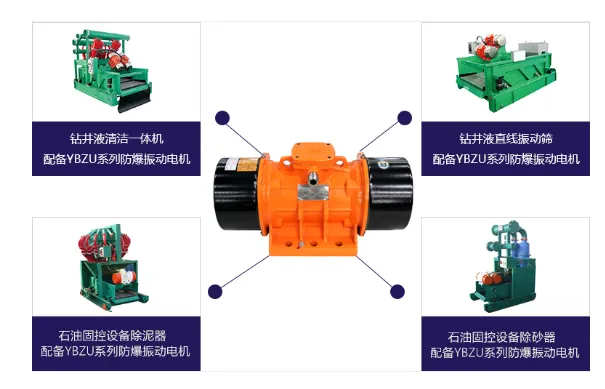

Вибродвигатель VMX,CDX,MVS,VR,MVX, 50HZ /60HZ 380V 400V 460V для вибросит MISWACO Vibration motor 7Kn 11Kn 14Kn 17Kn 20Kn 24Kn 30Kn 35K 38KN Italvibras CDX Oilfield Shale Shaker

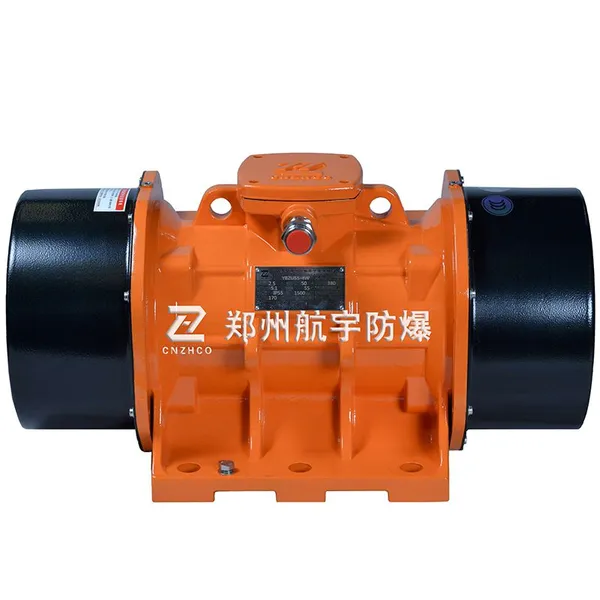

YBZU-W series vibration motor is designed with a short and thick structure. Its rotor has double shaft extensions, each equipped with a group of eccentric wheels (eccentric device can only be changed by the manufacturer) with guard shield protection outside.

The rated voltage is 380V, 400V,415V, 440V, 460V, 480V, 660V, 220V/380V, 380V/660V, 400V/690V, 415V/720V, 440V/760V, 460V/790V; and the rated frequency is 50Hz, 60Hz.

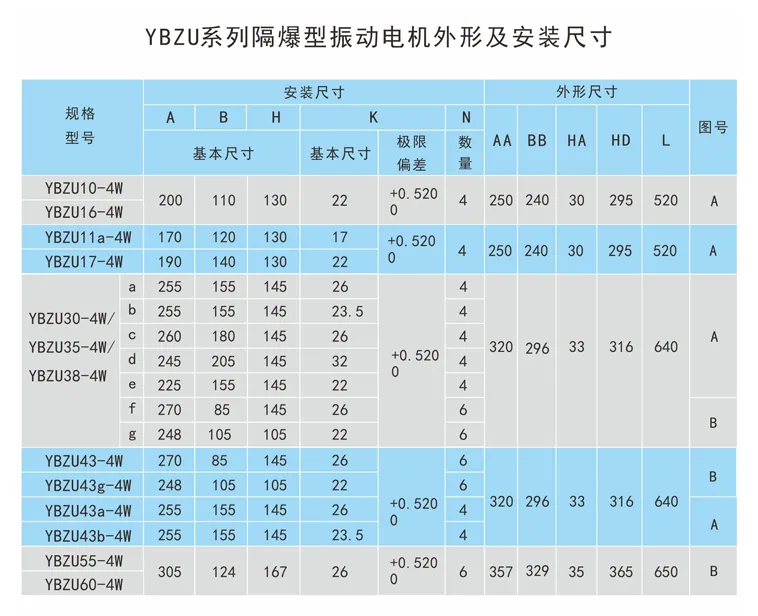

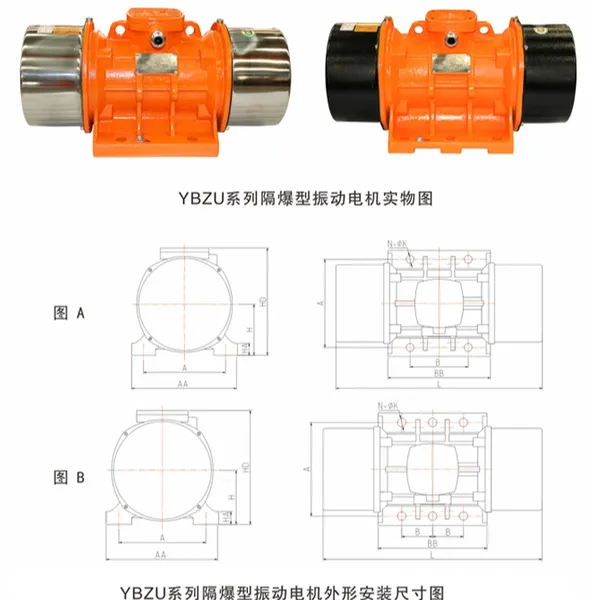

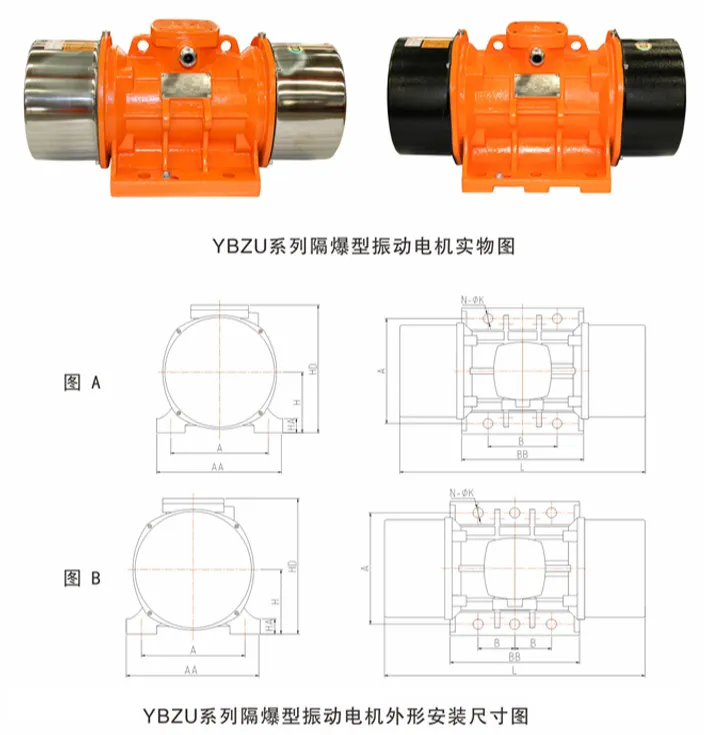

Appearance and Installation Dimensions of YBZU Series in mm.

Specifications	Installation dimensions						External dimensions
	A	B	H	K		N	AA	BB	HA	HD	L
	Basic dimensions			Basic dimensions	Limit Deviation	Quantity
10-4	200	110	130	22	+0.520 0	4	250	240	30	295	520
16-4
11a-4	170	120	130	17
11-4	190	140	130	22
17-4
30-4	260	180	145	26	+0.520 0	4	320	296	33	316	640
	255	155	145	26/23.5
	225	155	145	22
35-4	245	205	145	32
38-4	255	155	145	26/23.5
43-4
38-4	270	85	145	26		6
43-4
55-4	305	124	167	26			357	329	35	338	650
60-4
