EX 50HZ 60HZ Explosion Proof Motor Vibrante Electric Vibrator, Vibrating Motor SGX /SG2X Vibration Motor Explosion-proof AC Motor Shale Shaker
US$ 2000 - 7000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
- 5 days
You May Like
-
EX30/EX34/EX60/EX44/EX50/EX55 50HZ 60HZ EX Electric Vibrator, Vibrating Motor SGX /SG2X Vibration Motor Explosion-proof AC Motor Shale Shaker
-
SGX30/SGX34/SGX38/SGX42/SGX44/SGX50/SGX55/SGX60 50HZ 60HZ SGX Explosion Proof Terninal Block Style Motor Vibrante SGX /SG2X
-
MSVX 50HZ 60HZ MARTIN Motor Vibrante MSVX18 Electric Vibrator, Vibrating Motor MSV36 для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker SVX вибрационный Н - образный авиационный
-
MSVX 380V 50HZ MARTIN Motor Vibrante MSVX18 Electric Vibrators, Vibrating Motor MSV36 для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker SVX вибрационный Н - образный авиационный
-
MVTX Motor Vibrante MVTX15/3500-G/D Electric Vibrators, Vibrating Motor 35KN для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный
-
MVTX Motor Vibrante MVTX15 Electric Vibrators, Vibrating Motor MVT18 для вибросит Vibration Motor Explosion-proof AC Motor Shale Shaker Italvibras вибрационный Н - образный авиационный
Product Description
High quality Moteur vibrant Motor vibrante Electric vibrator, vibrating motor EX для вибросит Vibration motor Explosion-proof AC Motor Shale Shaker вибрационный Н - образный авиационный SGX Motor vibrante Electric vibrator, vibrating motor для вибросит Vibration motor Explosion-proof AC Motor Motore a vibrazione Shale Shaker

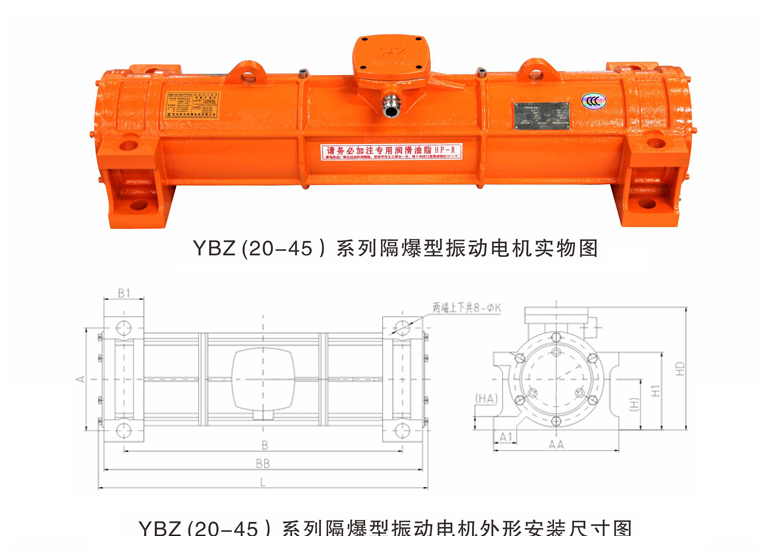

YBZ-W series vibration motor is designed with a long and thick structure. Its rotor has double shaft extensions, each equipped with a group of eccentric wheels (eccentric device can only be changed by the manufacturer) with guard shield protection outside.
The rated voltage is 400V, 380V, 415V, 440V, 460V, 480V, 660V, 220V/380V, 380V/660V, 400V/690V, 415V/720V, 440V/760V, 460V/790V; and the rated frequency is 50Hz, 60Hz.

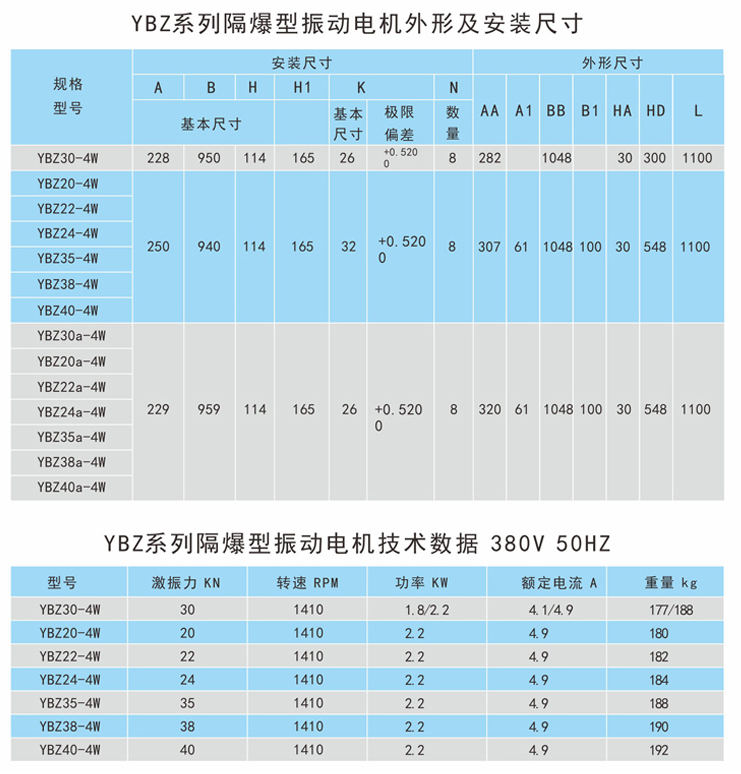

Appearance and Installation Dimensions of YBZ Series in mm.
| Specifications | Installation dimensions | External dimensions | |||||||||
| A | B | H | H1 | K | AA | BB | HA | HD | L | ||
| Basic dimensions | Basic dimensions | Limit Deviation | |||||||||
| 30-4 | 228 | 950 | 114 | 165 | 26 | +0.52 0 | 282 | 1048 | 30 | 310 | 1100 |
| 20-4 | 250 | 940 | 32 | 307 | 335 | ||||||
| 22-4 | |||||||||||
| 24-4 | |||||||||||
| 35-4 | |||||||||||
| 38-4 | |||||||||||
| 40-4 | |||||||||||
| 30a-4 | 229 | 959 | 114 | 165 | 26 | +0.52 0 | 310 | 1048 | 30 | 335 | 1300 |
| 20a-4 | |||||||||||
| 22a-4 | |||||||||||
| 24a-4 | |||||||||||
| 35a-4 | |||||||||||
| 38a-4 | |||||||||||
| 40a-4 | |||||||||||
