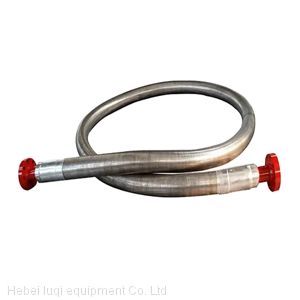

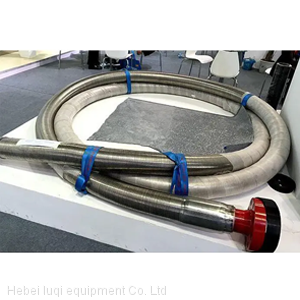

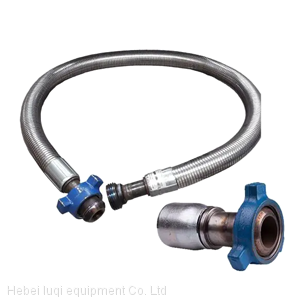

Help CenterHigh Pressure Steel Wire Spiraled Rubber Hose
Related Products
Applicable to connection at locations when drill platform, semi- submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change, and to delivery of oil, gas, mud and other high pressure media (including mainly relief line, blowout control line and choke kill line).
1.Application
Applicable to connection at locations when drill platform, semi- submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change, and to delivery of oil, gas, mud and other high pressure media (including mainly relief line, blowout control line and choke kill line).
2. Applicable standard
API Spec 16C
SY/T5323-2004
3. Features
The product features resistance to high pressure, thermal insulation. anti- flaming and fire resistance as well as inner wall with high abrasion resistance
4.Operating temperature
-40°C~+100°C

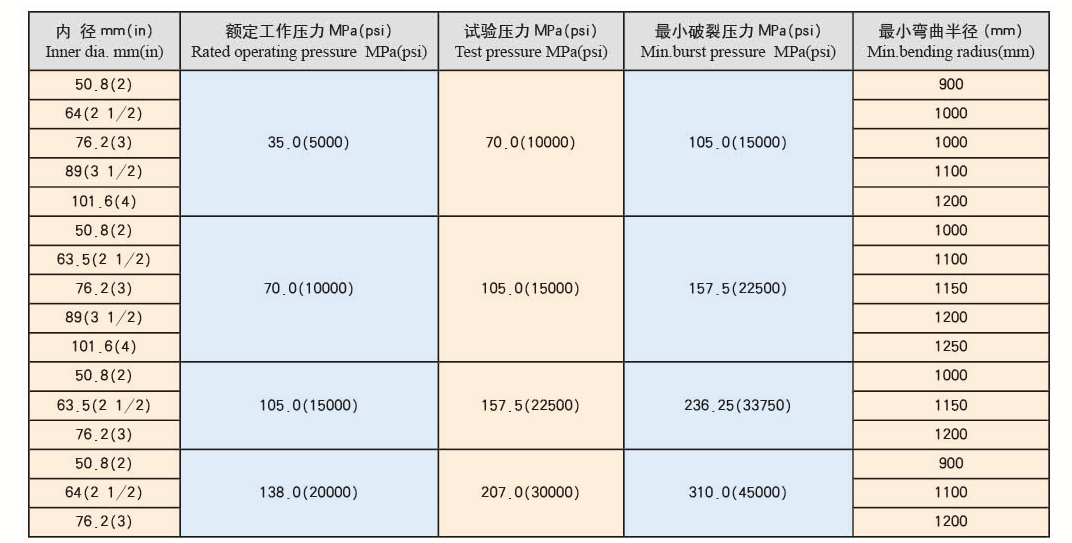

Specification and basic parameters for High pressure steel wire spiraled rubber hose
Send Inquiry to This Supplier
