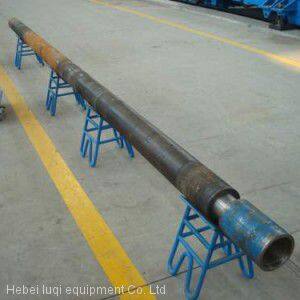

Help CenterHydraulic Oscillator
Related Products
Hydraulic oscillators use hydraulic pulse to generate axial vibration load of drill string and overcome borehole friction. It has been successfully applied in vertical Wells, motor guided drilling, rotary guided drilling, large displacement Wells and shale gas reservoir drilling.
Technical advantages：
1. Improve downhole weight transfer
2. Effectively improve drilling rate
3. Significantly reduce friction resistance
4. Compatible with MWDS/LWD
5. It fits well with all kinds of drill bits
6. Improved orientation
Technical Parameters：
In OD |
4 3/4″（121mm） |
6 3/4″（172mm） |
8″（203mm） |
|
Axial expansion quantity mm |
3-8 |
3-9 |
3-9 |
|
Max impact m |
4.5 |
5 |
7 |
|
Tool pressure loss MPa |
3-4 |
3-4 |
2-3 |
|
Recommended working capacity L/s |
10-20 |
20-35 |
40-50 |
|
Working frequency Hz |
15(16L/s) |
15(28L/s) |
15(45L/s) |
|
weight Kg |
450 |
560 |
760 |
|
Fall length m |
6.5 |
7.0 |
7.2 |
Top and bottom button |
NC38 |
NC50 |
630/631 |
It mainly consists of three parts: power nipple, disc valve assembly and oscillation system.
The friction between the well wall and the drilling tool is alter from static to dynamic.
