1. raw materials:
2. finished products:
3. our machine:
4.Canned Sweet Corn
Flavor: sweet
Color: yellow
Certification: ISO, HACCP
Shelf life: 3years
Birx: 6-8% or 4-7%, or according to clients
Brand name: accept private labels
Loading Port : Xiamen or Fangchenggang port, China
|
canned sweet corn |
|||
|
size |
N.W |
D.W |
Full in 20’FCL |
|
340g/24 |
340g |
250g |
1850ctns |
|
425g/24 |
425g |
230g |
1800ctns |
|
850g/12 |
850g |
460g |
1800ctns |
|
2500g/6 |
2500g |
1500g |
1150ctns |
|
2840g/6 |
2840g |
1800g |
1080ctns |
Detail Information Of Each Part In This Processing Line

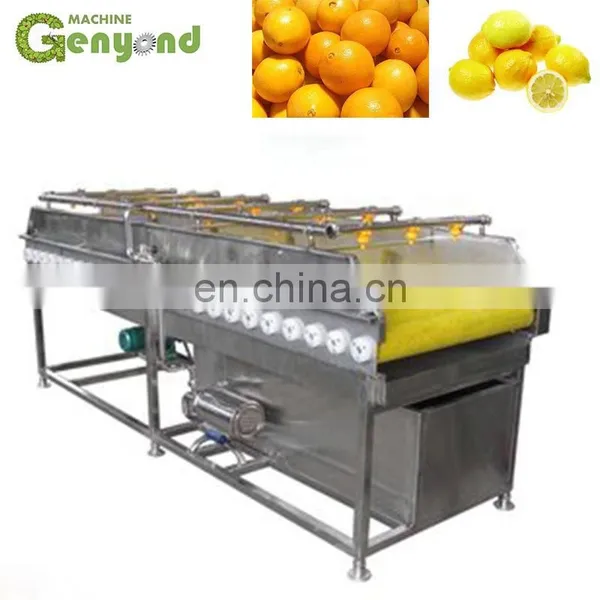

1.bubble cleaning machine
a.The tank is made of the stainless steel of high quality with the thickness of 1.5mm
b.Conveyor belt is composed of stainless chain and stainless web, the mid-width is 700mm
c.Protect sheet is made of the stainless sheet and punching sheet with the thickness of 1.5mm
d.Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe
e.Guide course is made of hem stainless sheet.
f.Install power:2.57KW
2.Spiral rinsing blanching machine
1.The outside roller is made of the stainless sheet of 304/2B high quality with the thickness of 2.0mm
2.The inside roller is made of the punching stainless sheet of 304/2B high quality with the thickness of 2.0mm
3.It allocate electromagnetic speed control motor with the power 2.2kw for temperature adjusting, speed adjusting and auto remperaturecontraling.It can be operated complete automatically.
4.Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe
3.Lukewarm water cooling machine
1.The tank is made of the stainless sheet of 304/2B high quality with the thickness of 2mm
2.Conveyor belt is composed of stainless chain and stainless web, the mid-width is 700mm
3.Protect sheet is made of hem stainless sheet and punching sheet with the thickness of 1.5mm
4.Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe
5.Guide course is made of hem stainless shee with thickness of 2.5mm.
6.Installation power: 1.1Kw
4.Ice water cooling machine
1.The tank is made of the stainless sheet of 304/2B high quality with the thickness of 2mm
2.Conveyor belt is composed of stainless chain and stainless web, the mid-width is 700mm
3.Protect sheet is made of hem stainless sheet and punching sheet with the thickness of 1.5mm
4.Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe
5.Guide course is made of hem stainless sheet with thickness of 2.5mm.
It is fixed forcefully with propeller.
6.Allocate with a set of evaporated exhausting pipe and a electromagnetic speed control moter,the installation is 3.7KW
5.Vibration water-dropping machine
1.Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe
2.The bodies of the tool is made of hem stainless sheet with thickness of 2.5 mm
3.Raw material sheet is made of punching sheet with the thickness of 1.5mm
4.Power is 2 vibrancy motors with 0.37 Kw.
6.Elevating machine
1.Steadier is made of 50×50×1.5 stainless square pipe
2.Guide course is made of 304/2B the stainless sheet with thickness of 2.5mm.
3.Protect sheet is made of 304/2B the stainless sheet and punching sheet with the thickness of 1.5mm
4.Conveyor belt is composed of stainless chain and stainless web, the mid-width is 700mm
5.Power is 2 SPT non-level speed controling motors with 0. 75 Kw.
7.Vibration feeder machine(To IQF Quick Freezing Machine)
1.Steadier is made of 50×50 stainless square pipe
2.The bed is made of the stainless sheet of high quality with the thickness of 2.5 mm
3.Raw material sheet is made of punching sheet with the thickness of 1.5mm
4.Power is 2 vibrancy motors with 0. 75 Kw.
