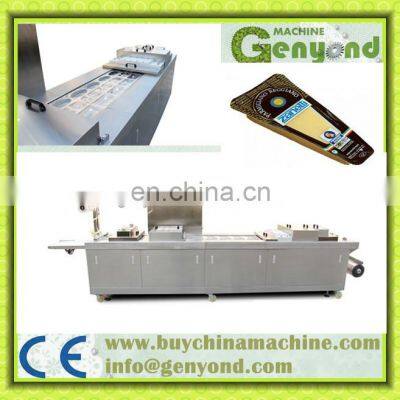

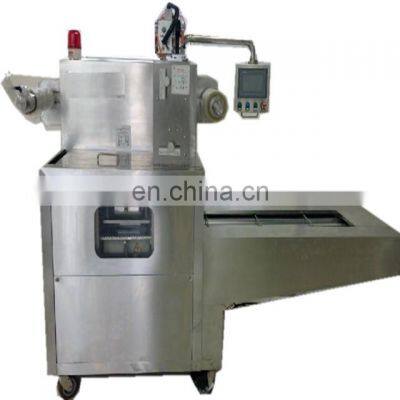

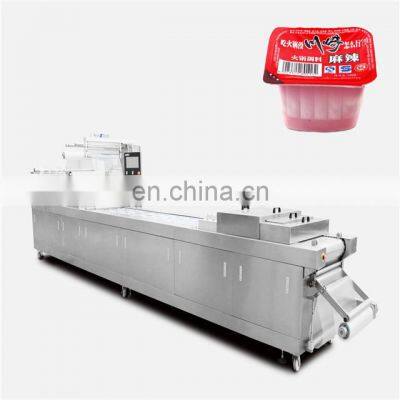

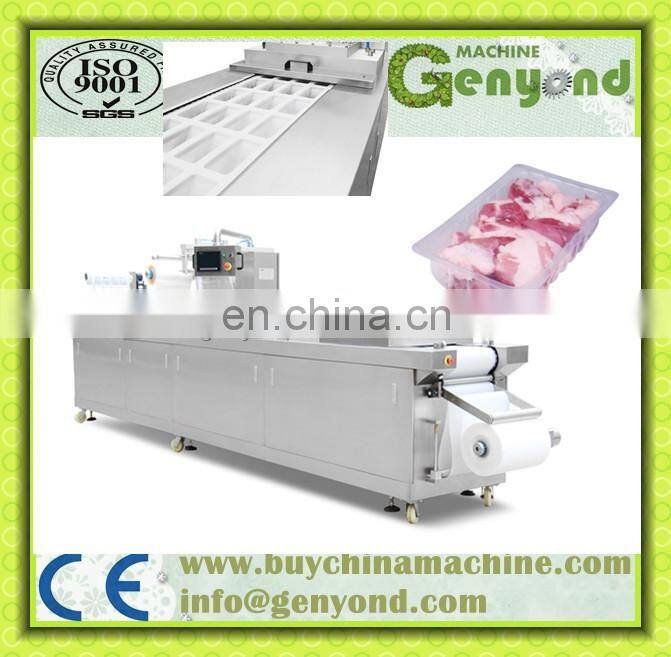

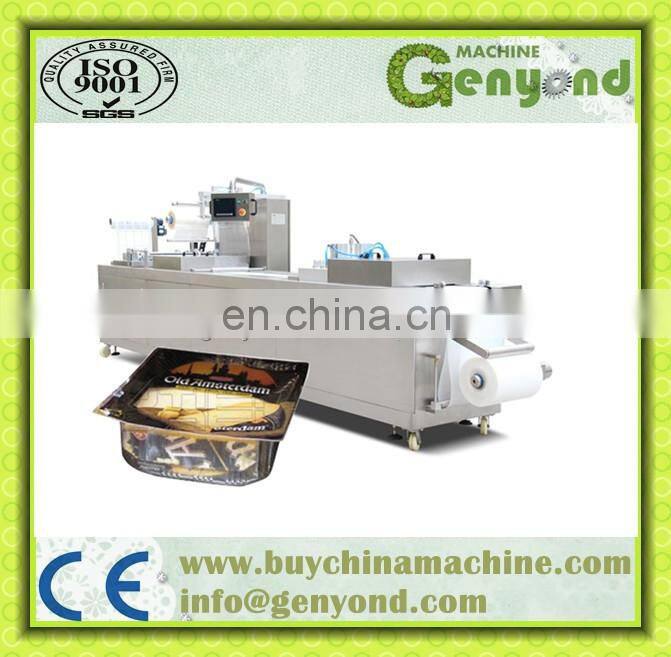

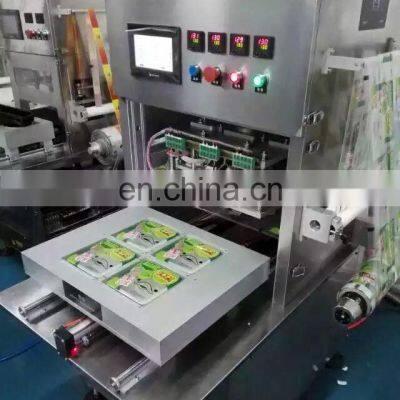

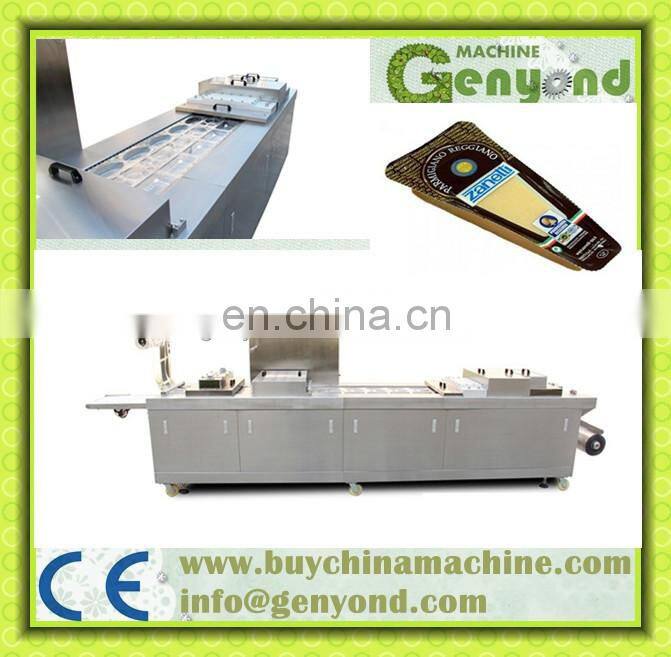

Gas Flushing Type Cheese Thermoforming Vacuum Packaging Machine
Feature:
1. It can automatically making box, avoid the secondary pollution of box pre-making, and reduce the cost of box pre-making cost and storage space.
2. Modular design,and it can be equipped with printer,labelling machine.
3. Big screen PLC control, combined with a variety of sensors, portfolio analysis data, real-time monitoring, keep the machine run smoothly.
Main Technical Parameter:
Machine width |
1100mm |
Frame width |
820mm |
Lower film width |
460mm |
Machine length |
7200mm |
Frame length |
6200mm |
Machine height |
1870mm |
Stepping length |
≤500mm |
Forming stretching depth |
≤150mm |
Packing speed |
≤7 cycle/min |
control |
Delta PLC |
Lower film | |||
Material |
Thermoforming plastic sheets |
No printing,transparent film or color film |
|
Max roll diameter |
500mm |
|
|
Cover film | |||
Material |
Soft film |
Preprinting cover film,transparent film or color film |
|
Max.roll diameter |
250mm |
Power |
380V 50Hz |
Compressed air |
6 bar |
Cooling water |
1.5-3 bar |
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
