Product Description
Fully Automatic Pulped Paper Egg Tray Making Machine
Machine for make paper egg tray,egg tray making machine,egg tray machine,paper tray machine.pulp moulding machine
The quality of our egg tray making machines is superior to that of other suppliers,and our prices are lower than theirs.
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
various types and output of egg tray making machines can be supplied by our company ,
such as 800-1000pcs per hour ,2000pcs per hour,3000pcs per hour ,4000pcs per hour ,and so on .
The quality of our egg tray making machines is superior to that of other suppliers,and our prices are lower than theirs.
if you are interested in our machines,pls contact me ,i will send the details of machine to you

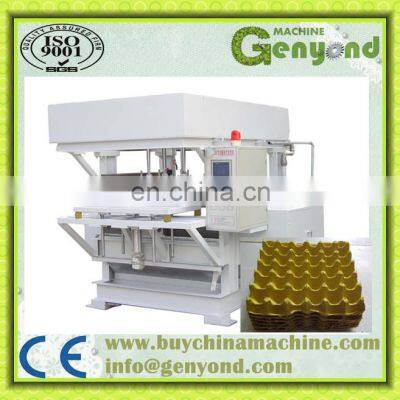

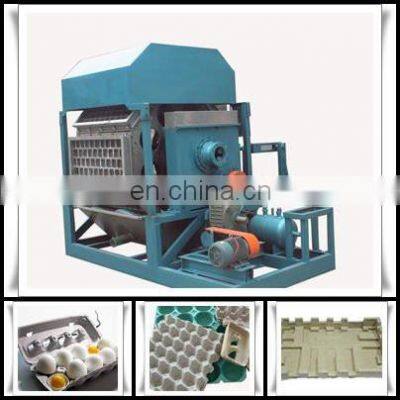

Reciprocating type egg tray machine reference picture as the following:
1. Pulping system
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc
2. Forming system
Consist of 1pc of forming platen and 1 pc of transfering platen.
Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
3. Drying system
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
5. More pictures
