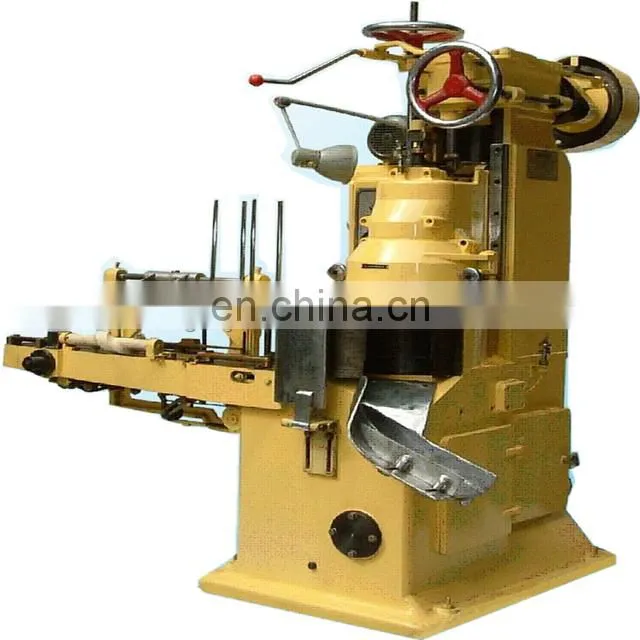

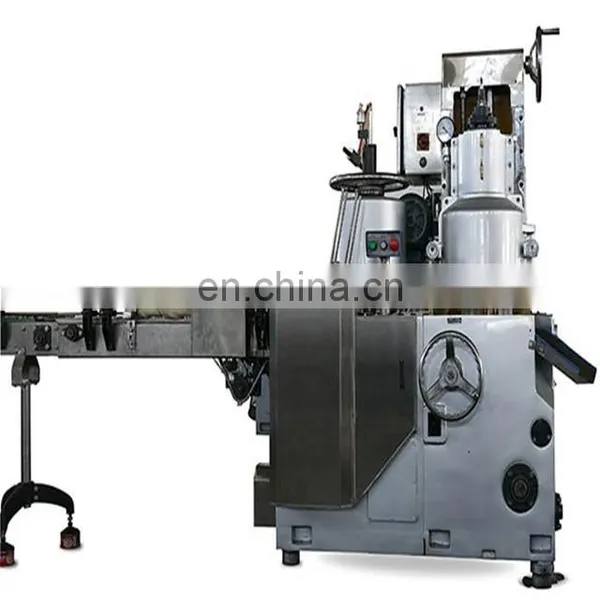

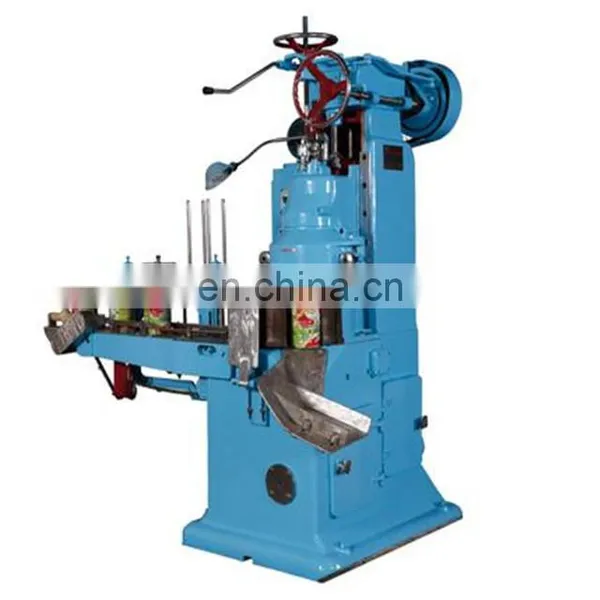

Fish Canning Machine Food Cans Sealing Machine

Big production line of special-shaped cans sealing machine ,fish canning machine

Automatic transer(4) the special-shaped cans can sealing equipment.Can roll sealing seal rectangle,square,oval,etc .Various specifications of tinplate cans or aluminum cans,plastic cans,paper cans ,and has the function of steam jet vacuum,suitalbe food ,canned meat,seafood ,or empty tin cans factory mass production .The machine parts after NC machine tools and machining center,precision machining ,the machine running stablility ,mechanical structure,sealing quality conforms to the standard.

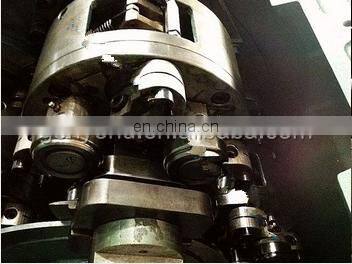

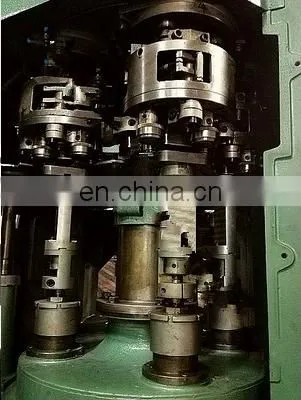

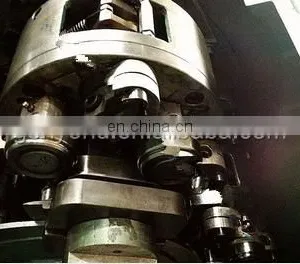

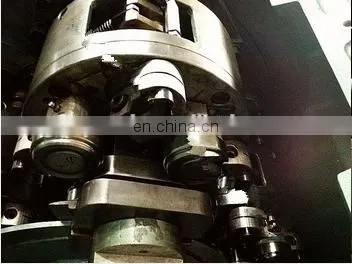

Volume sealing head

1.this machine has 4 volumes host header,and each volume seal the nose has a tank type specially customized for clients of high strength stainless steel pressure head molds and four high strength stainless steel sealing wheel,the nose for both are stainless steel parts material,to ensure the food hygiene and at the same time increase the service life of the machine .

2.a set of pressure head molds and the service life of the seal round could reach 5,000,000-6,000,000 cans.

Into the tank structure

The machine into the tank structure of high-speed rotating disc,the tank into the roll of sealing head tank plate,placed on the tank cover storage tank cover ,through specific send cover plate will be postpone to send cover orbit,pot and cover with a simultaneous, and cooperate with the good into volume sealing head for closure.

The steam jet vacuum

Machine has reserved steam pipline interface ,and into the tank into orbit each other,for the manufacturer of the vacuum manufactures provide steam jet vacuum function.

Second ,the main technical specifications

Production capacity of 100-150 cans per minute (stepless frequency control of motor speed )

Closing range:

Cylindrical largest inscribed circle diameter   : 170mm

Cylindrical width : 132mm

The minimum width of cylindrical : 50mm

Outside the tank high: 19-130mm

Work rate :  5.5kw

Overall dimensions (LxWxH) 2360 x 2180 x 2000mm

weight : 5300kg .
