Triple effect falling film evaporator
- T/T Credit Card
You May Like
Product Description

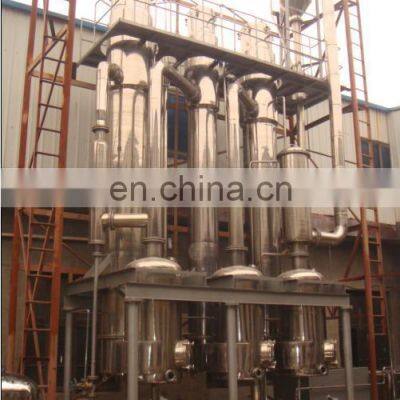

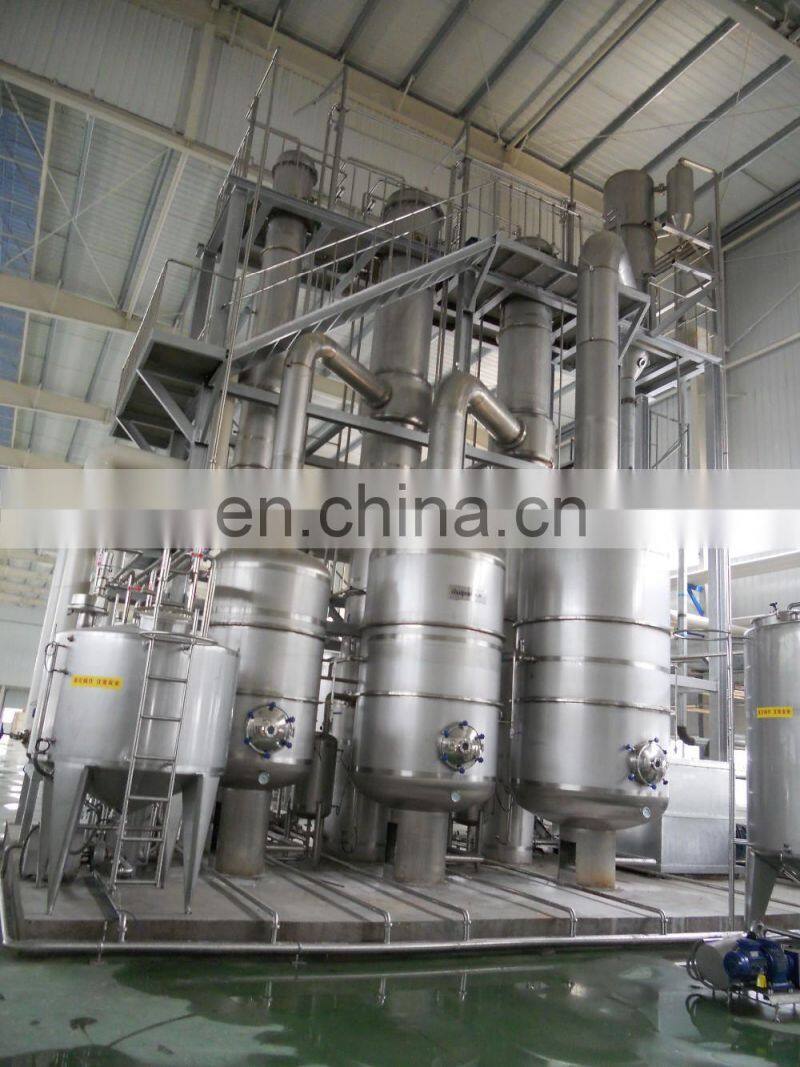

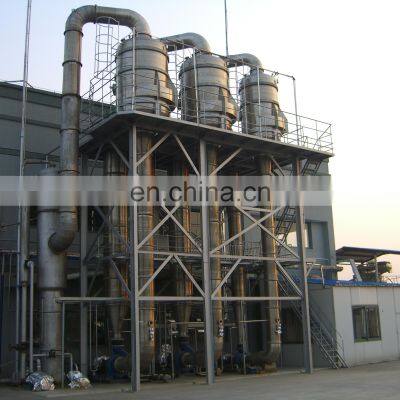

Triple effect falling film evaporator
It adopt double flow structure, namely triple effect with four stage evaporation, thus ensure enough flow rate around the falling film tube, and it can avoid tube burning problem.
Large heating chamber, long film-down tube and new type double mechanical sealing material pump ensure the capacity of evaporator. Meanwhile, it adopts temperature-falling discharging, reduce chilled water consumption, thus avoid material back-flow and re-heated.
Upper and lower body and separator inside the equipment have been added automatic in place cleaning device, it can effectively clean the upper of separation chamber, bottom of falling film chamber and separator, and reduced the overall equipment parts connecting flange, to improve the vacuum stability.
Upper and lower body and separator inside the equipment have been added automatic in place cleaning device, it can effectively clean the upper of separation chamber, bottom of falling film chamber and separator, and reduced the overall equipment parts connecting flange, to improve the vacuum stability.
It adopts three effect four stage evaporation technology, and it can save 2/3 steam when compared with same capacity single effect, and it can save 1/4 steam when compared with same capacity double effect.
Equipment Structure:
The Equipment Is Mainly Composed of Raw material Tank, Heaters, separator, condenser, condensate water tank, pumps , vacuum system
etc. The Contact Parts Of The Equipment And The Materials Are Made Of High-Grade Stainless Steel Material, And Have Good Corrosion Resistance. , In Line With GMP Safety And Health Standards.
Equipment Technology:
By Adopting the falling film evaporation form, the equipment is used for concentration and evaporation of fruit and vegetable juices and other heat sensitive materials. The equipment is mainly composed of evaporator , separator, condenser etc. It is widely used for concentration and dehydration in food , biology, pharmacy, chemical industry etc.
The evaporation system can be made up of single-effect,2-effect,3-effect,4-effect,5-effect,6-effect according to the property of compressed material and customer's request.
It can be also used together with the forced circulation evaporator and crystallizer to deal with the concentration and product crystallization of high viscous and easy scaled material.
It is characterized by high efficiency of heat conduction, low power consumption etc.
It can widely use the waste heat (such as the drier's hot air and flue gas), the remaining heat (of condensing water, process
water and flash steam) to form a waste heat evaporation machine unit.
Characteristics:
Good Heat Transfer Performance, High Evaporation Efficiency, Easy To Clean,In Line With GMP Standards.
Multiple stage design and saves energy;
The evaporation is under vacuum , the evaporation temperature is low, so that it has good performance or heat sensitive material
evaporation.

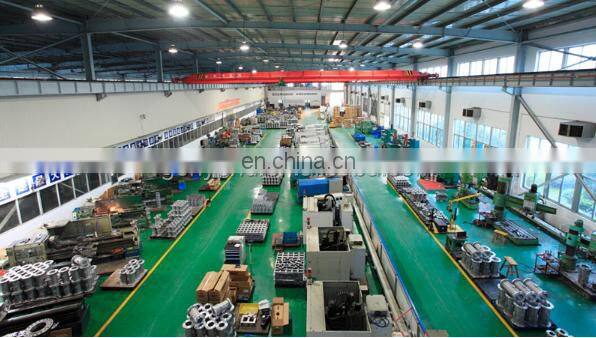

Shanghai Genyond Technology is the most professional manufacturer and distributor for sterilizer.We have nearly 20,000 square meters, which registered capital of 20 million, and had total assets of 130 million, Company had more than 400 employees. The technical staff composed of 40 master's or doctor’s degrees,138 bachelor's degrees. Our company passed the ISO9001 QUALITY, and a number of products certificate such as China quality mark certification and CE certification.
Q: Are you trading company or manufacturer ?
A: We are real factory, welcome to vis us.
Q: Are you new company?
A: No, we are old famous company.
Q: How about your quality and after-sale service ?
A: We have the best quality and good professional after- sale service.
Q: How to get a quotation of the product?
A: Welcome to contact :Guo , whatsapp:008617077745271
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
