Fully Automatic Fruit Jam Production Process
- T/T Credit Card
You May Like
Product Description
Product Introduction
Our production line can produce tomato raw material from 100kg/h to 50t/h. The tomato paste production line includes many machines: hoist, washing machine, picking machine, crusher, preheater, pulping machine, vacuum concentration, sterilizer, aseptic filling machine, etc. and these machines must be designed reasonably. And can be customized according to clients' requirements. they have advantages of simple construction, easy operation and high production efficiency.
MAIN FEATURES:
1) All the machines are made of SUS 304.
2) Finally Package : Plastic bottle, glass bottle, can, jar, tetra pak, aseptic bags etc.
3) The line is also suitable for processing the fruits that share the similar characteristics.
4) Adopt "hot-break" or "cold-break" techniques to produce tomato paste which is different viscosity.
5) The production process fully automatic PLC control to save labor and faciliate production management.
6) Low-temperature vacuum evaporation, maximize reserve the flavor substances and nutrients also save energy.
7) Tubular UHT Sterilizer and aseptic filling machine, produce high-quality tomato paste products.
8) Automatic CIP cleanig to ensure the entire line equipment of food hygiene and safety requirements.
9) Our machine parts adopt the world famous brand: PLC,touch screen generally use the brand of SIEMENS,Germany. Switchs usually use SCHNEIDER, France and OMRON, Japan. Steam valves commonly use SpiraxSarco, UK.
Process flow:
Fresh Fruit--Washing--Sorting--Crushing--Pre-heating--Refining--Vacuum evaporation---Sterilizing--Filling--Fruit paste
Fruit washing machine
1,Capacity: 200 kg/hour
2,Power: 1.5KW
3,Size: 2100*810*1400mm
4,Material: SUS 304
5,Floating washing type
Tubular pre-heater
1,Rating capacity: 0.2ton/hour.
2,Tubular structure with end plates.
3,Material: SUS304 in main body and carbon steel in support.
4,Outlet at 60~95°C adjustable.
5,The machine is used for softening and passivation of enzyme of crushed fruits or vegetables.
Fruit Pulping machine
1,Material: SUS 304
2,Capacity: 200 kg/hour
3,Type: single stage
4,Size: 800*800*900mm
5,Power: 1.5KW
6,Rotating speed:860 r/m
Multifunctional mixing&sterilizing°assing&scraper vacuum concentrating machine
Application:
This machine is suitable for plants, pharmaceutical, food, chemical and other industries mixing, vacuum concentrating, high pasteurization, vacuum degassing, and other production processes.
1,Effective volume:200 L
2,Material: SUS 304
3,Structure: semi-sphere shape
4,with condenser, cooler and the vacuum pump;
5,Digital thermometer by 1 degree less or more;
6,With mixing,sterilizing,degassing and concentrating functions.

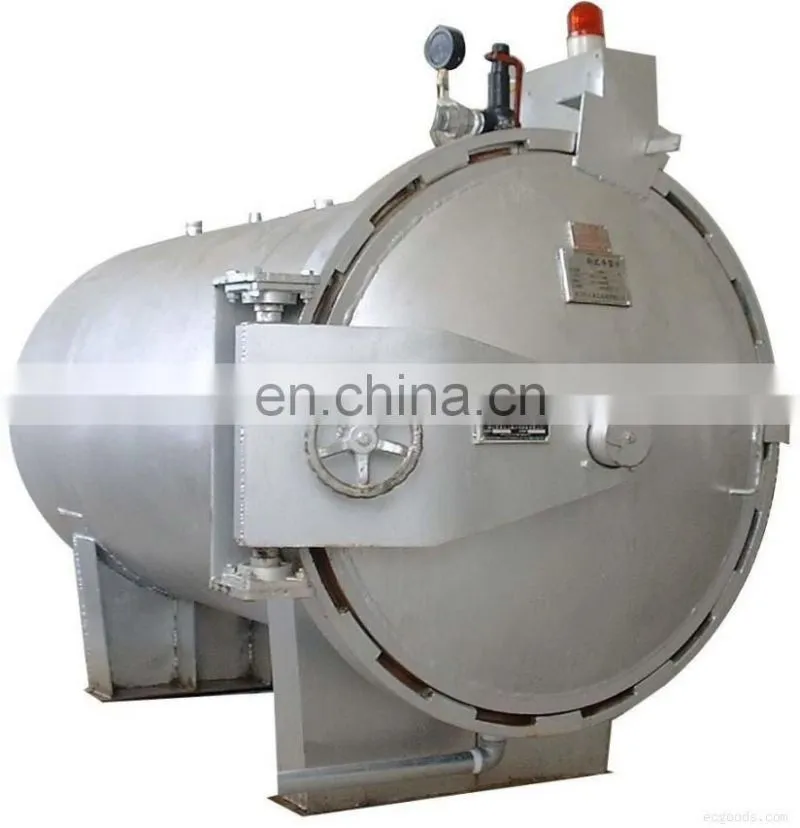

UHT sterilizing kettle
1,Capacity: 360pcs /batch
2,Diameter (mm): 700
3,Volume (m3): 0.6
4,Design temperature:143℃
5,Total weight (kg) :400
6,Dimensions:1720*1100*1500mm
7,Material: SUS 304
8,Power:35kw
YOU ARE WELCOME TO VISIT OUR COMPANY AND FACTORIES!
PACKAGE
Standard export carton or wooden cases packing.
DELIVERY TIME:
7-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Service before sale.
Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service on sale.
We are confident that we sell our machines to customers at low prices and activated. Professionally and patiently introduction pictures and video to show machine
Service after sale.
1, Free insurance for goods
2, 24 hours online to solve any questions.Supply manual book
and technical support,maintain
video to help you.
