Fruit juice cleaning machine milk equipment CIP cleaning system
- T/T Credit Card
You May Like
-
Pasteurized egg liquid processing line, pasteurized egg yolk and white production
-
small scale pasteurized dairy production line/processing plant
-
Production Line Jam Multi-fruits Production Line For Mango Jam Processing Making
-
Full antomatic tomato ketchup/paste production line
-
HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE
-
Factory Genyond Complete prickly pear fruit juice paste production line / prickly pear jam processing plant making machine
Product Description
CIP cleaning system Description:
CIP cleaning system, commonly known as inplace cleaning system is widely used for beverage, dairy, juice, fruit purees, jam, wine/beer, sugar, biological pharmaceutical ,food processing industry and production enterprise with high mechanization degree.Inplace cleaning hereinafter referred to as CIP, also called clean location or position cleaning (cleaning in place).Inplace cleaning refers to don't disassemble or mobile device, using high temperature and high concentration of fluid to clean, strong effect on equipment, and food contact surface to wash, the more strict with the health level of equipment cleaning and purification.Small mobile CIP cleaning system is mainly used in biological fermentation, the pharmaceutical industry.
Feature:
CIP cleaning system can guarantee certain cleaning effect, improve the safety of the products;Save operation time and improve efficiency;Saving labor and ensure the safe operation;Save energy such as water, steam, reducing the dosage of detergent;Can realize large-scale production equipment, high automatic level;Prolong the service life of production equipment.CIP cleaning mechanism of chemical energy is mainly to join chemical reagent, it is the most important factors that decided to washing effect.
Working principle:
By setting program (adjustable) based on automatic CIP cleaning system, cleaning fluid, by the pneumatic control valve and pump, the liquid pump delivery to complete the cleaning and reflux circulation cleaning, discharge, recycling the whole cleaning process.Through conductivity detector consisting of PLC and touch screen control system achieved the automatic online cleaning.
System composition:

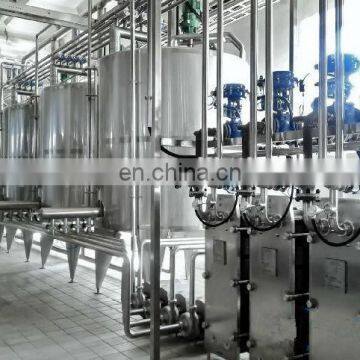

Intelligent CIP system for the central integration system, including the injection water, CIP tank, plate heat exchanger, pipeline filter, pump, pump, temperature control instrument, liquid level control instrument, electrical conductivity detector tube valve parts, PLC, touch screen, control cabinet and system, etc.
According to process specific choice: single tank, double tank, separation, you can also choose to intelligent type and manual.
According to function : Fully Automatic style ,semi-automatic style,manual style.
1. Fully-automatic CIP cleaning system:
Automatic CIP cleaning when refers to equipment (tanks, pipes, pumps, valves, etc.) and under the premise of the whole production line without artificial apart, in the closed loop circulation cleaning.
System control parameters:
This system adopt PLC programming control, belt color touch screen operation shows that the whole production process and the control parameters, the cleaning fluid temperature can be set on the tank ph value can be set, the cleaning time can be set, the cleaning sequence can be set, cleaning the backflow ph value can be set, equipped with system fault alarm device.
Working principle of the system:
1. The cleaning fluid flow automatic control
2. Cleaning fluid temperature automatic control
3. The tank liquid level automatic compensation control
4. The tank of the concentration of acid, alkali, automatic compensation
5. Acid, alkali, hot commutation control operation
6. System alarm device.
2. Semi-automatic CIP cleaning system:
Cleaning fluid heating for automatic heating way, through the temperature control instrument set washing temperature, control of steam valve opening amount to limit the amount of steam which make the cleaning fluid to maintain the required temperature;CIP station each jar with automatic alarm level of high and low and instructions;When the concentration of the cleaning fluid to reduce, through artificial addition of strong acid, strong alkali;Cleaning process transformation through the manual operation of the corresponding pipe valves;Artificial filling water tank when the water shortage.
Model | 1000L-10000L | |

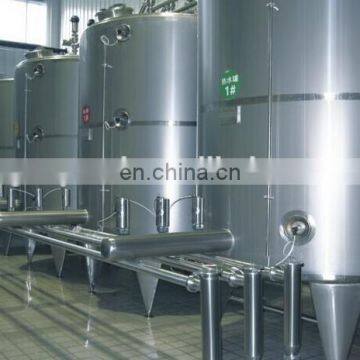

CIP tank category | Soda cans, acid tank, heat water tank, the pitcher, back to the pitcher | |
Cleaning circut | Single loop, double circuit, the three loop, four circuits | |
Heat way | Heating tanks built-in coil pipe, the outer plate type, outer shell and tube heat | |
Configuration and characteristic | Fully-automatic | 1) cleaning fluid flow automatic control (2) cleaning fluid temperature automatic control 3. Tank liquid level automatic compensation control |
semi-automatic | 1. The cleaning fluid temperature automatic control including power distribution cabinets, 2.manual control other actions | |
Manual | 1. manual control other actions | |
3. Conjoined CIP cleaning system :
System can be separately pickling, alkaline cleaning, hot water washing process, also can according to need to prepare the specific cleaning procedures fully automatic cleaning;Can not only effectively will equipment clean quickly, and still can control microbial growth;At the same time according to the customer request configuration semi-automatic and fully automatic control system.
Parameters: |
Model | LTCIP-0.5X3 | LTCIP-0.8X3 | LTCIP-1X3 |
Machine size(m) | 3.2×1.4×1.6 | 5×1.8×2 | ≤0.45(T/H) |
Weight | ≈550kg | ≈650kg | ≈800kg |
manual style parameter | The tank SUS304, the delta 3 mm;Outsourcing the delta 1.5 mm;PU heat preservation, heating coil, single loop, the overall support SUS304, manual control, traffic 10 m3 / h, 32 meters of lift, power 3 kw, operating platform, stainless steel distribution cabinets | ||
Semi-automatic parameter | The tank SUS304, the delta 3 mm;Outsourcing the delta 1.5 mm;PU heat preservation, heating coil, single loop, the overall support SUS304, manual control, traffic 10 m3 / h, 32 meters of lift, power 3 kw, Germany baode imported temperature control system, operation platform, stainless steel distribution cabinets | ||
